Turbo Model
Set the vehicle on a lift.
Disconnect the ground cable from battery.
Lift-up the vehicle.
Disconnect the rear vehicle speed sensor connector.

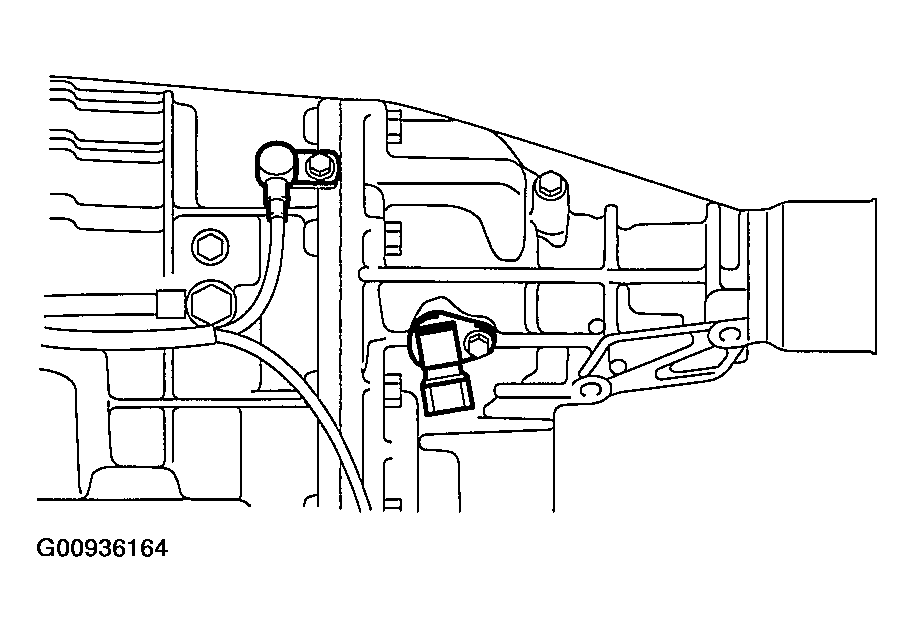

Fig 1: Disconnecting Rear Vehicle Speed Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the rear vehicle speed sensor.

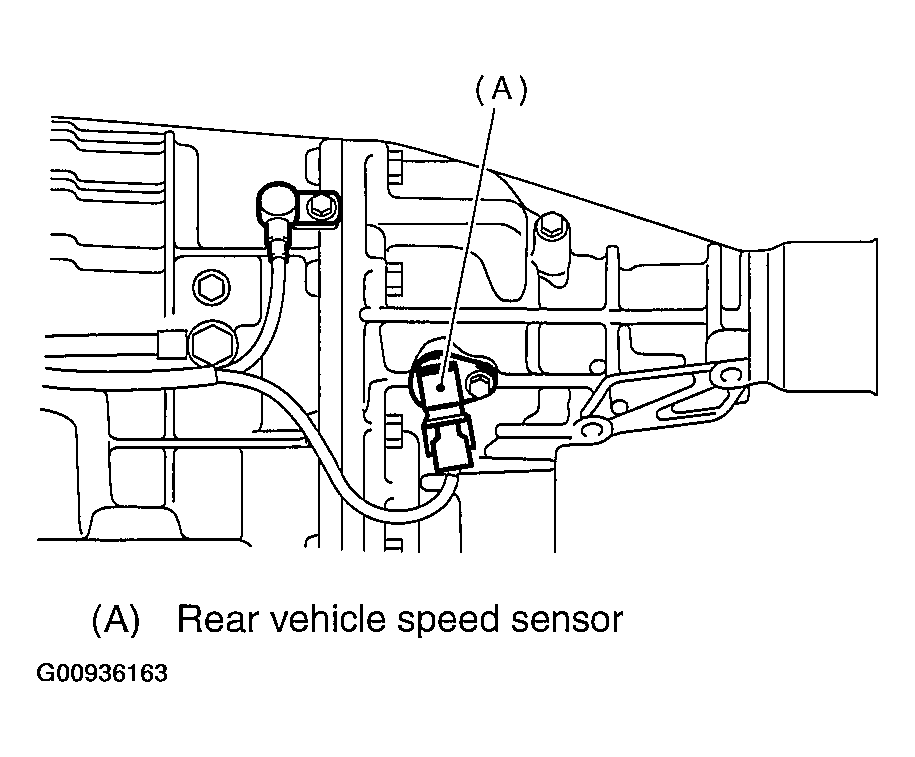

Fig 2: Identifying Rear Vehicle Speed Sensor
Courtesy of SUBARU OF AMERICA, INC.
