Read Current Data

  1. On the << Main Menu >> display screen, select the {Each System Check} and press [YES] key.
  2. On the << System Selection Menu >> display screen, select the {Brake Control System} and press [YES] key.
  3. Press the [YES] key after displayed the information of ABS type.
  4. On the << Brake Control Diagnosis >> display screen, select the {Current Data Display & Save} and press [YES] key.
  5. On the << Data Display Menu >> display screen, select the {Data Display} and press [YES] key.
  6. Using the scroll key, move the display screen up or down until desired data is shown.

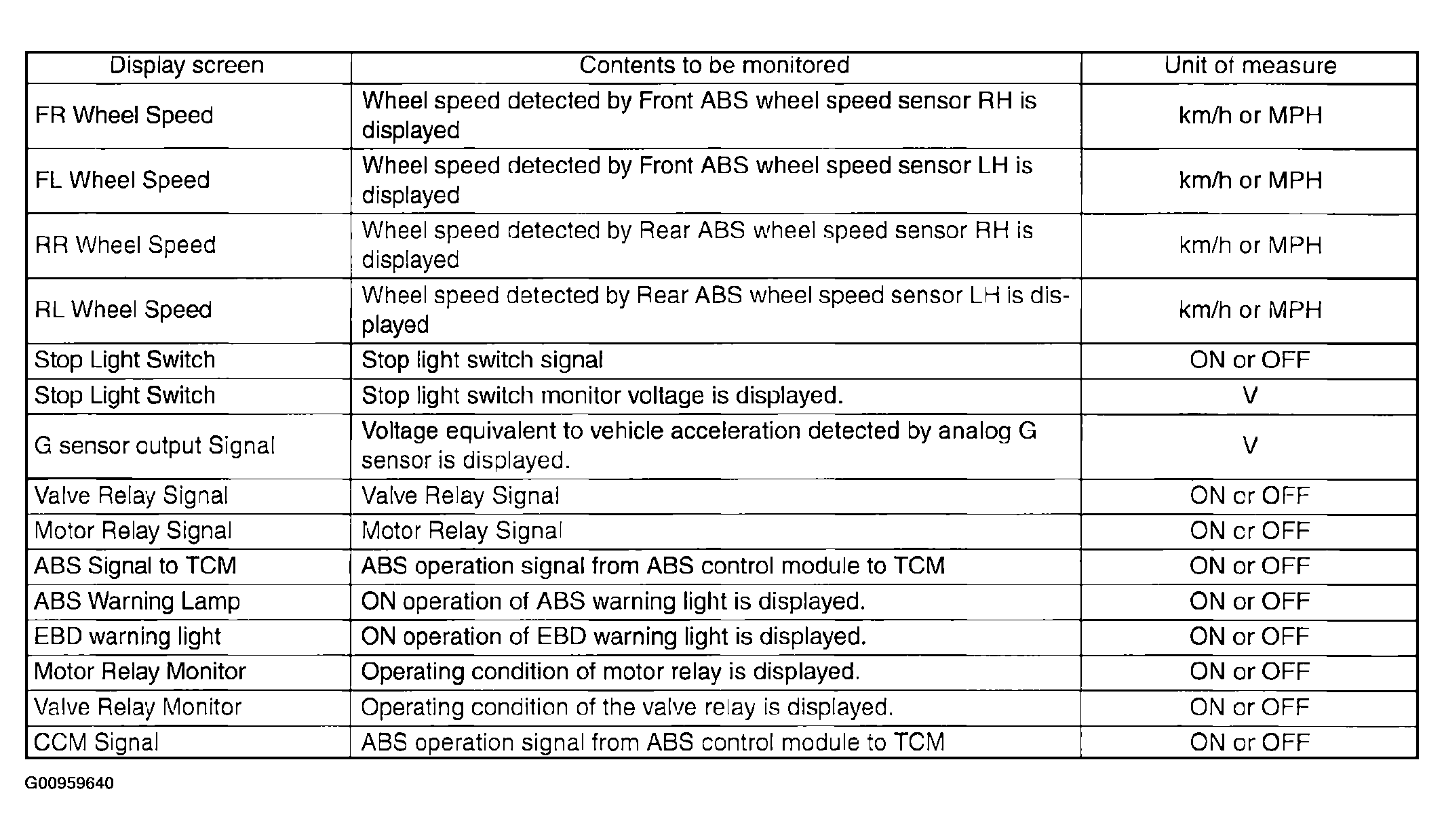

    • A list of the support data is shown in the following table.
      Fig 1: Subaru Select Monitor Display (Read Current Data)
      G00959640Courtesy of SUBARU OF AMERICA, INC.
NOTE: For detailed operation procedure, refer to the OEM - GENERAL INFORMATION .
