RH Side

Release the fuel pressure.
Refer to RELEASING OF FUEL PRESSURE , OPERATION, Fuel.
Open the fuel filler flap lid, and remove the fuel filler cap.
Disconnect the ground cable from battery.

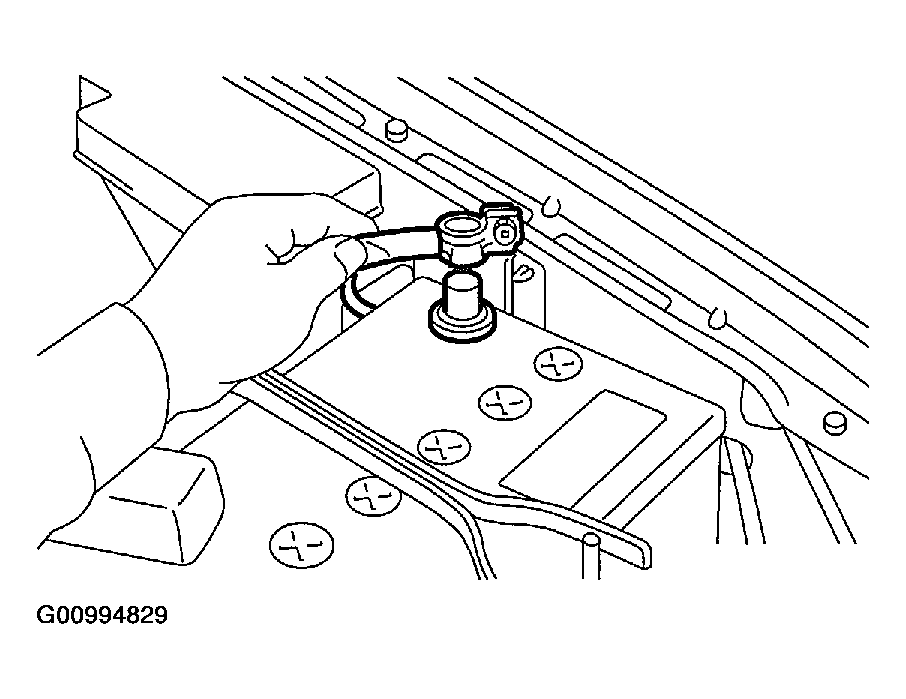

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the resonator chamber. Refer to REMOVAL , Resonator Chamber.
Remove the spark plug cords from the spark plugs (#1 and #3 cylinders).

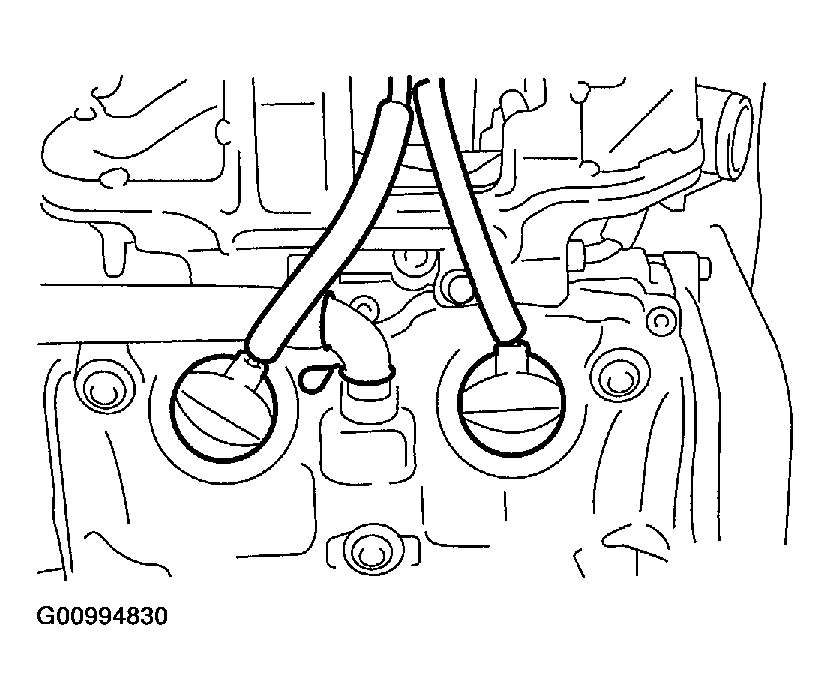

Fig 2: Identifying Spark Plug Cords
Courtesy of SUBARU OF AMERICA, INC.
Remove the power steering pump and reservoir tank from the brackets.
1. Remove the front side V-belt. Refer to REMOVAL REMOVAL, V-belt.
2. Remove the bolts which hold the power steering pipes onto the intake manifold protector.

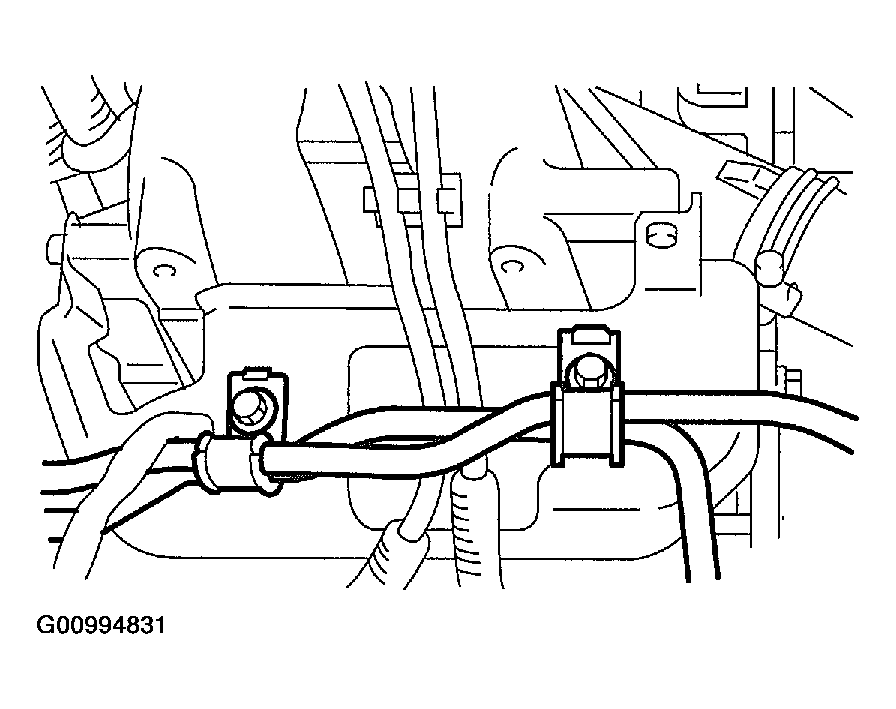

  Fig 3: Identifying Bolts & Power Steering Pipes
  Courtesy of SUBARU OF AMERICA, INC.

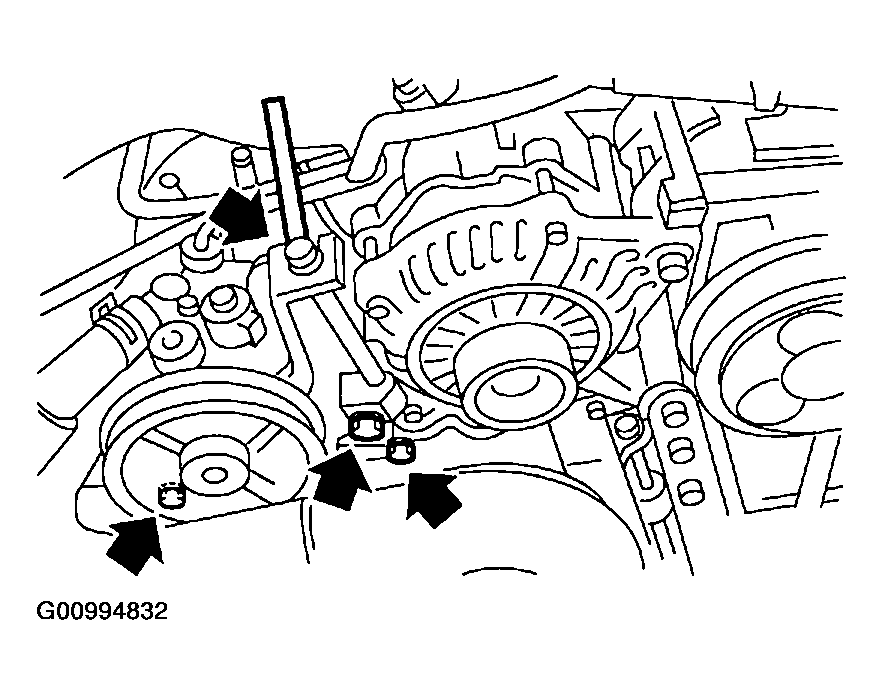

3. Remove the bolts which install the power steering pump to the bracket.

  Fig 4: Identifying Bolts & Power Steering Pump
  Courtesy of SUBARU OF AMERICA, INC.

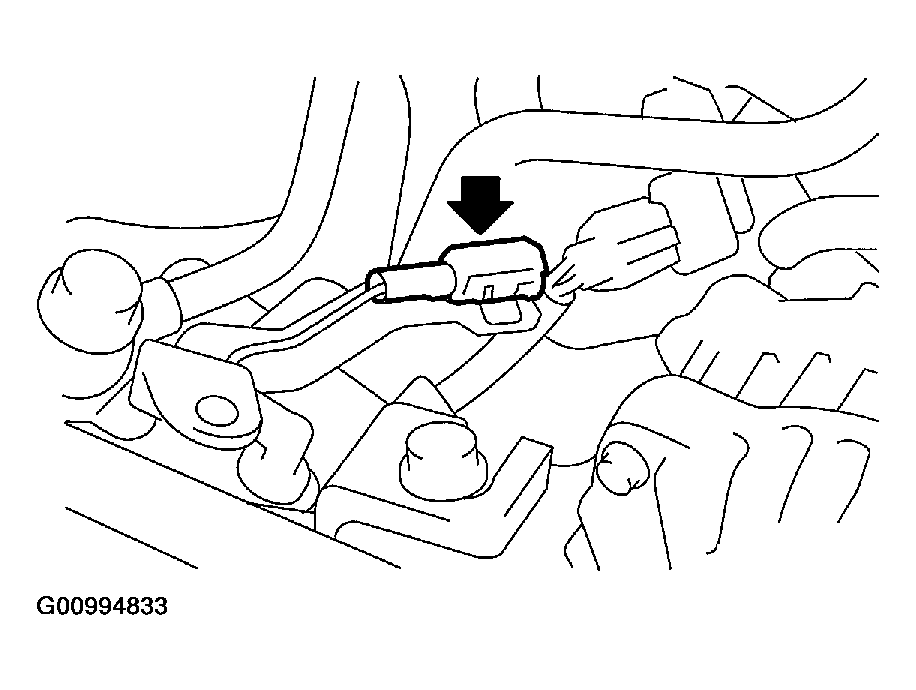

4. Disconnect the connector from the power steering pump switch.

  Fig 5: Disconnecting Connector From Power Steering Pump Switch
  Courtesy of SUBARU OF AMERICA, INC.

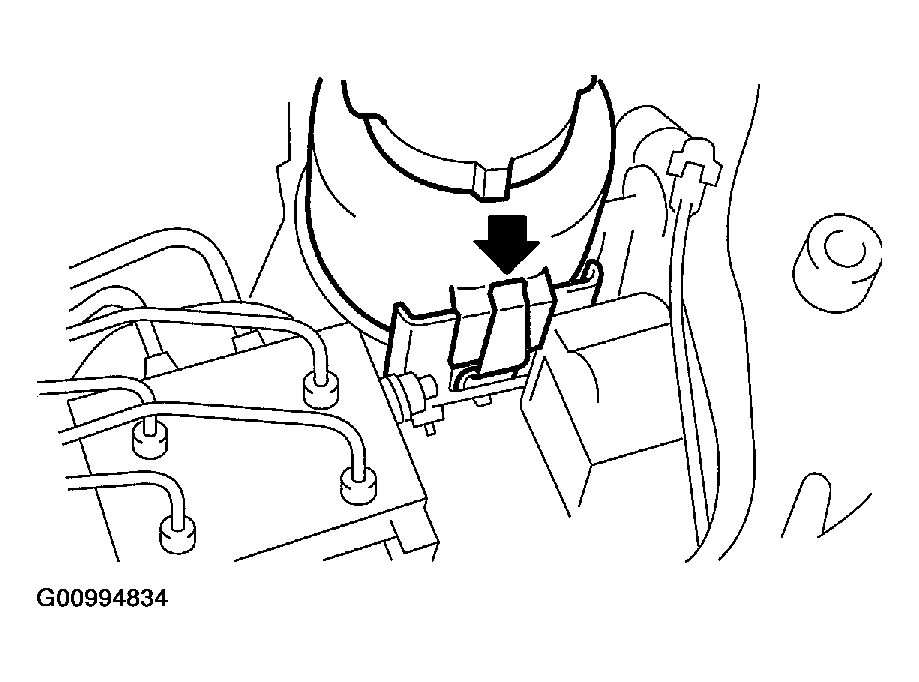

5. Remove the power steering tank from the bracket by pulling it upwards.

  Fig 6: Identifying Power Steering Tank
  Courtesy of SUBARU OF AMERICA, INC.

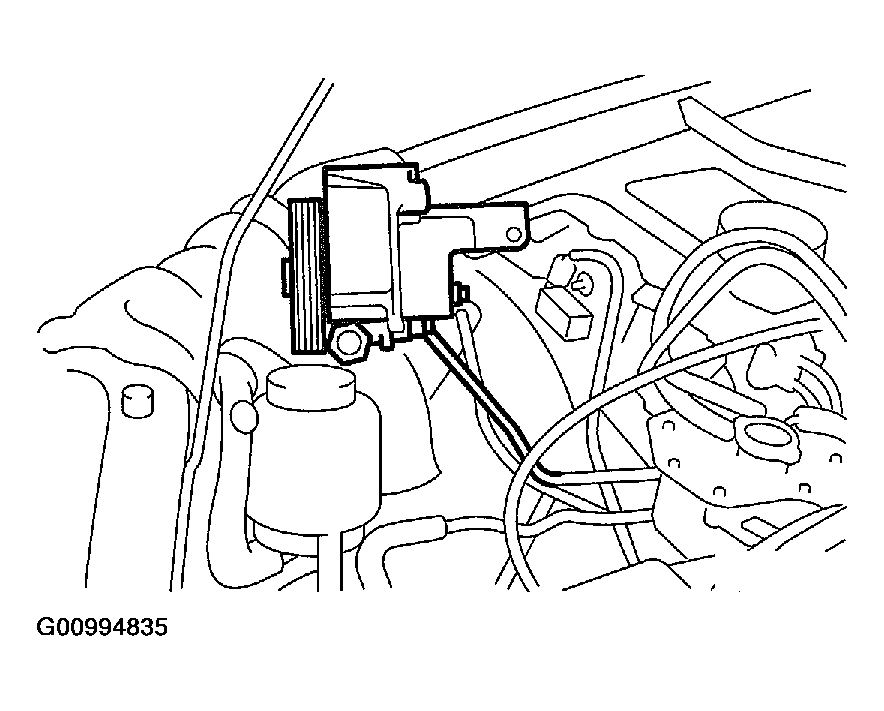

6. Place the power steering pump and reservoir tank on the right side wheel apron.

  Fig 7: Placing Power Steering Pump & Reservoir Tank On Right Side Wheel Apron
  Courtesy of SUBARU OF AMERICA, INC.

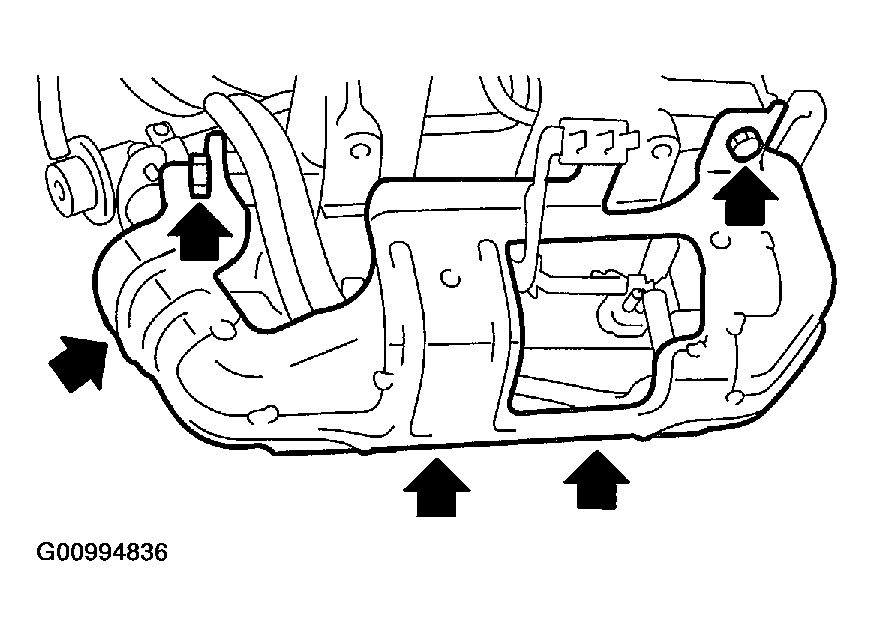

7. Remove the fuel pipe protector RH.

  Fig 8: Identifying Fuel Pipe Protector RH
  Courtesy of SUBARU OF AMERICA, INC.
8. Disconnect the connector from fuel injector.

  Fig 9: Disconnecting Connector From Fuel Injector
  Courtesy of SUBARU OF AMERICA, INC.

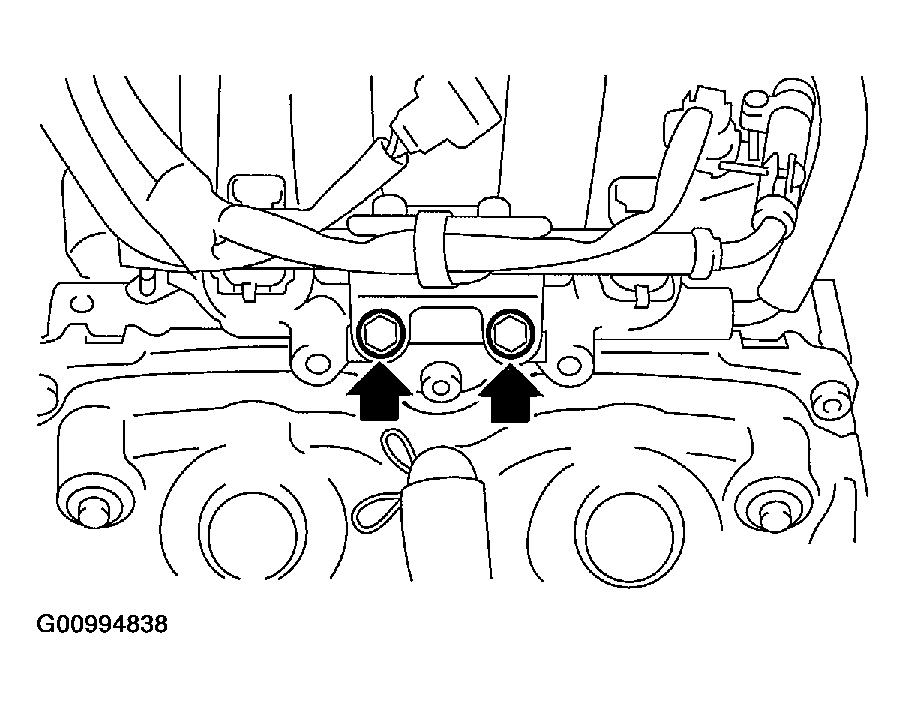

9. Remove the bolt which holds the injector pipe to the intake manifold.

  Fig 10: Identifying Bolt & Injector Pipe (1 Of 2)
  Courtesy of SUBARU OF AMERICA, INC.

  Fig 11: Identifying Bolt & Injector Pipe (2 Of 2)
  Courtesy of SUBARU OF AMERICA, INC.
10. Remove the fuel injector from the intake manifold.
  1. Remove the fuel injector securing clip.

    Fig 12: Identifying Fuel Injector Securing Clip
    Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the fuel injector while lifting up the fuel injector pipe.

    Fig 13: Identifying Fuel Injector
    Courtesy of SUBARU OF AMERICA, INC.
