Manifold Absolute Pressure Sensor: Removal

Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from the manifold absolute pressure sensor.

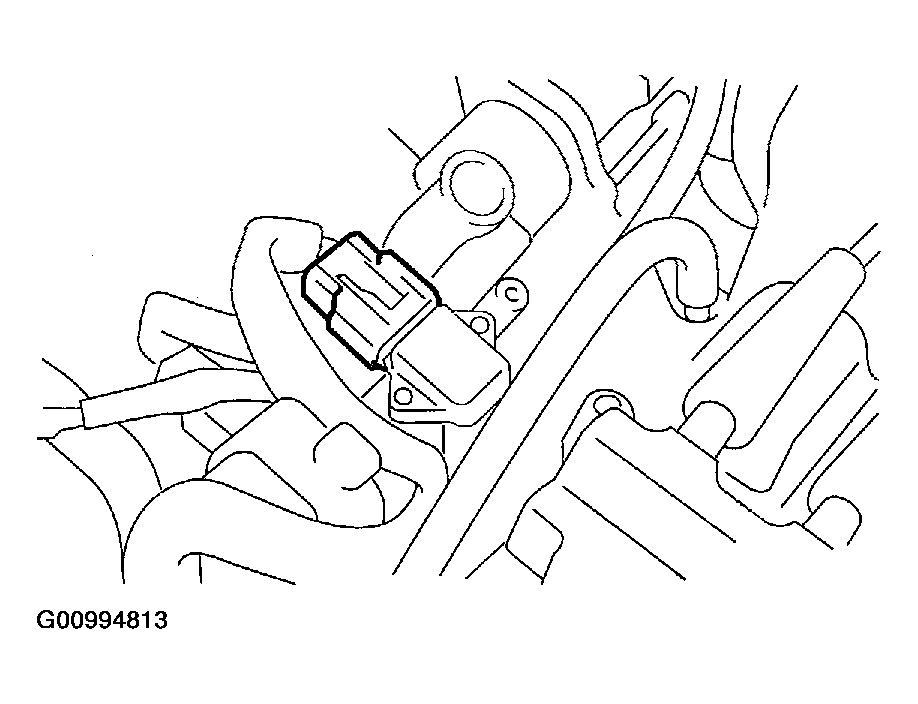

Fig 2: Disconnecting Connector From Manifold Absolute Pressure Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove the manifold absolute pressure sensor.

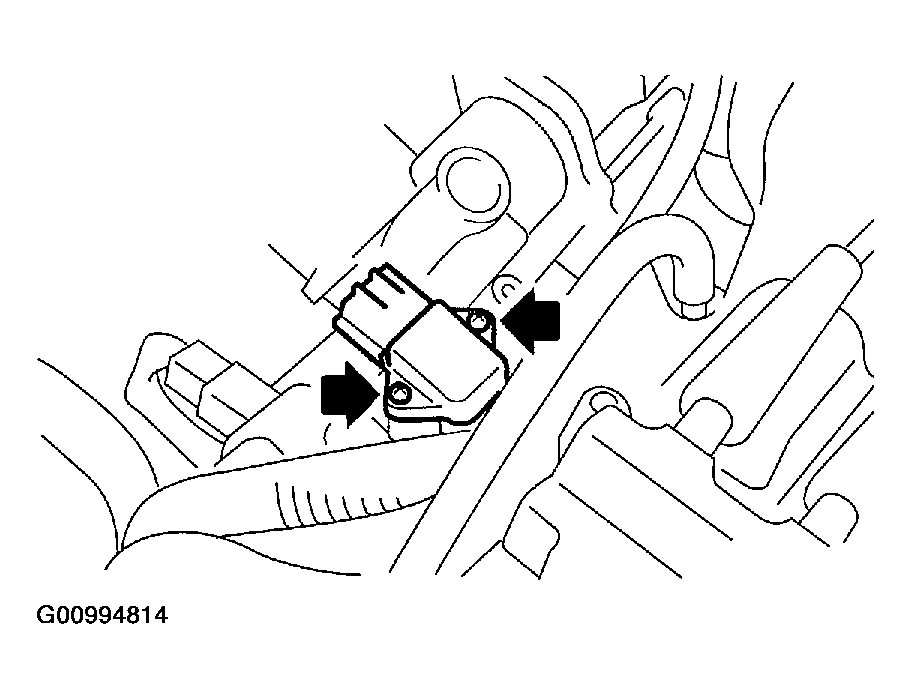

Fig 3: Identifying Manifold Absolute Pressure Sensor
Courtesy of SUBARU OF AMERICA, INC.
