Engine (Diagnostics) (H4SO)
>>
Diagnostics for Engine Starting Failure
>>
Control Module Power Supply And Ground Line
>>
Wiring Diagram:
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Wiring Diagram:

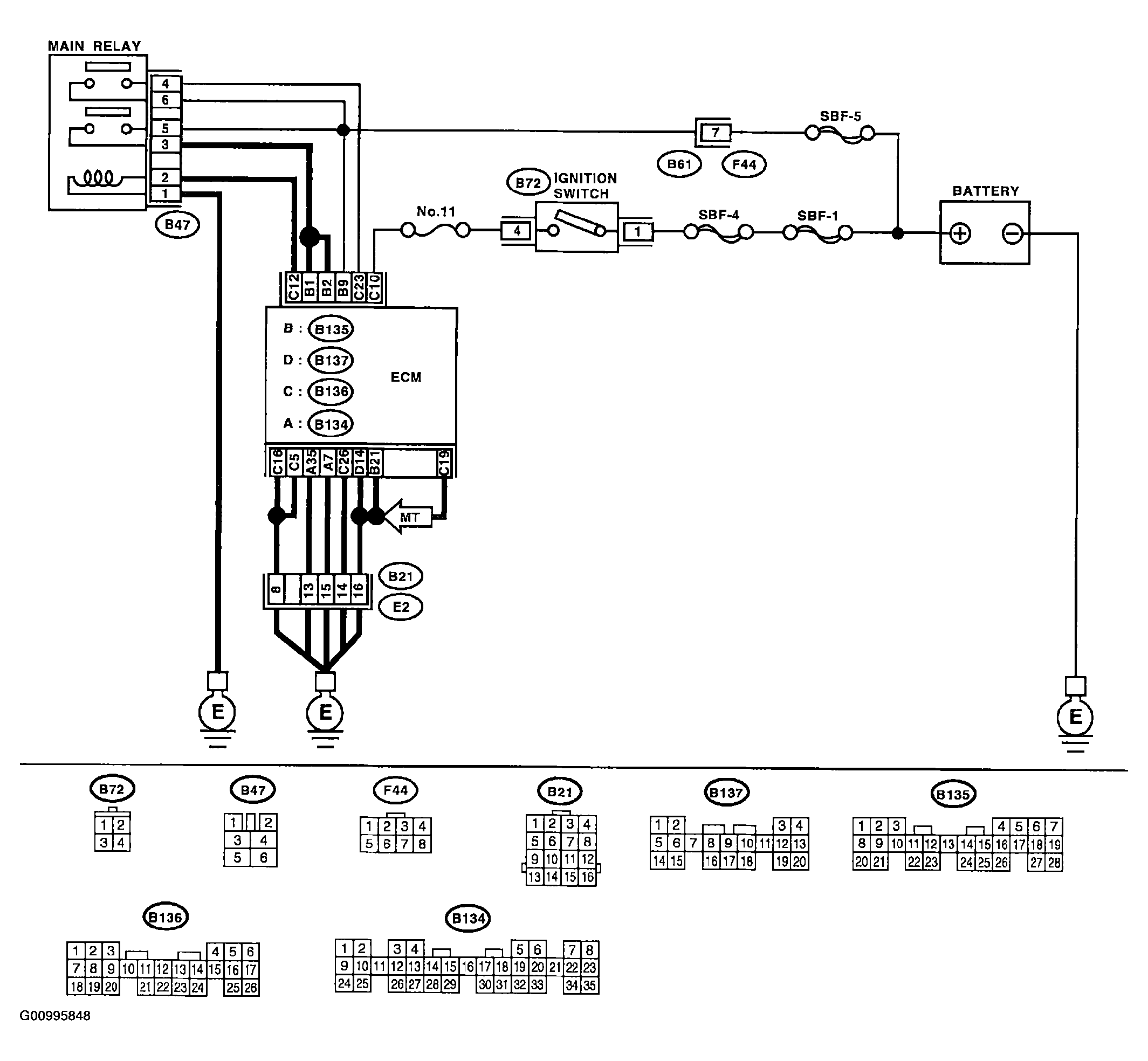

Fig 1: Control Module Power Supply & Ground Line Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
