Read Freeze Frame Data For Engine (OBD Mode)

On << Main Menu >> display screen, select the {Each System Check} and press the [YES] key.
On << System Selection Menu >> display screen, select the {Engine Control System} and press the [YES] key.
Press the [YES] key after the information of engine type is displayed.
On << Engine Diagnosis >> display screen, select the {OBD System} and press the [YES] key.
On << OBD Menu >> display screen, select the {Freeze Frame Data} and press the [YES] key.
- A list of support data is shown in the following table.

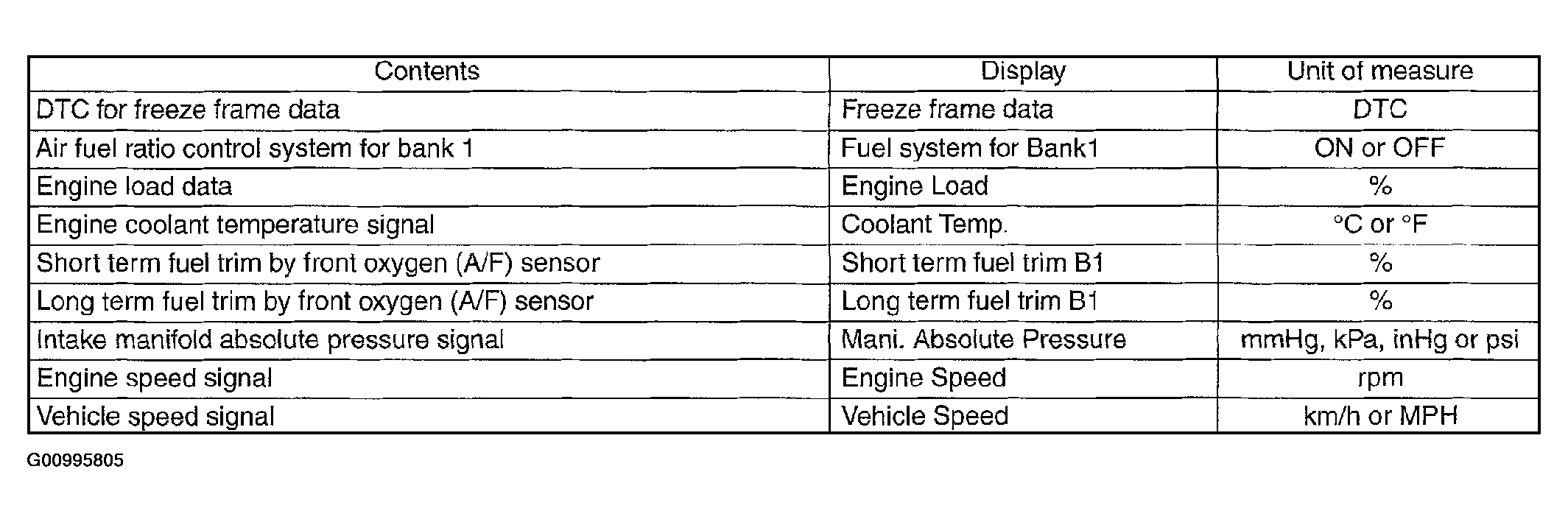

  Fig 1: Reading Freeze Frame Data For Engine Chart (OBD Mode)
  Courtesy of SUBARU OF AMERICA, INC.

  NOTE: For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL.
