Throttle Body: Removal

Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the air cleaner case. Refer to REMOVAL , Air Cleaner Case.

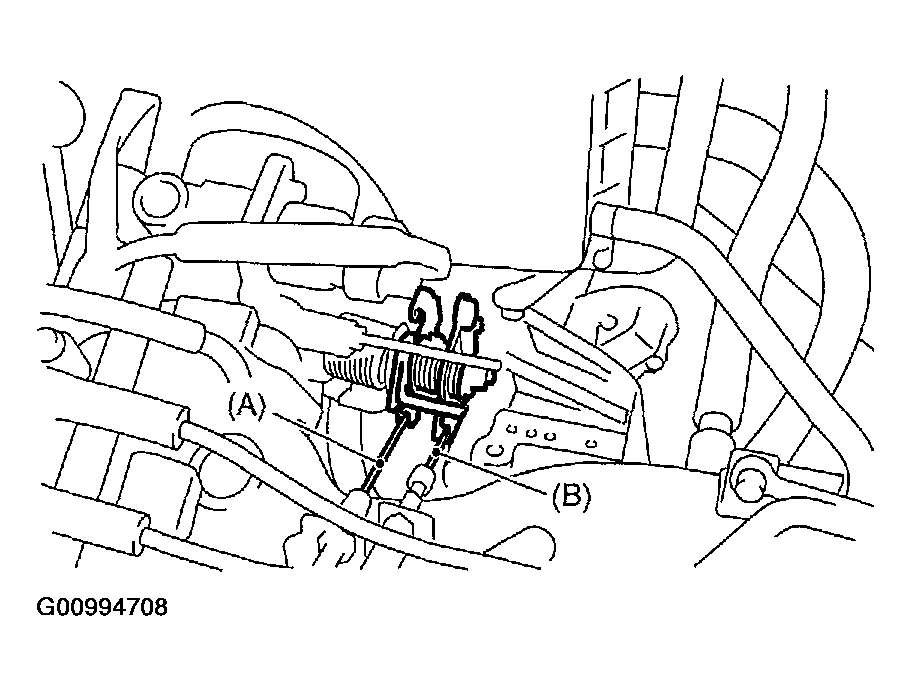

Disconnect the accelerator cable (A).
Disconnect the cruise control cable (B). (With cruise control model)

Fig 2: Disconnecting Cruise Control Cable
Courtesy of SUBARU OF AMERICA, INC.

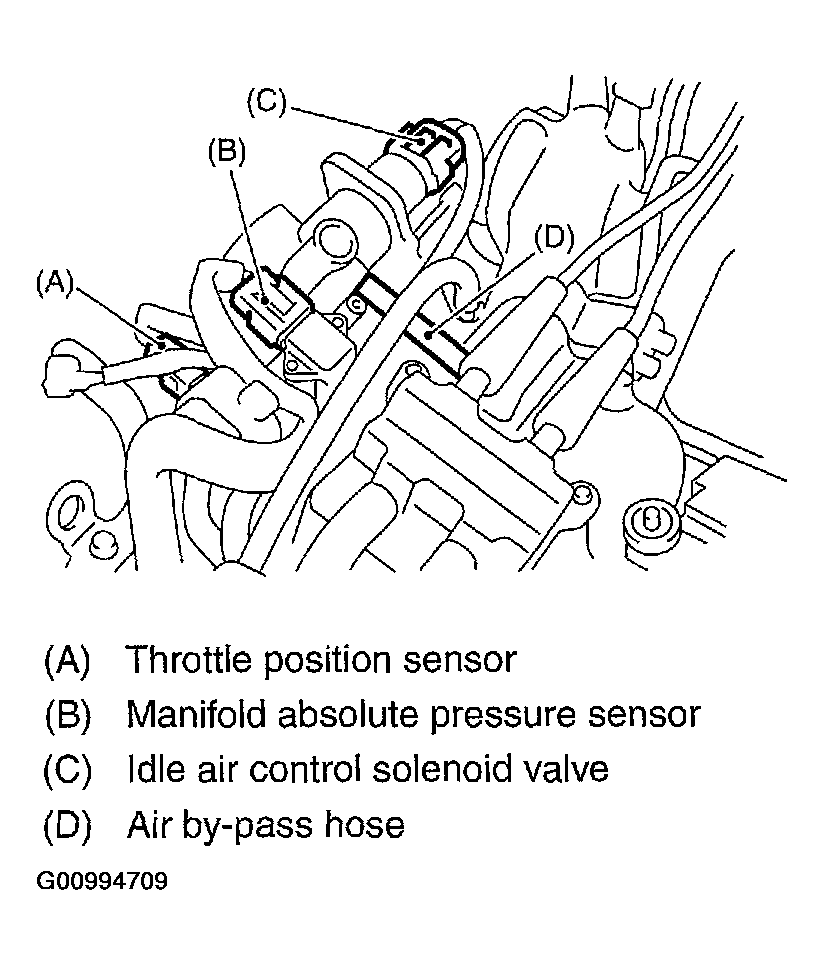

Disconnect the connectors from idle air control solenoid valve, throttle position sensor and manifold absolute pressure sensor.
Disconnect the air by-pass hose from the throttle body.

Fig 3: Disconnecting Air By-Pass Hose From Throttle Body
Courtesy of SUBARU OF AMERICA, INC.

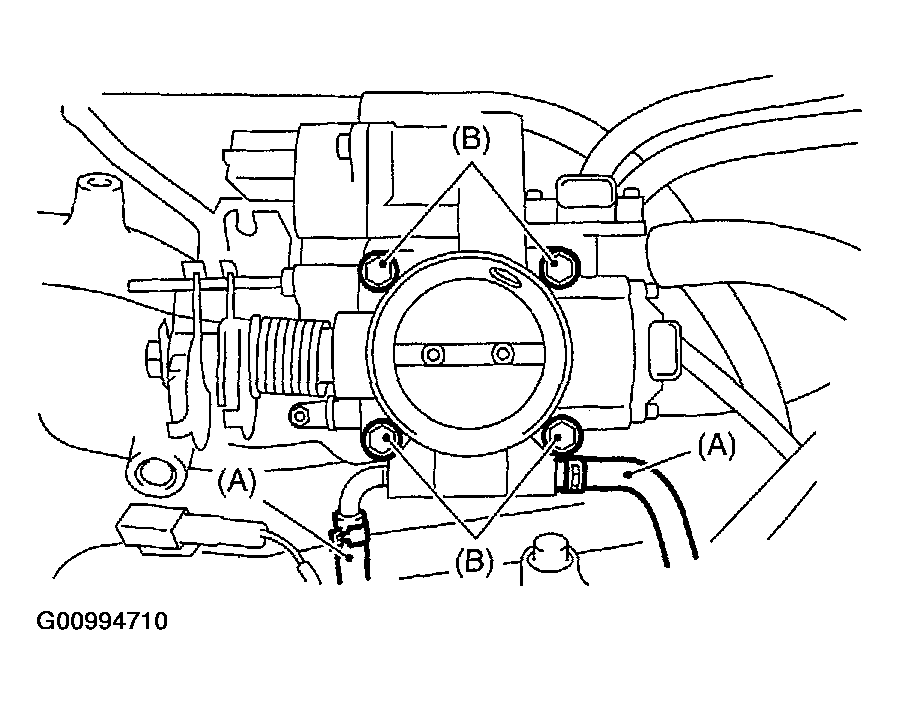

Disconnect the engine coolant hoses (A) from the throttle body.
Remove the bolts (B) which install throttle body to the intake manifold.

Fig 4: Identifying Bolts & Throttle Body
Courtesy of SUBARU OF AMERICA, INC.
