Check Door Switch

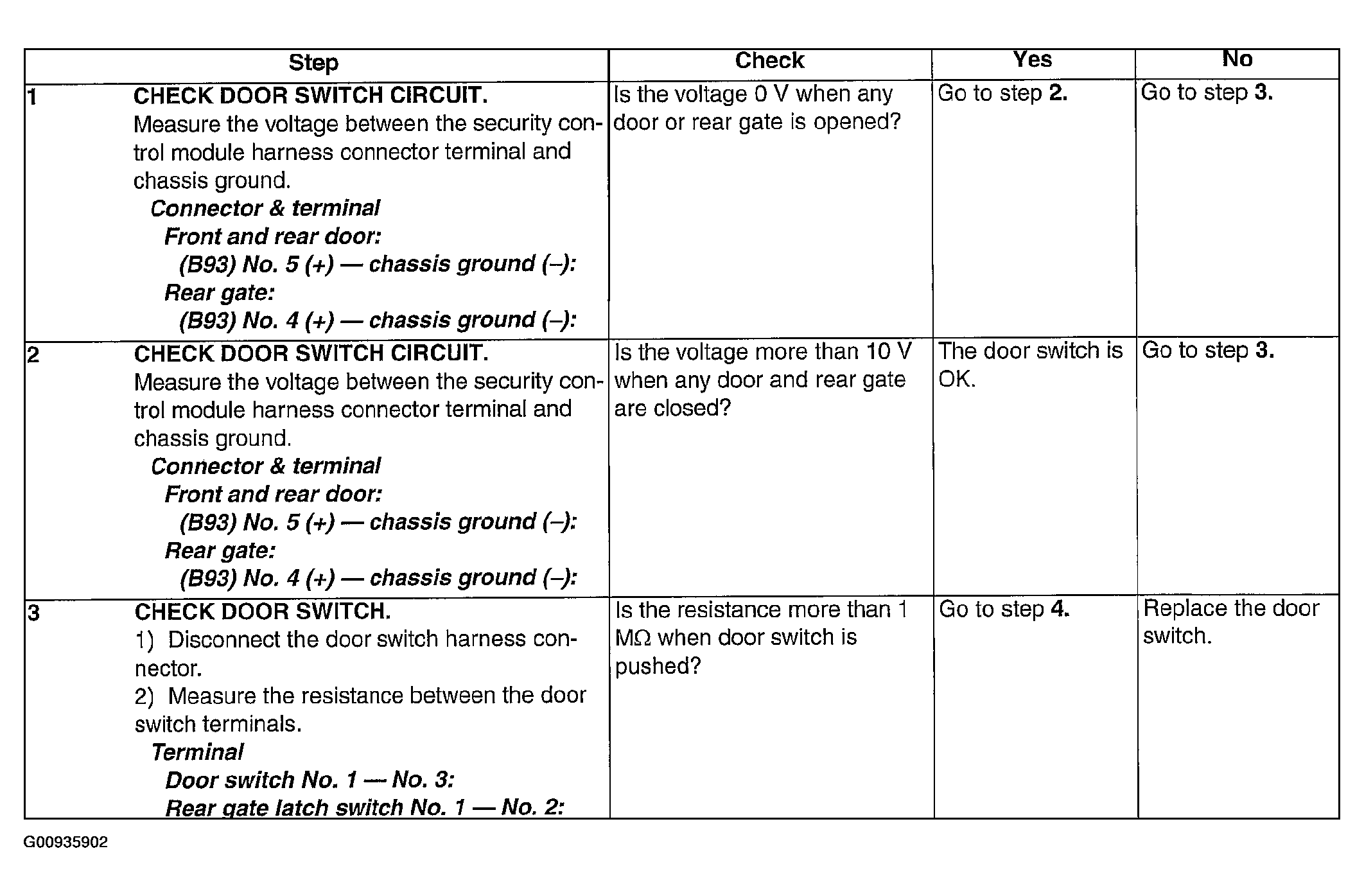

Fig 1: Check Door Switch Chart (1 Of 2)
G00935902Courtesy of SUBARU OF AMERICA, INC.

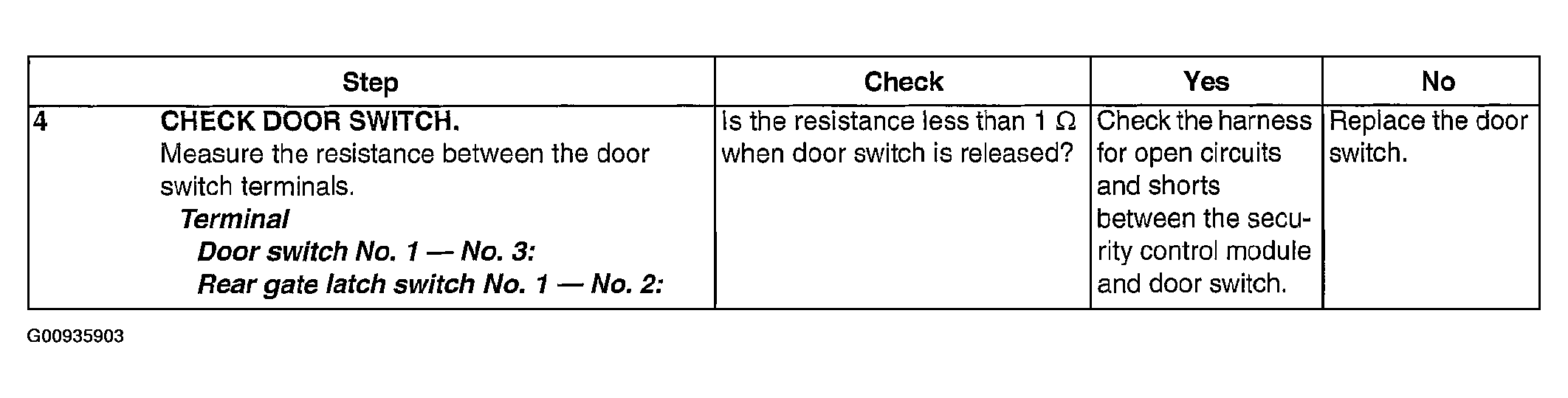

Fig 2: Check Door Switch Chart (2 Of 2)
G00935903Courtesy of SUBARU OF AMERICA, INC.
