Engine Cooling System: General Description: Specifications

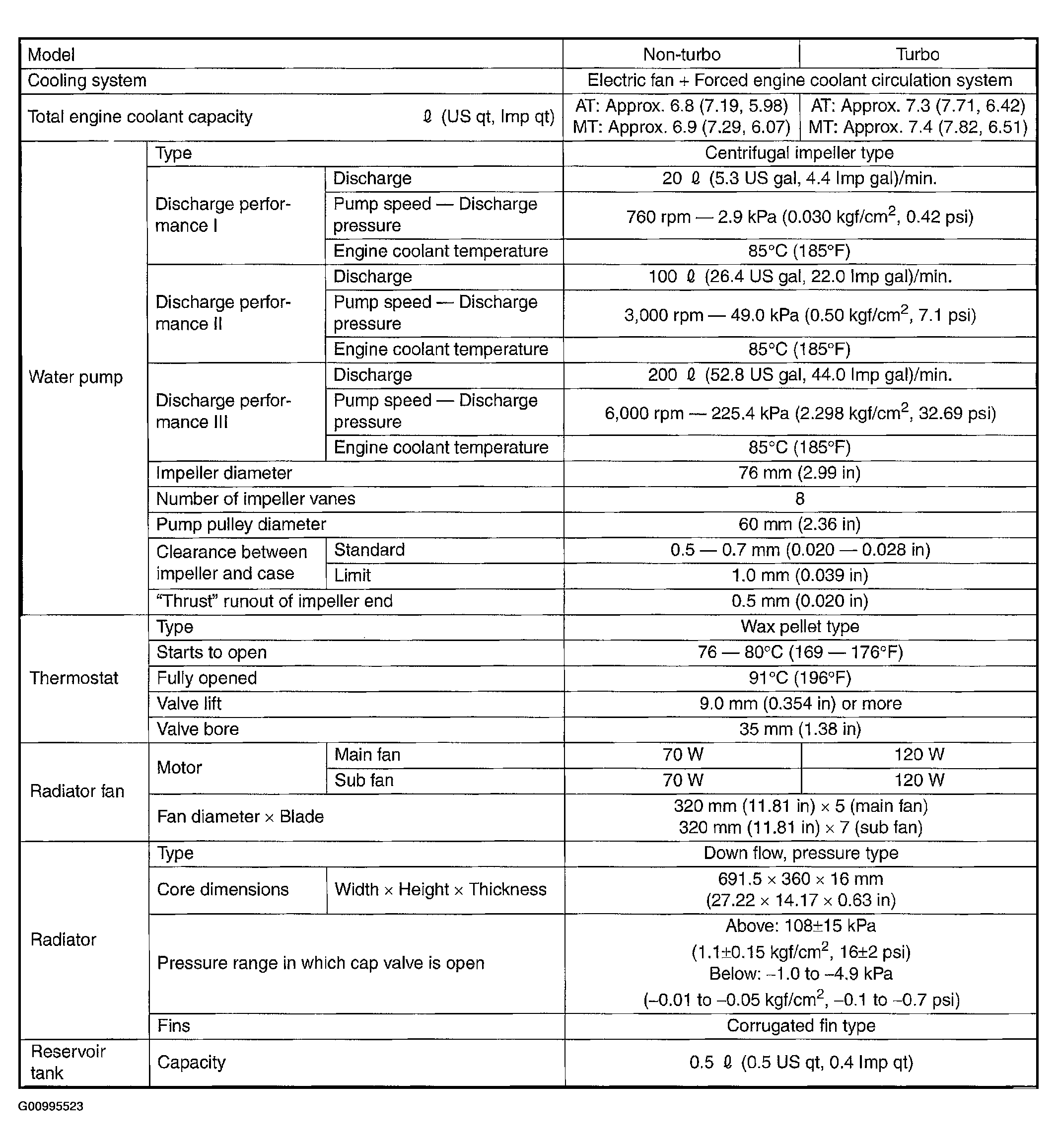

Fig 1: General Description Specifications Chart
G00995523Courtesy of SUBARU OF AMERICA, INC.
