Non-Turbo Model

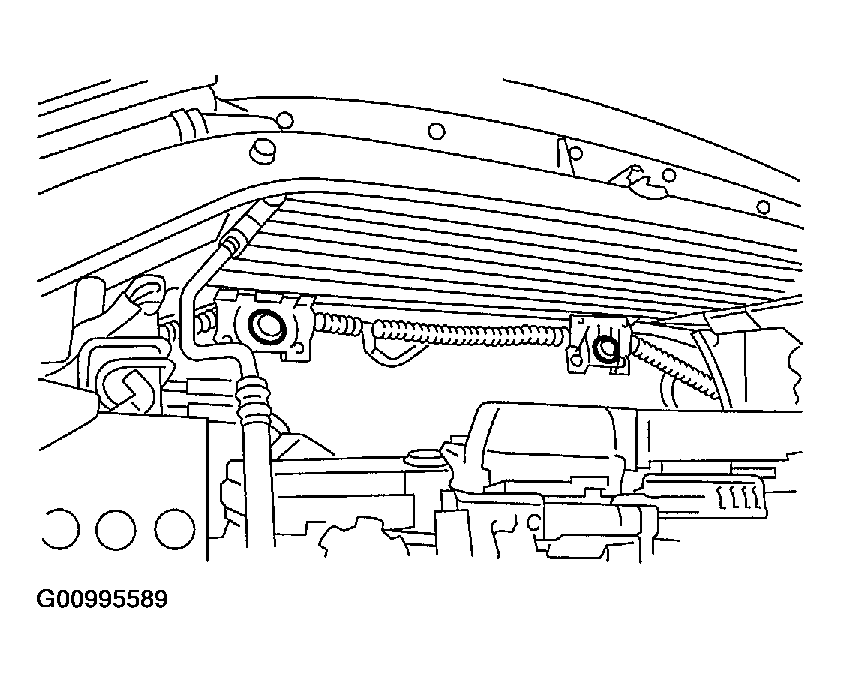

Attach the radiator lower cushions to holes on the vehicle.

Fig 1: Attaching Radiator Lower Cushions To Holes On Vehicle
Courtesy of SUBARU OF AMERICA, INC.
Install the radiator to vehicle.
NOTE: Fit pins on the lower side of radiator into cushions on the body side.

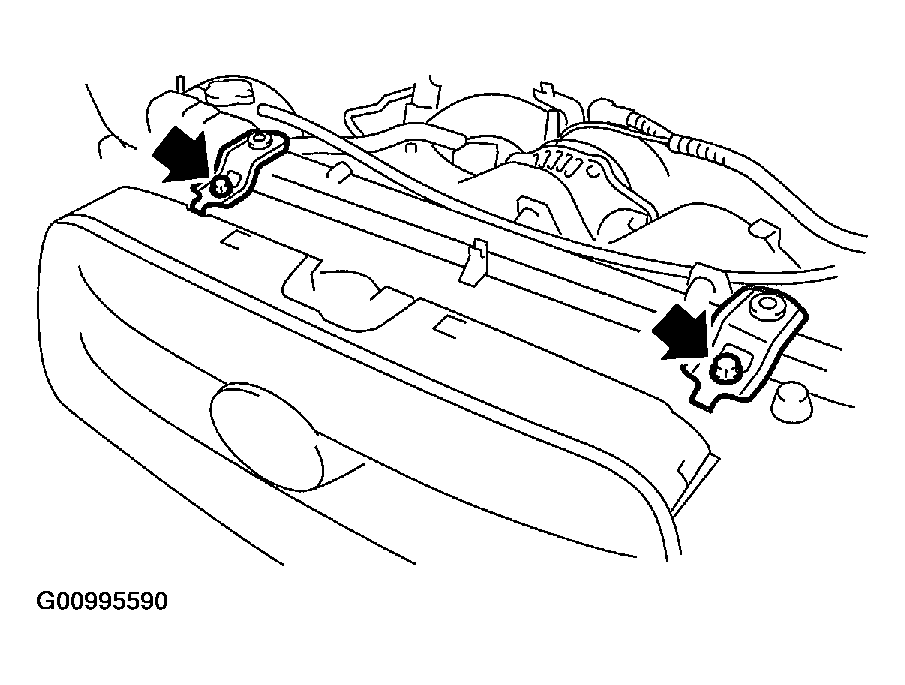

Install the radiator upper brackets and tighten bolts.
Tightening torque: 18 N.m (1.8 kgf-m, 13.0 ft-lb)

Fig 2: Installing Radiator Upper Brackets & Tightening Bolts
Courtesy of SUBARU OF AMERICA, INC.
Connect the power steering hose to radiator.

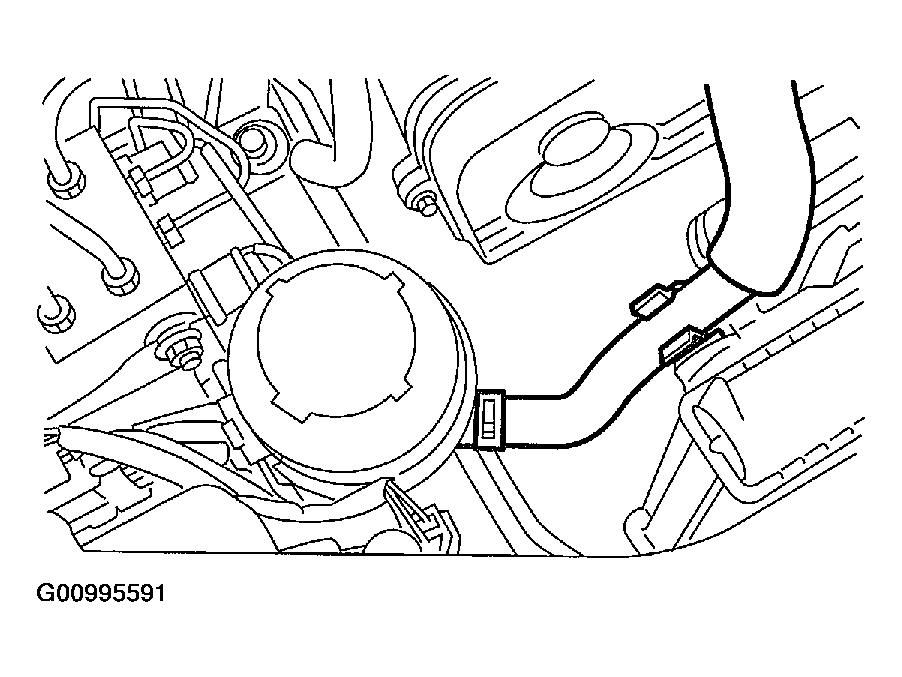

Fig 3: Connecting Power Steering Hose To Radiator
Courtesy of SUBARU OF AMERICA, INC.

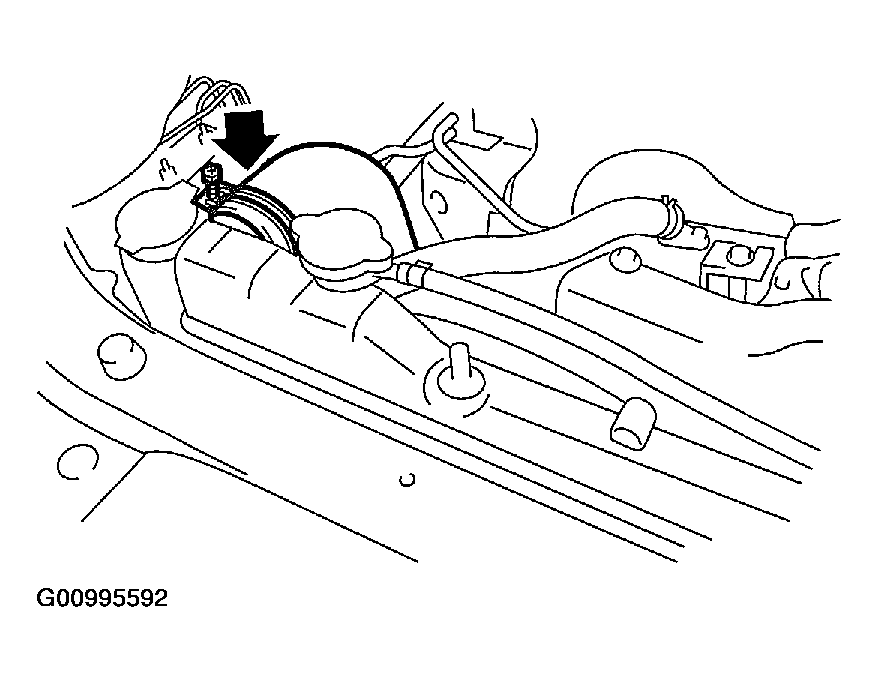

Connect the radiator inlet hose.

Fig 4: Connecting Radiator Inlet Hose
Courtesy of SUBARU OF AMERICA, INC.

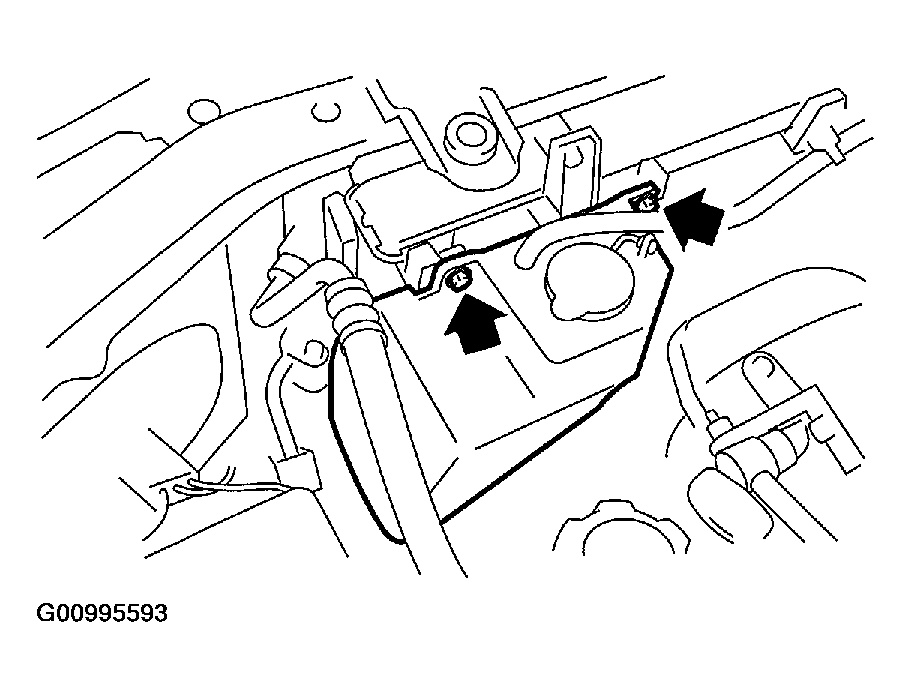

Install the reservoir tank.
Tightening torque: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

Fig 5: Installing Reservoir Tank
Courtesy of SUBARU OF AMERICA, INC.
Connect the overflow hose.
Lift-up the vehicle.
Connect the ATF cooler hoses. (AT model)

Fig 6: Connecting ATF Cooler Hoses (AT Model)
Courtesy of SUBARU OF AMERICA, INC.
Connect the radiator outlet hose.

Fig 7: Connecting Radiator Outlet Hose
Courtesy of SUBARU OF AMERICA, INC.

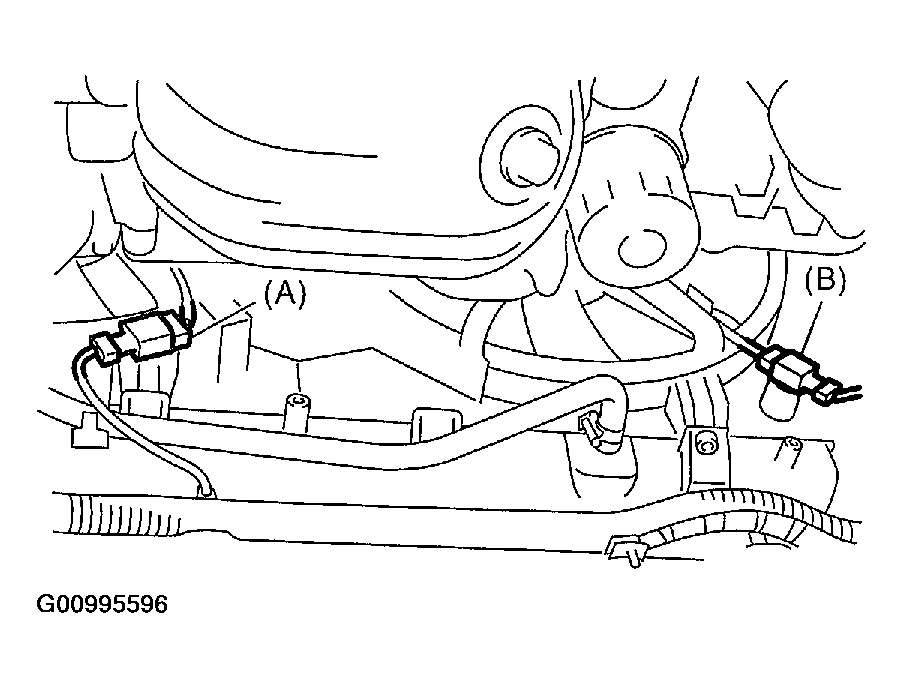

Connect the connectors to radiator main fan motor (A) and sub fan motor (B).

Fig 8: Connecting Connectors To Radiator Main Fan Motor
Courtesy of SUBARU OF AMERICA, INC.
Install the under cover.
Lower the vehicle.
Connect the battery ground cable to battery.

Fig 9: Connecting Battery Ground Cable To Battery
Courtesy of SUBARU OF AMERICA, INC.
Fill engine coolant. Refer to FILLING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant.
Check the ATF level. Refer to INSPECTION , Automatic Transmission Fluid.
