Camshaft Position Sensor: Removal

  1. Disconnect the ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G00966331Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the connector from the camshaft position sensor RH.
  3. Remove the camshaft position sensor RH from the backside of cylinder head.

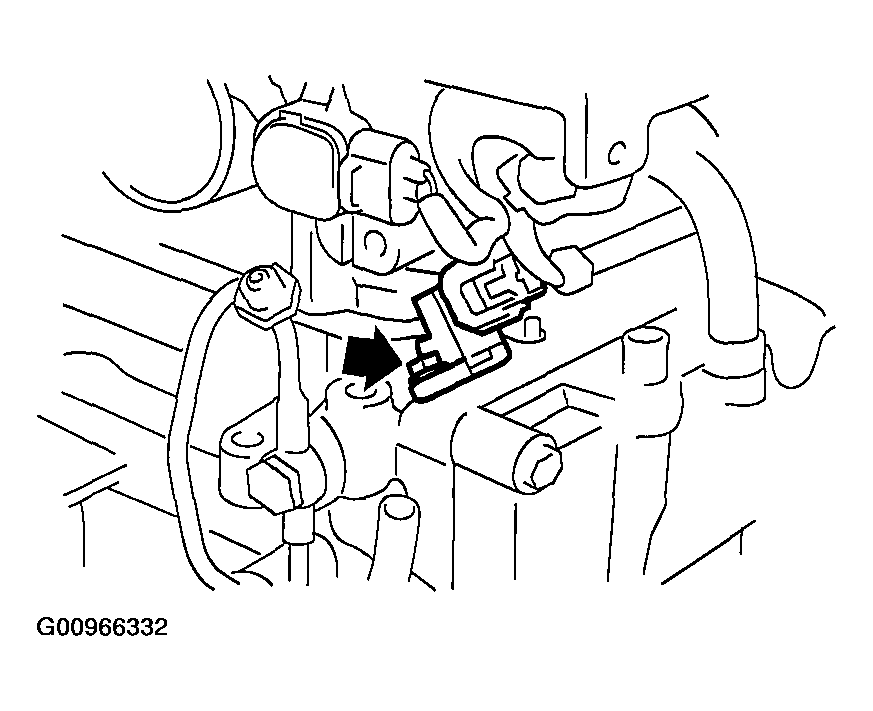

    Fig 2: Identifying Camshaft Position Sensor RH
    G00966332Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the camshaft position sensor LH same as RH side.
