Fuel Pump Relay: Removal

Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the glove box. < Ref. to REMOVAL , Glove Box . >
Remove the bolt which holds fuel pump relay bracket on the body.
Disconnect the connector from the fuel pump relay.

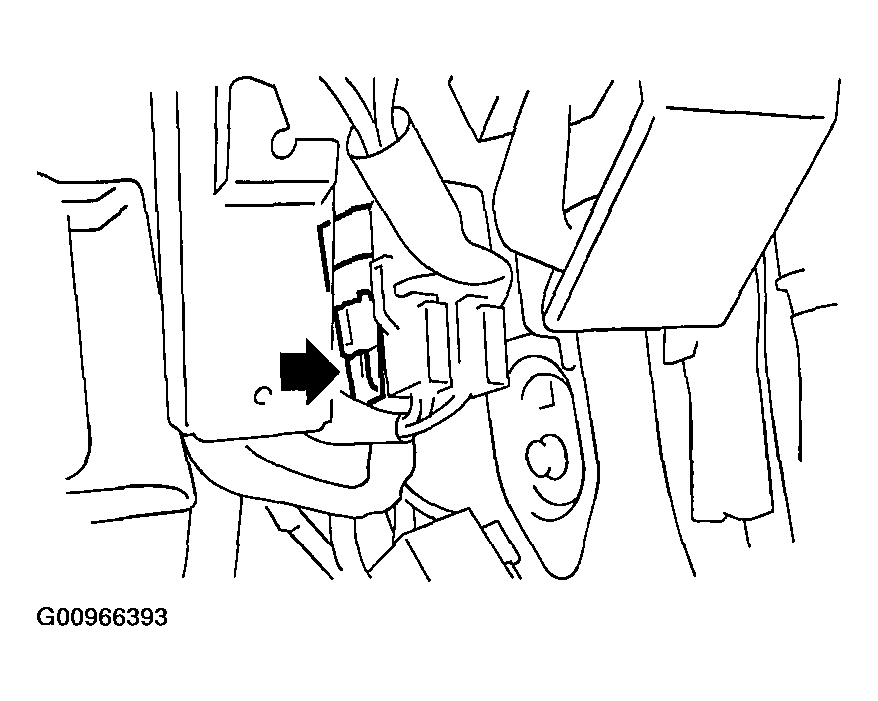

Fig 2: Identifying Fuel Pump Relay
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel pump relay from the mounting bracket.
