Fuel filler Pipe: Disassembly

Move the clip, and disconnect the evaporation hose from the joint pipe.

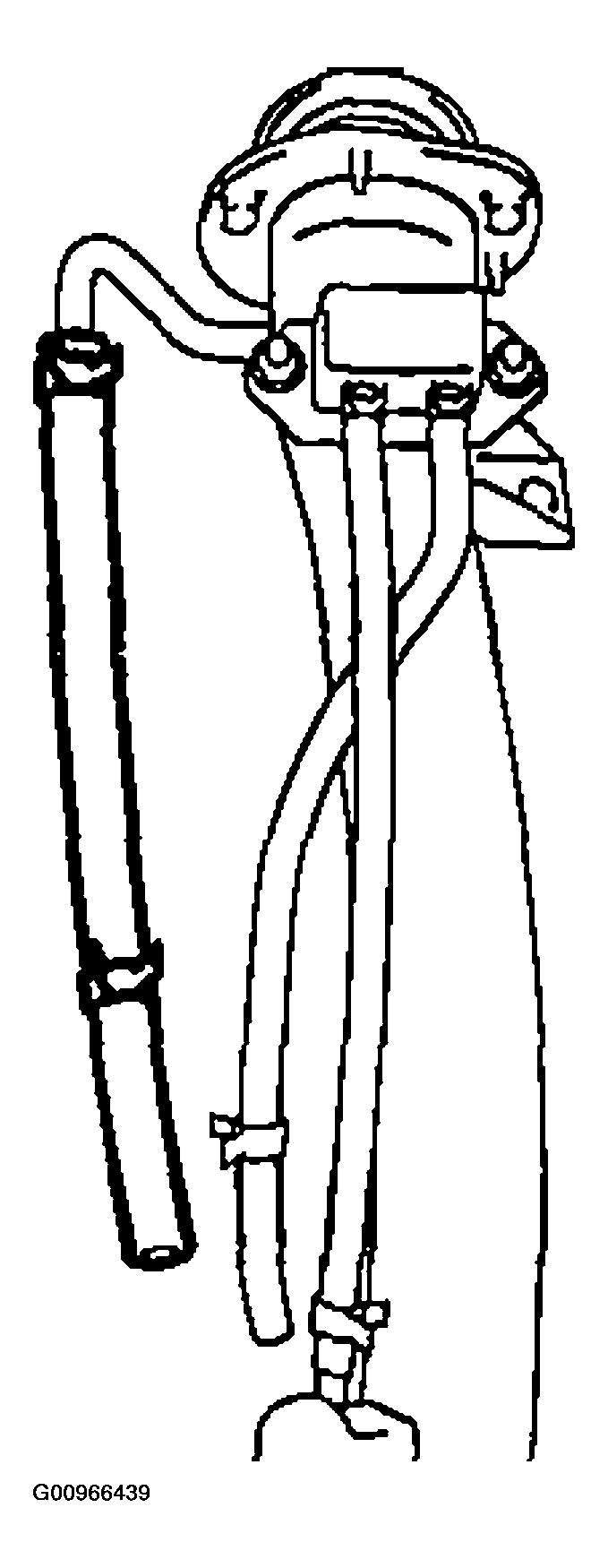

Fig 1: Identifying Evaporation Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which installs the joint pipe on the fuel filler pipe.

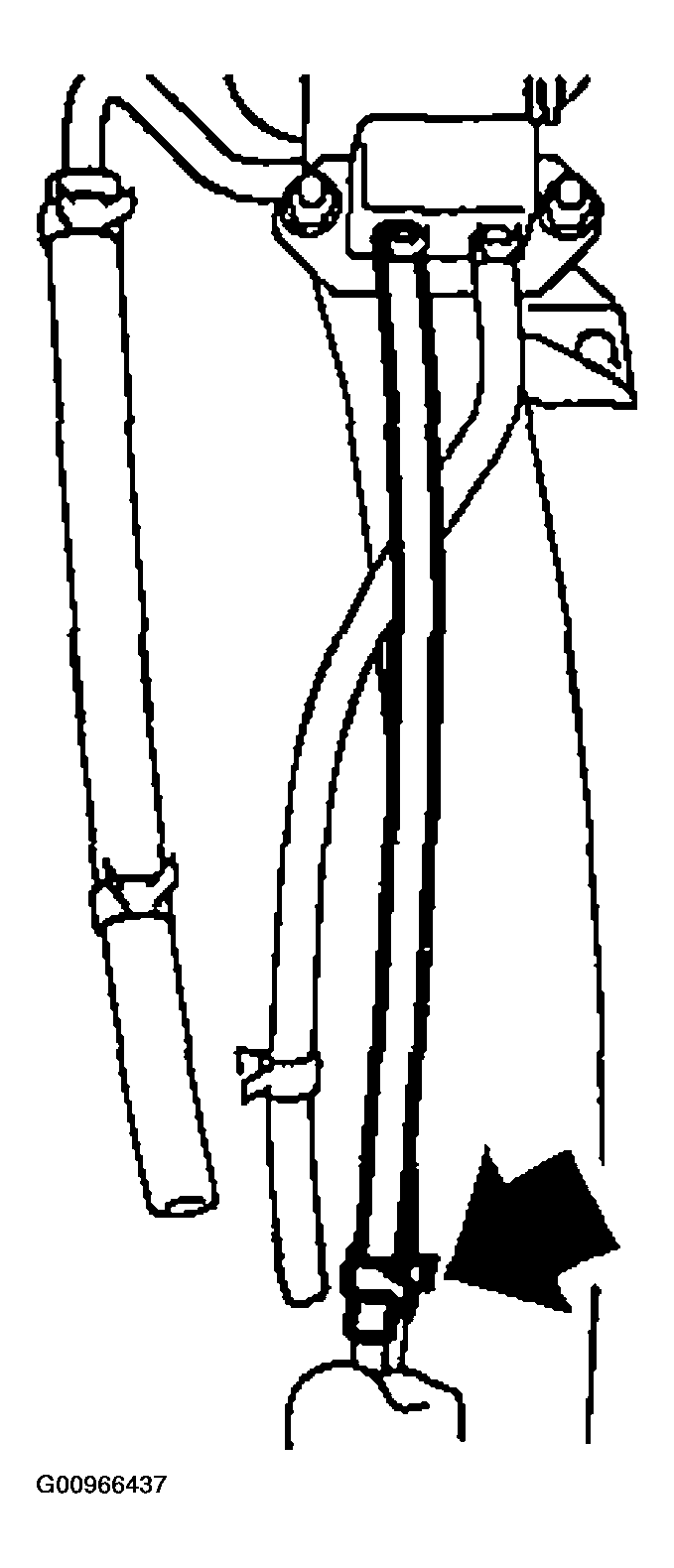

Fig 2: Identifying Joint Pipe & Fuel Filler Pipe
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the evaporation hose from the fuel filler pipe.

Fig 3: Identifying Evaporation Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove the shut valve from the fuel filler pipe. < Ref. to REMOVAL , Shut Valve . >
