Input Signals

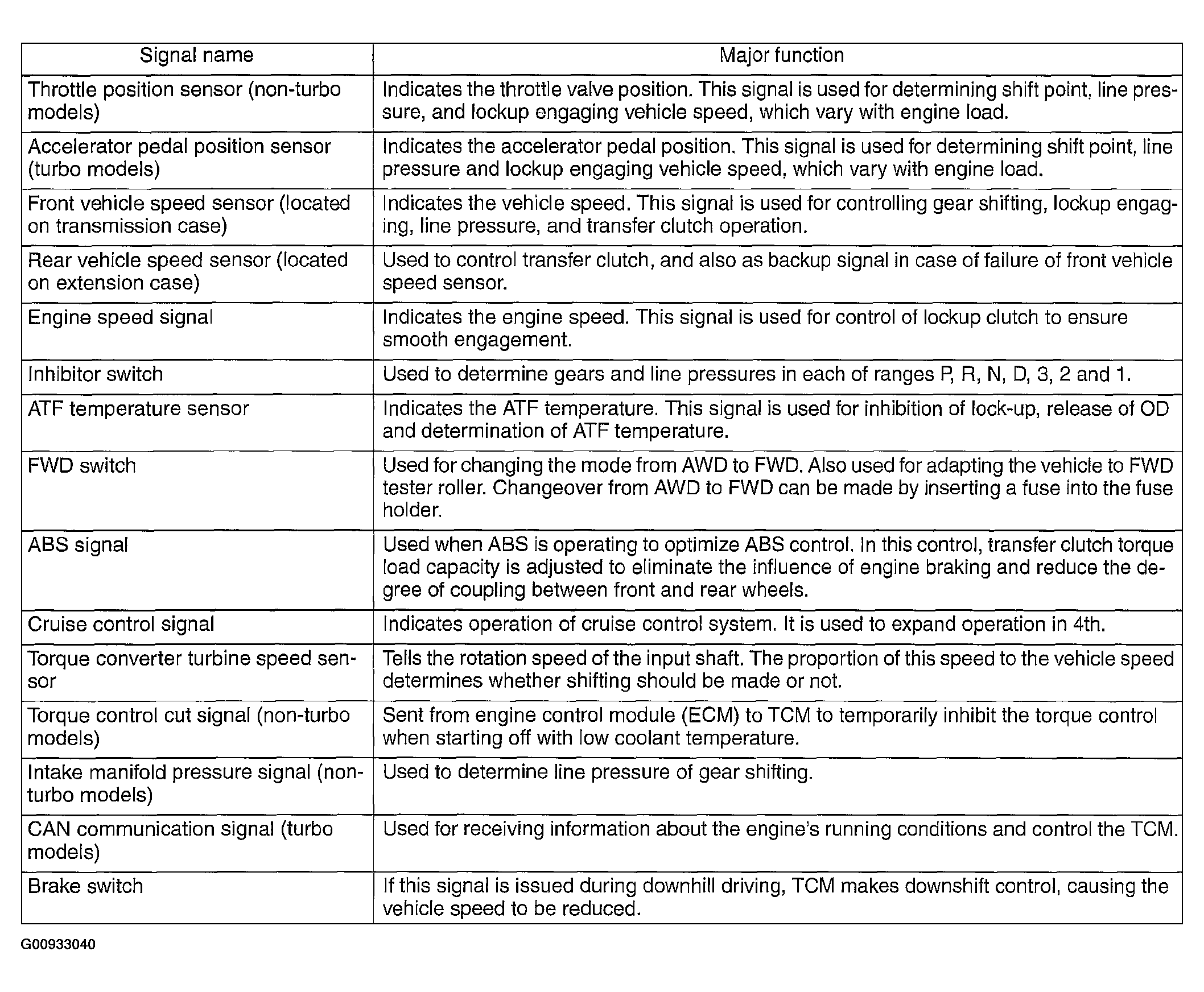

Fig 1: Input Signal Name & Function Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
