Non-Turbo Models

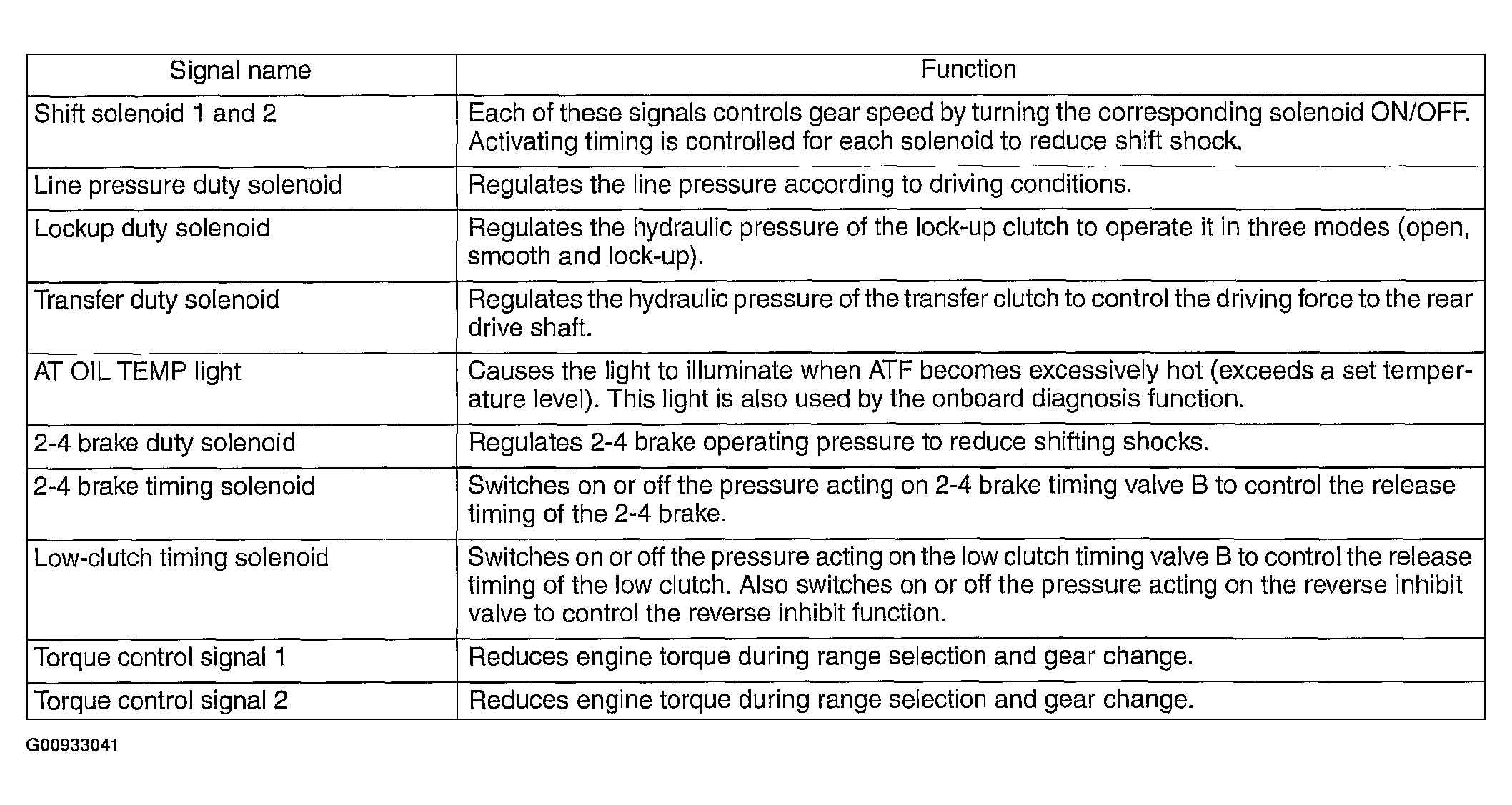

Fig 1: Output Signal Name & Function Chart - Non-Turbo Models
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
