Turbo Models

The on-board diagnostics system detects a fault that has occurred in any of the following input and output signal systems.

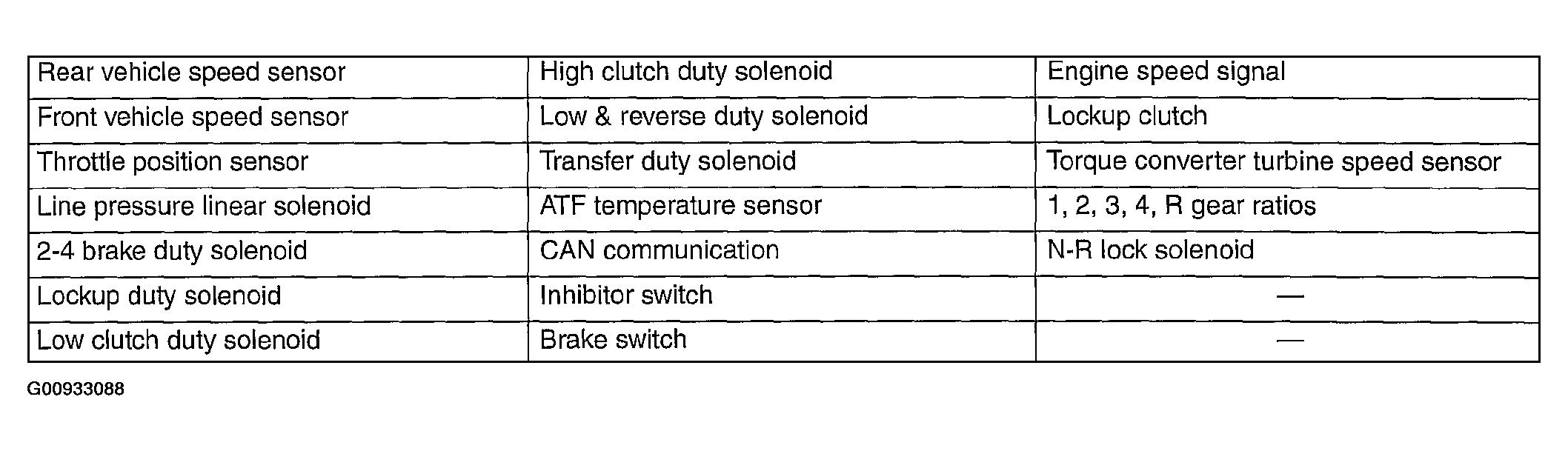

Fig 1: On-Board Diagnostics System Chart - Turbo Models
G00933088Courtesy of SUBARU OF AMERICA, INC.

DTCs are checked by reading them with a select monitor.
