Automatic Transmission - Mechanism & Function
>>
Transmission Control Module (TCM)
>>
Control System
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Control System

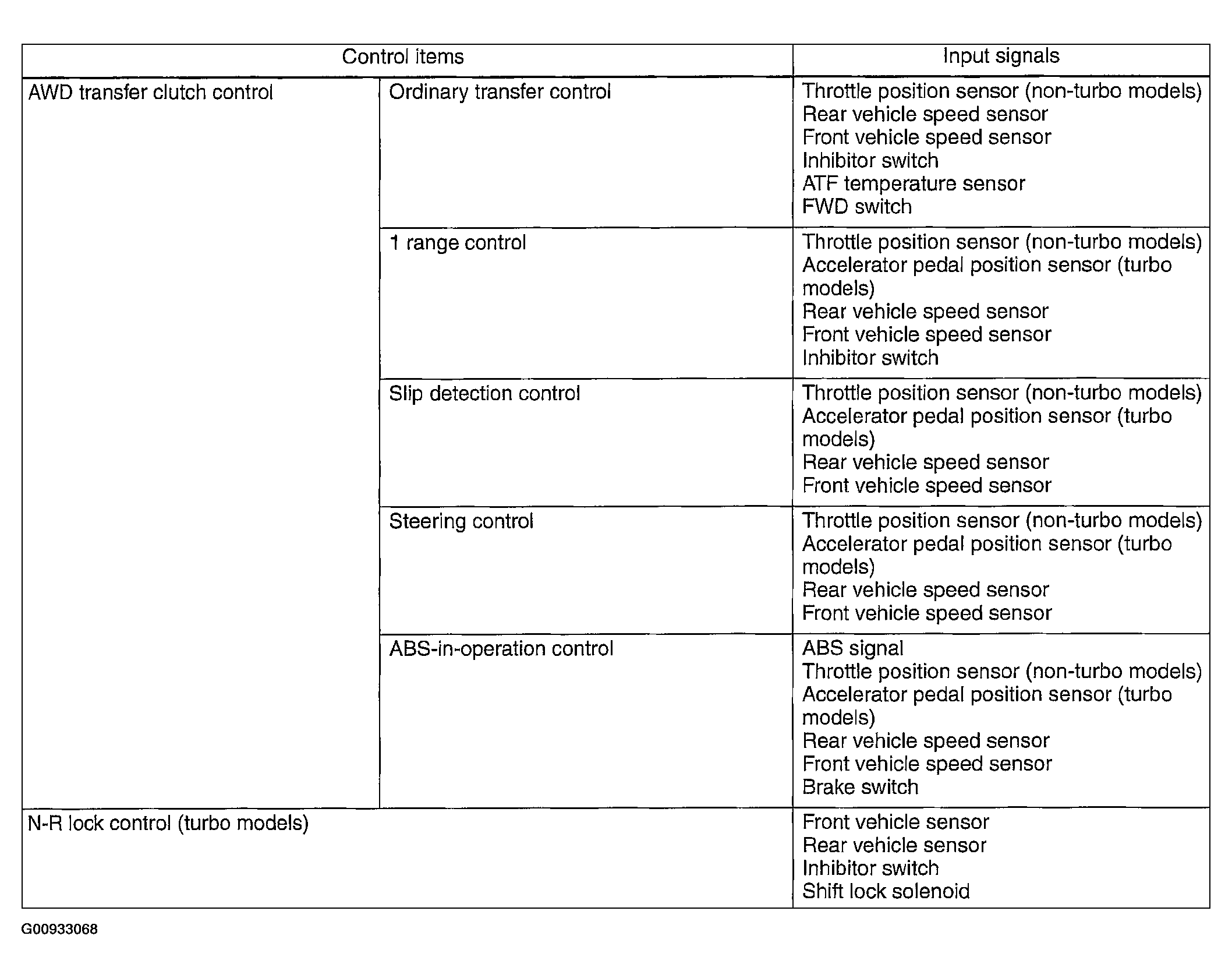

Fig 1: Transmission Control Module Control System Input Signal Chart (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

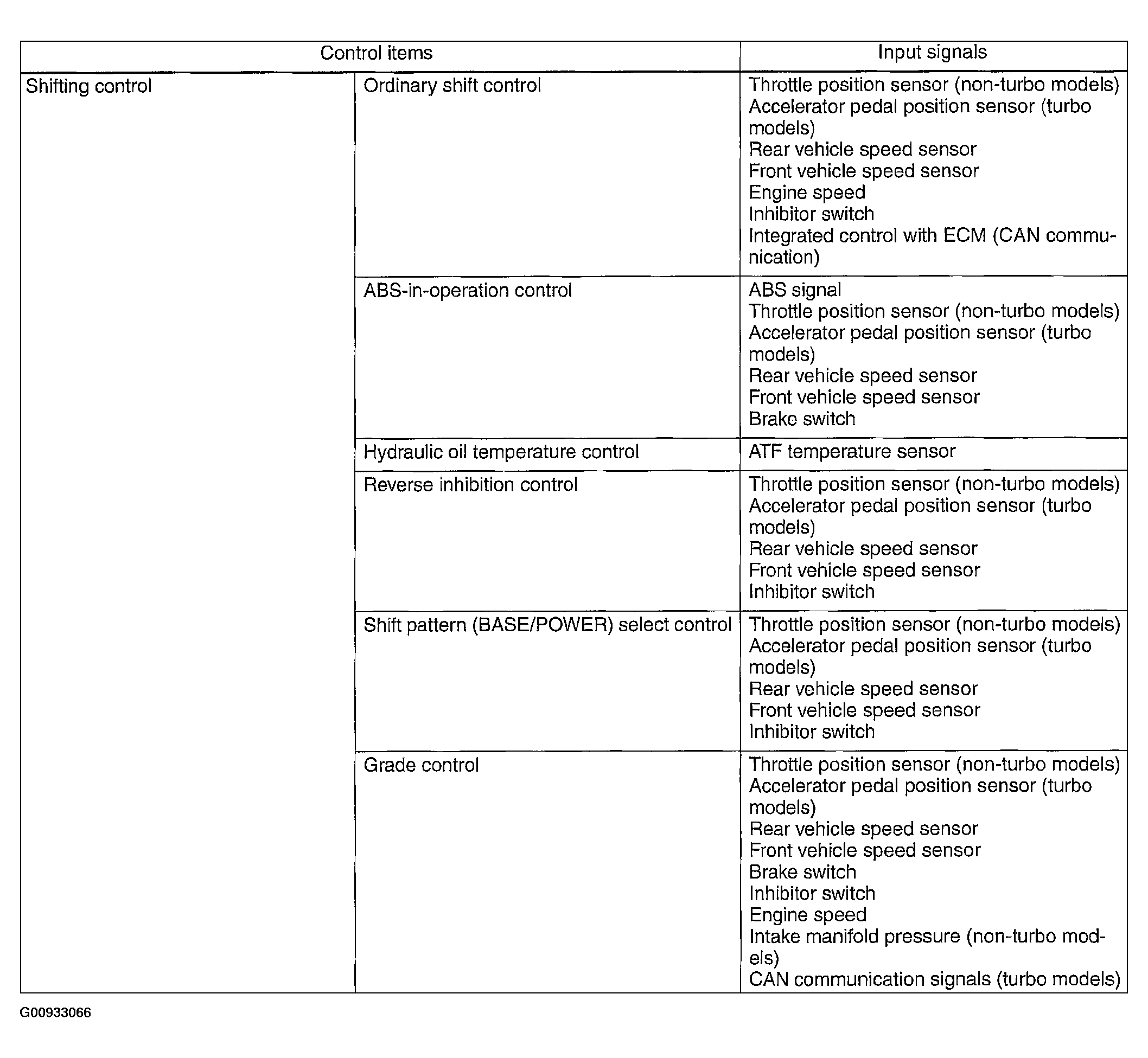

Fig 2: Transmission Control Module Control System Input Signal Chart (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

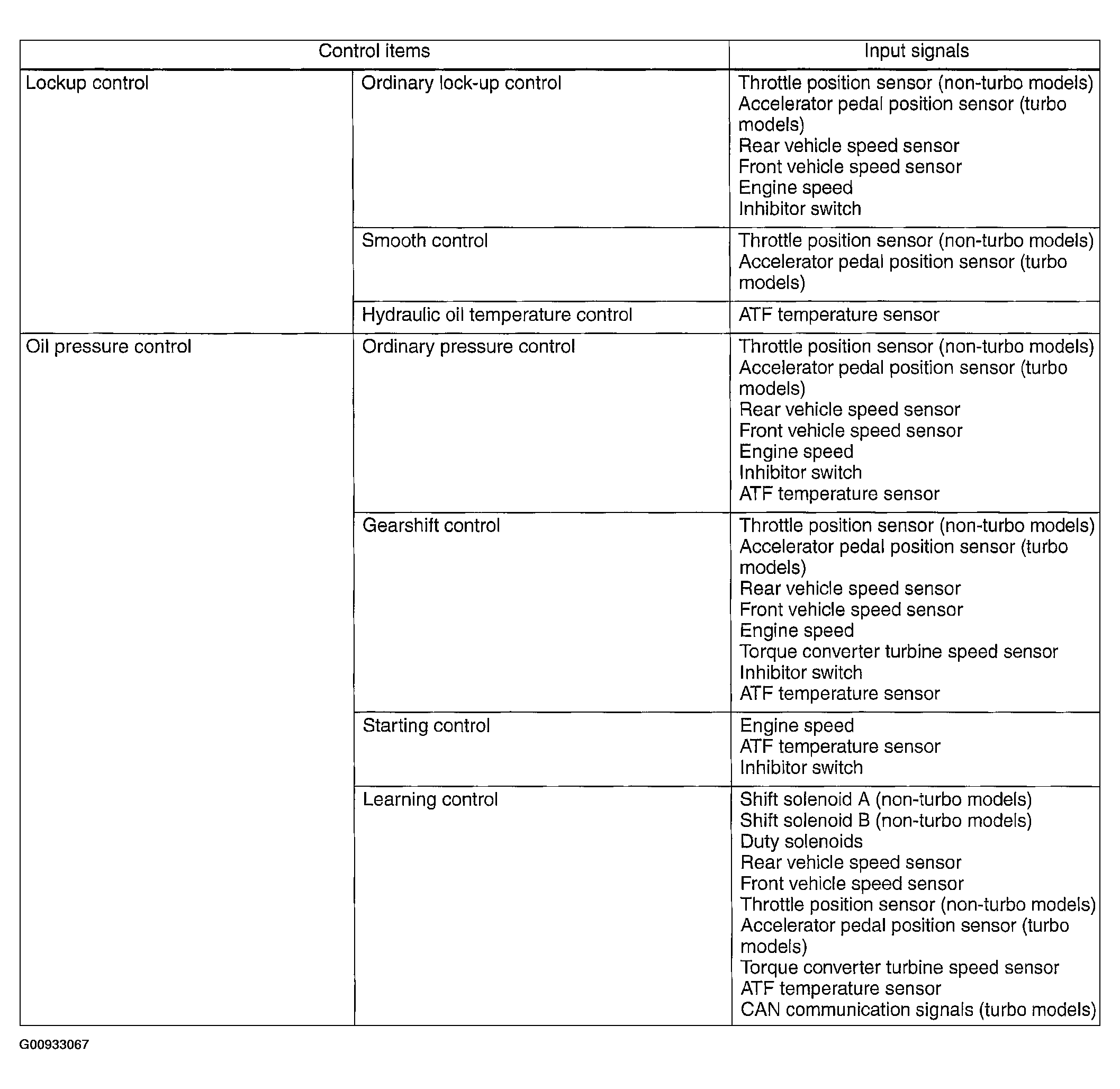

Fig 3: Transmission Control Module Control System Input Signal Chart (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
