Turbo Models

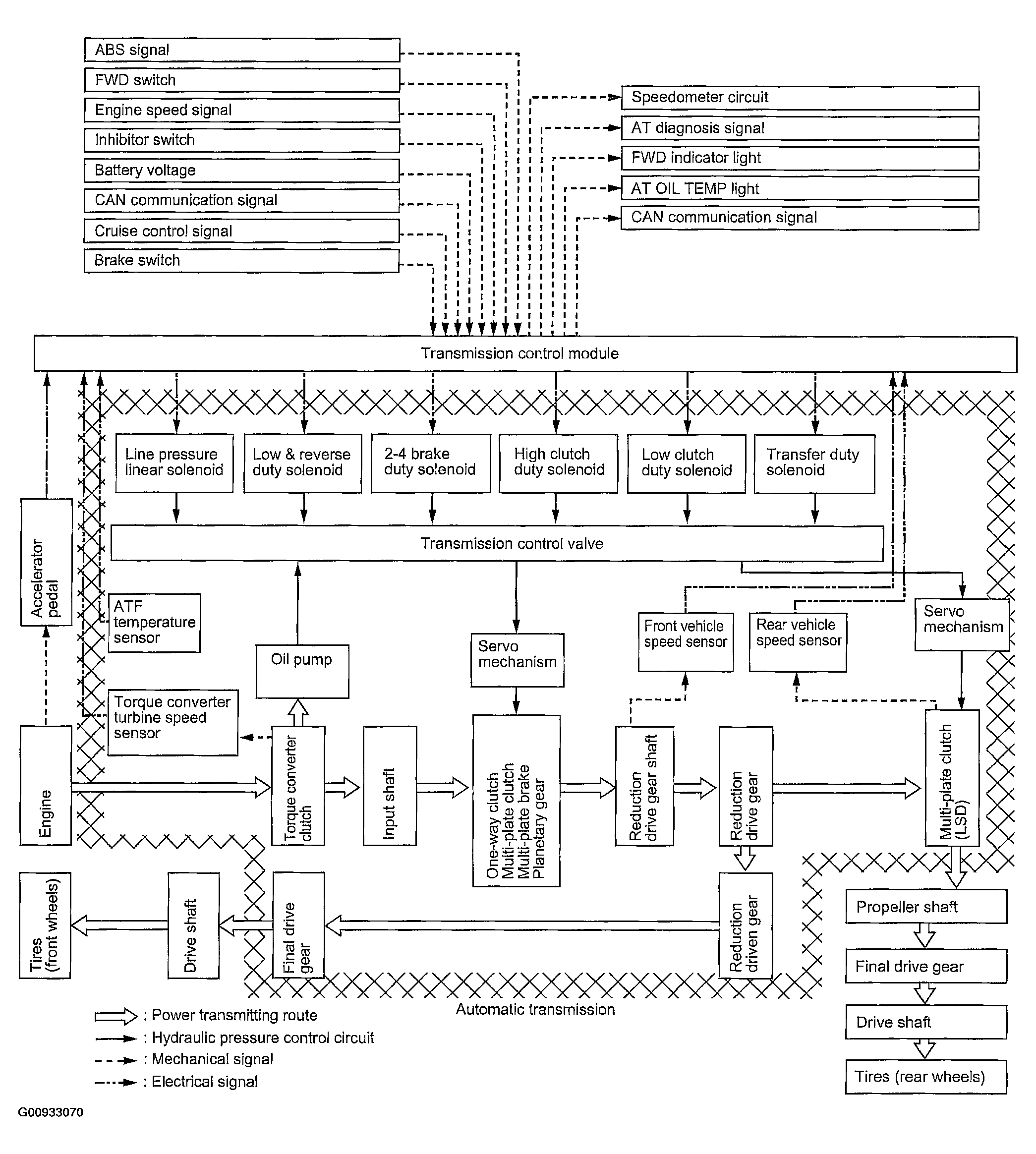

Fig 1: Schematic Diagrams (TCM) - Turbo Models
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
