Electrical Specification

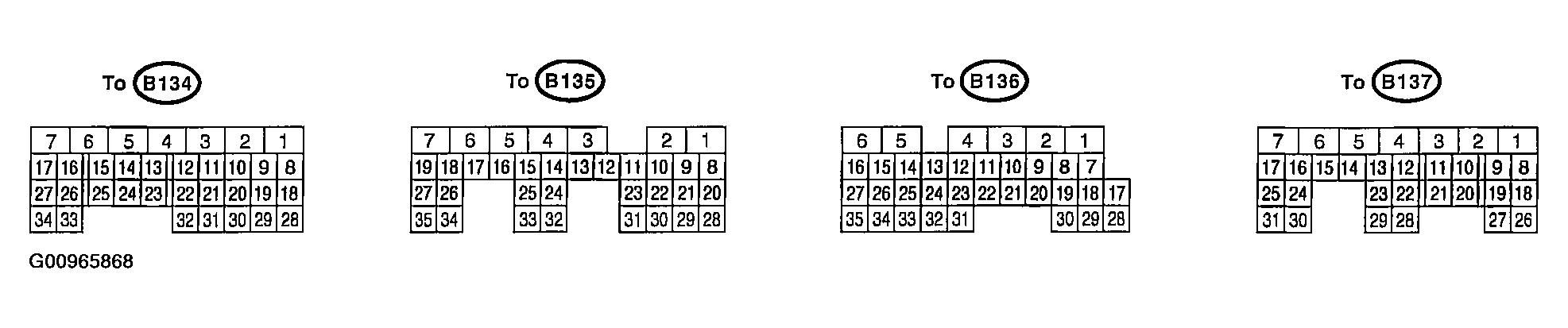

Fig 1: Identifying Engine Control Module Connector Terminals

Courtesy of SUBARU OF AMERICA, INC.

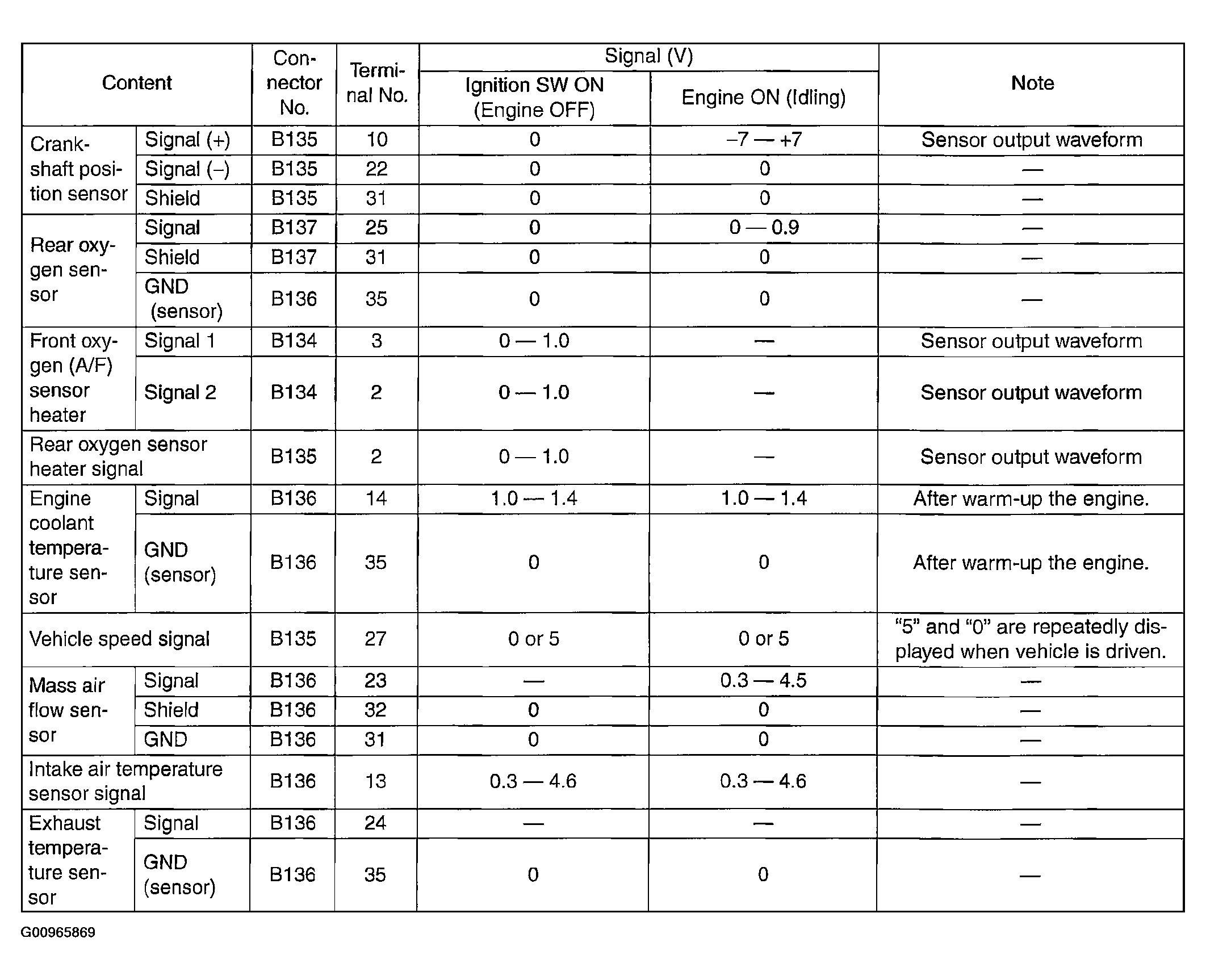

Fig 2: Terminal Specifications (1 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

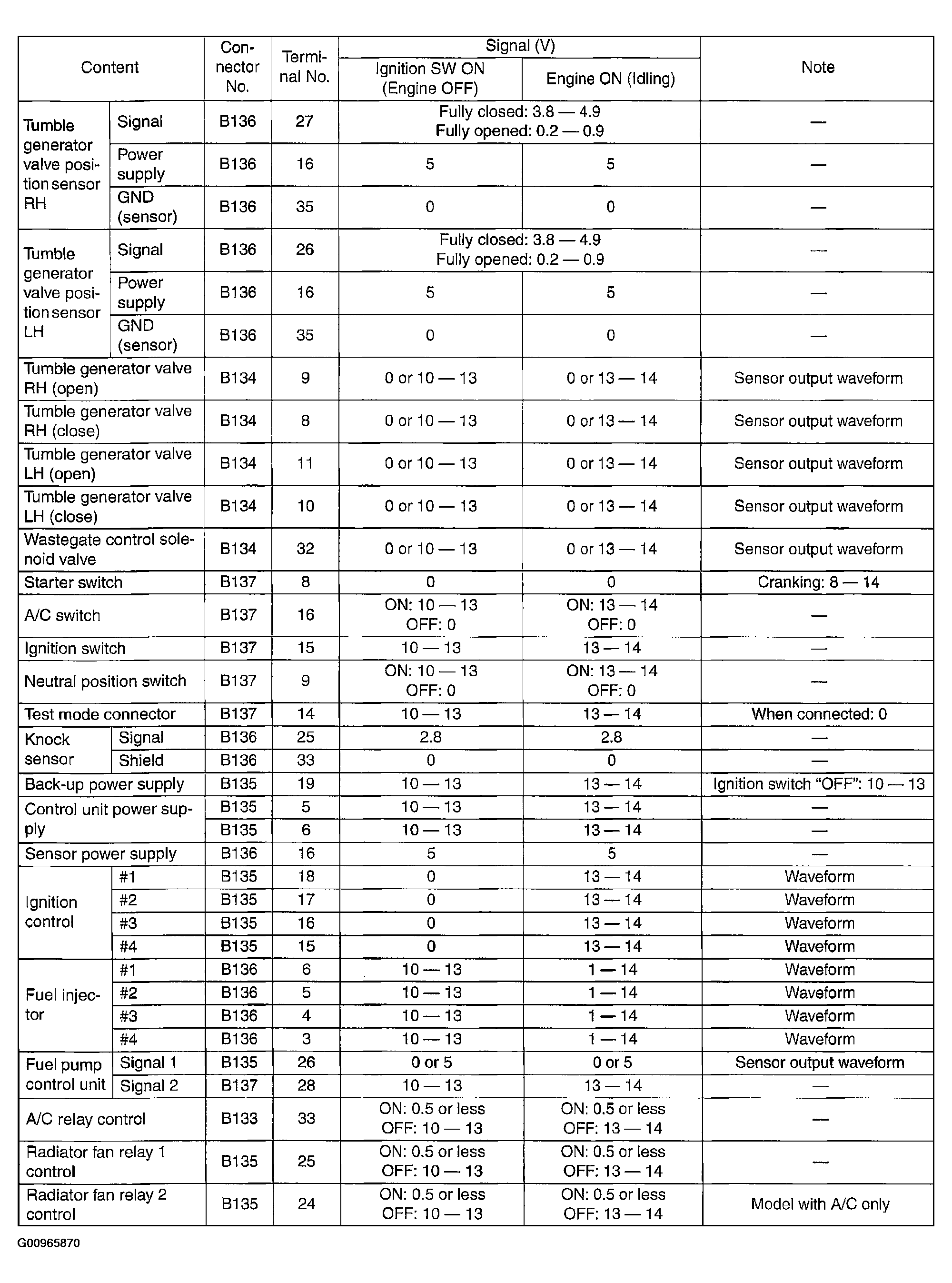

Fig 3: Terminal Specifications (2 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

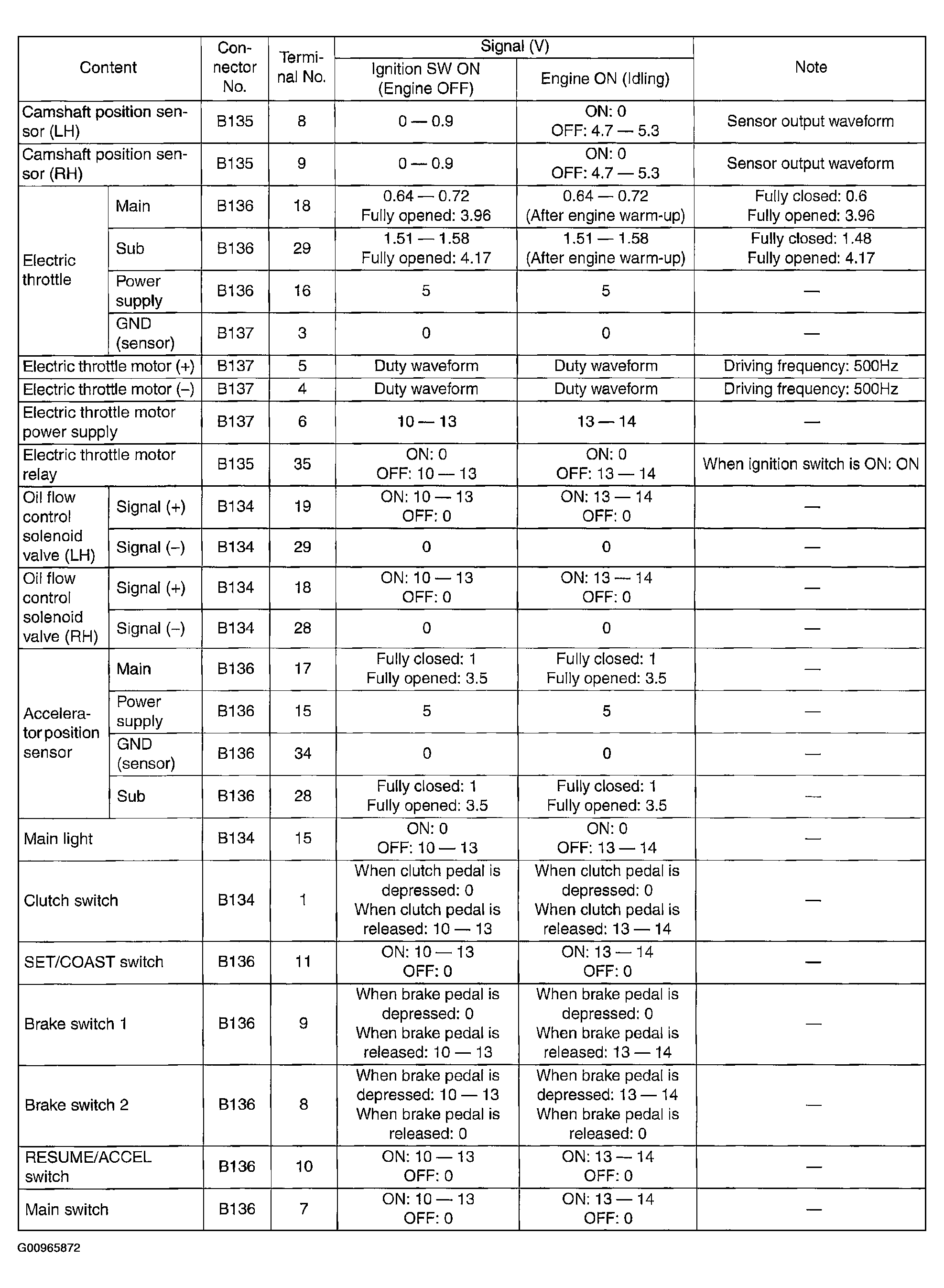

Fig 4: Terminal Specifications (3 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

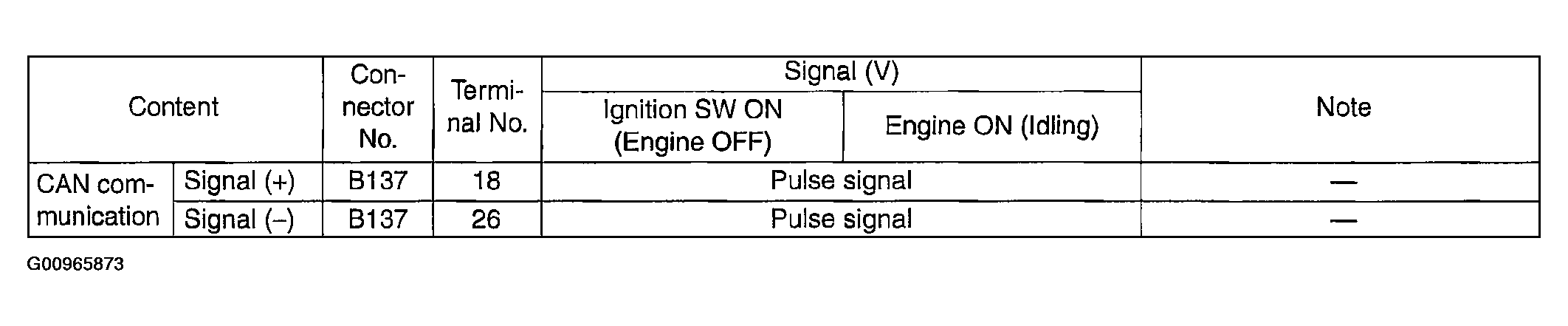

Fig 5: Terminal Specifications (4 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

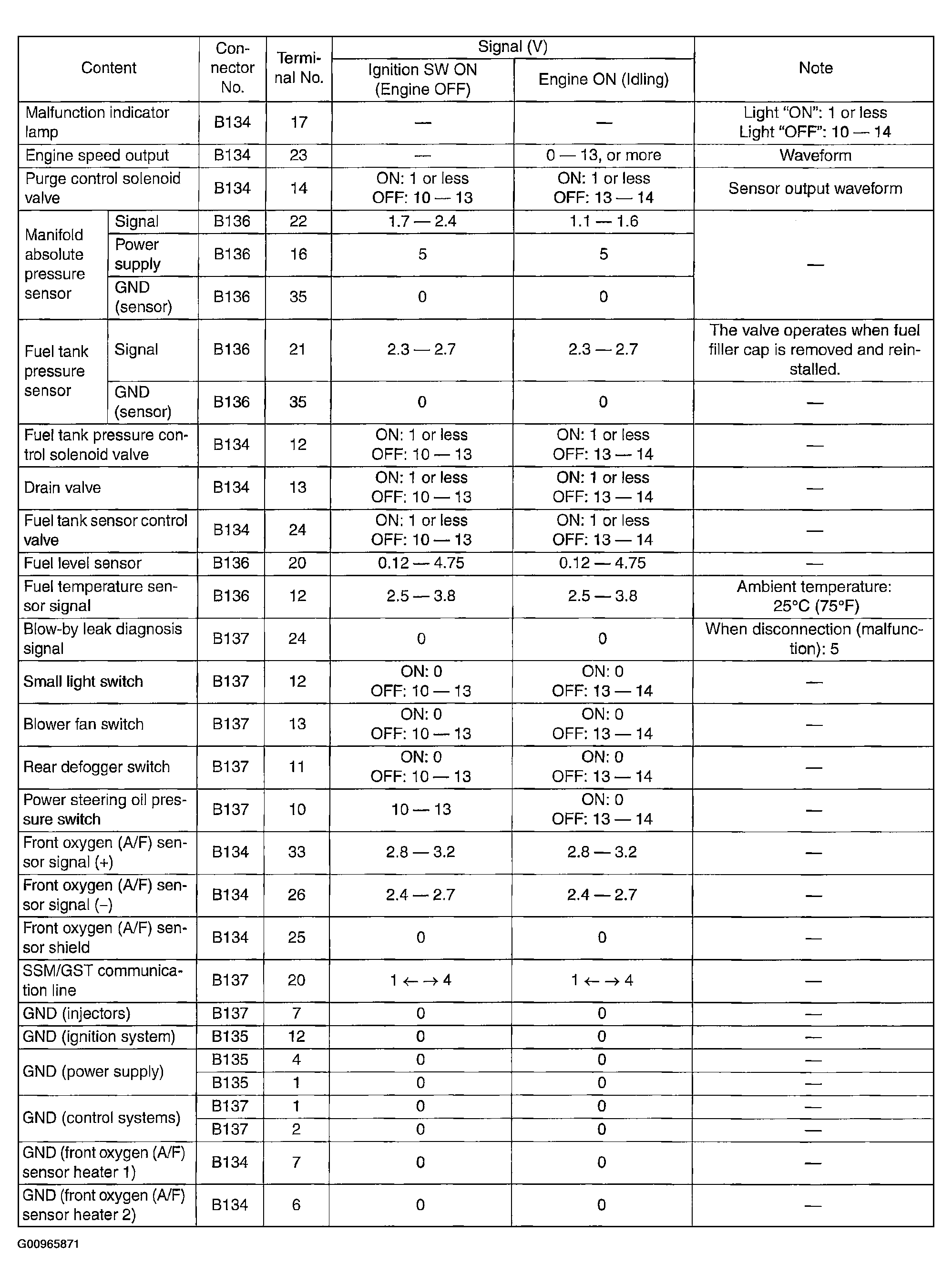

Fig 6: Terminal Specifications (5 Of 5)

Courtesy of SUBARU OF AMERICA, INC.
