Non-Turbo Model

  1. Disconnect the ground cable from battery.
  2. Remove the glove box. < Ref. to REMOVAL , Glove Box . >
  3. Disconnect the connector from cruise control module.
  4. Remove the bolt, then detach the cruise control module (A).

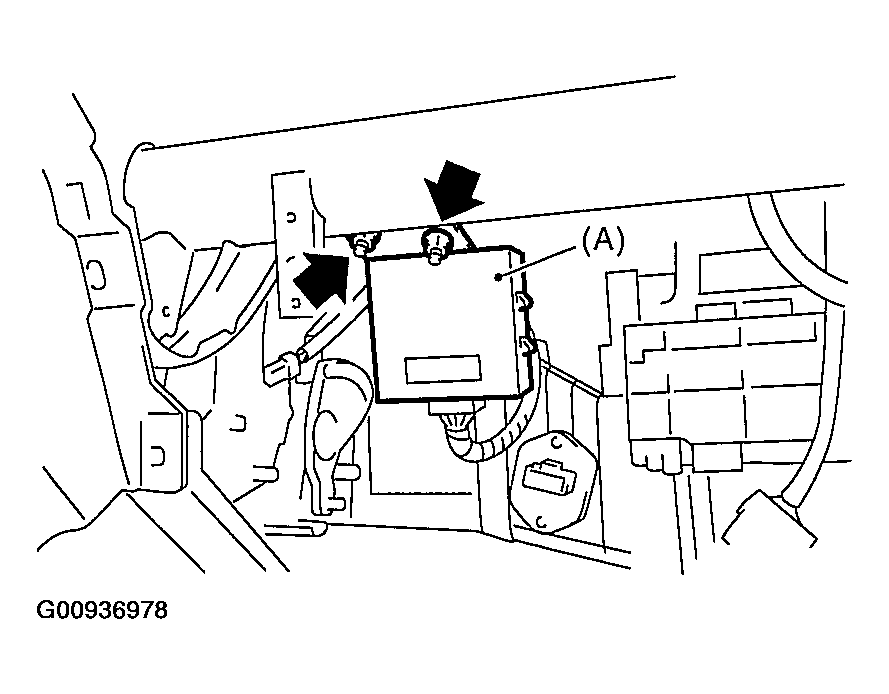

    Fig 1: Identifying Cruise Control Module (A)
    G00936978Courtesy of SUBARU OF AMERICA, INC.
