Rear Gate Lock

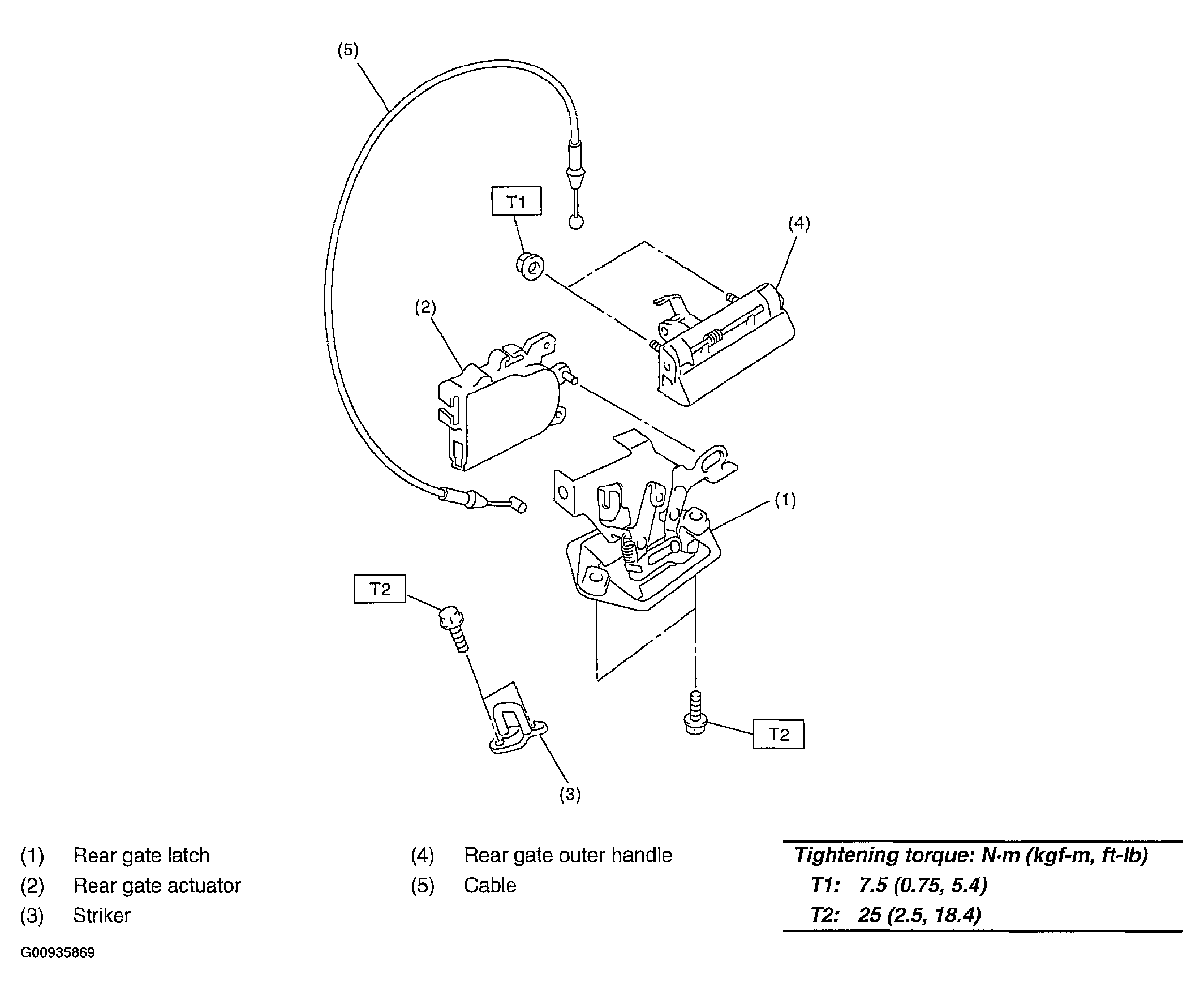

Fig 1: Exploded View Of Rear Gate Lock
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
