Control Module I/O Signal: Wiring Diagram

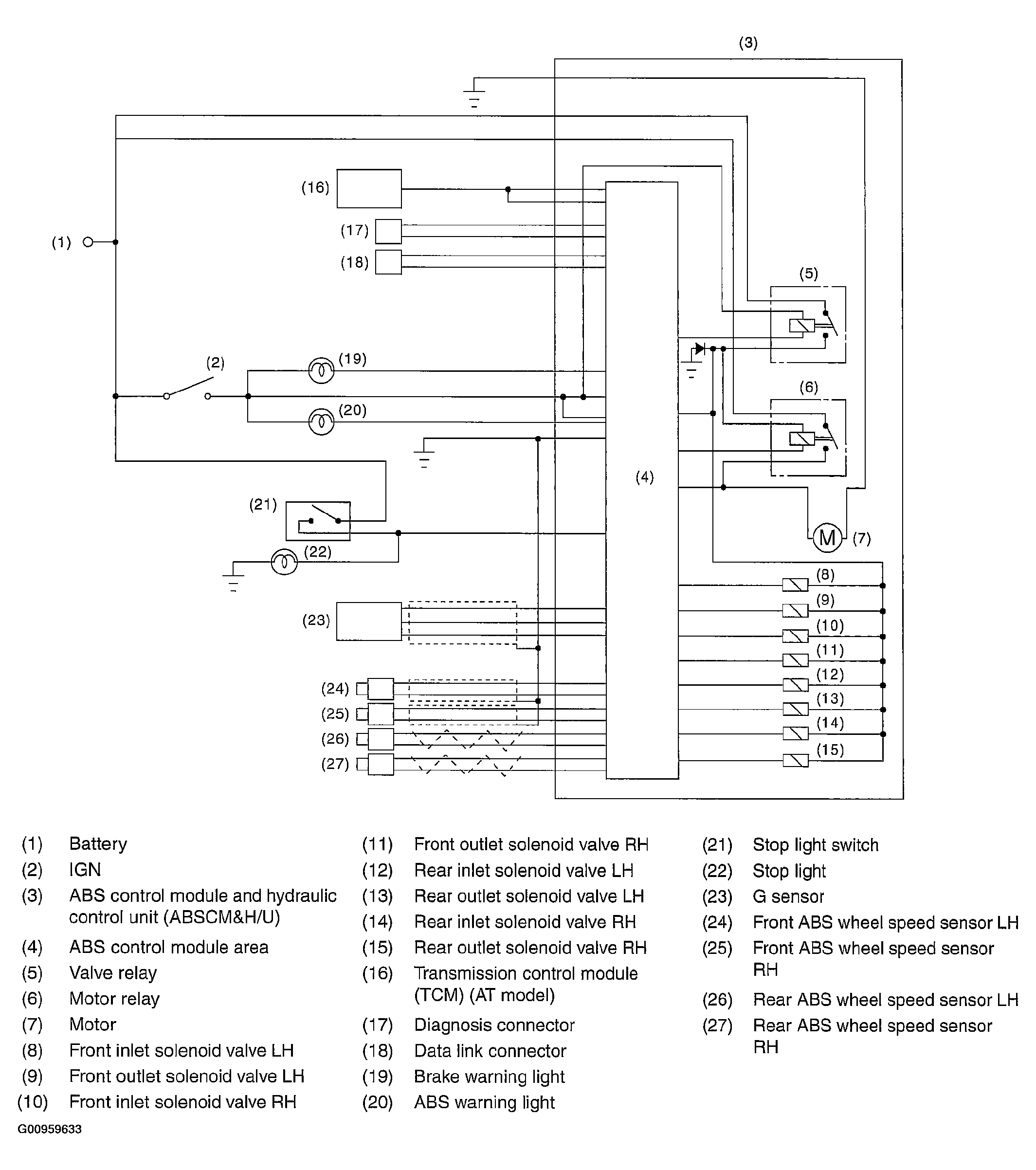

Fig 1: Wiring Diagram - Control Module I/O Signal
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
