Rear ABS Wheel Speed Sensor: Removal

  1. Disconnect the ground cable from battery.
  2. Lift-up the vehicle.
  3. Remove the rear seat and disconnect the rear ABS wheel speed sensor connector.
  4. Remove the rear sensor harness bracket from the rear trailing link and bracket.
  5. Remove the rear ABS wheel speed sensor from back plate.
    CAUTION:
    • Be careful not to damage the pole piece located at tip of the sensor and teeth faces during removal.
    • Do not pull the sensor harness during removal.

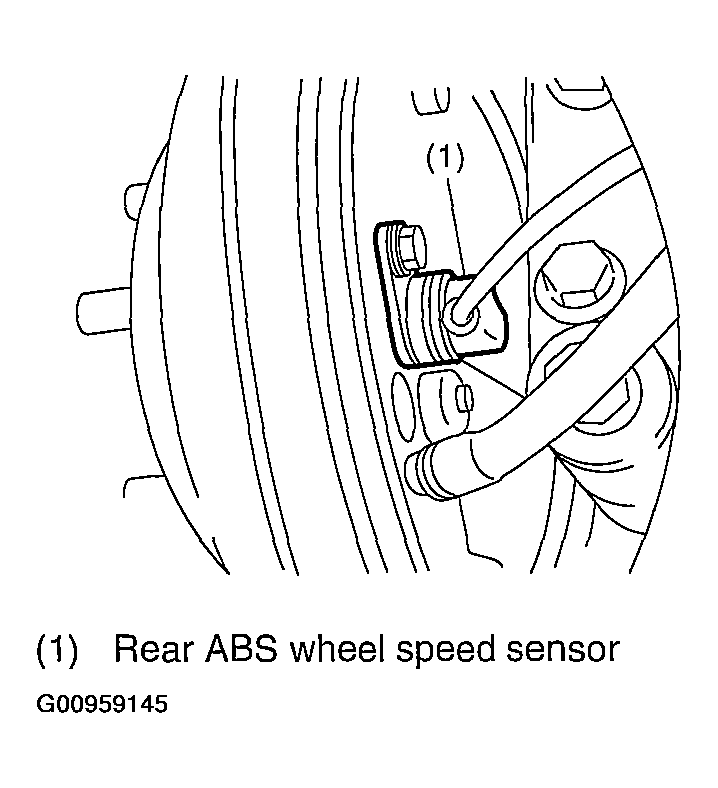

      Fig 1: Identifying Rear ABS Wheel Speed Sensor
      G00959145Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the rear tone wheel while Identifying the hub from housing and hub assembly. < Ref. to REMOVAL , Rear Axle .>
