Turbo Model

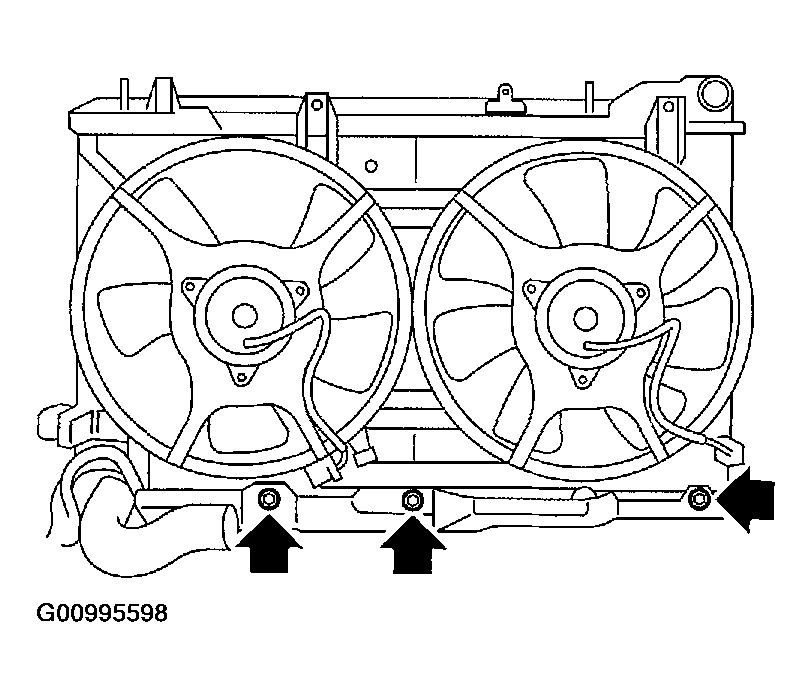

Install the radiator under cover to radiator.

Fig 1: Installing Radiator Under Cover To Radiator
Courtesy of SUBARU OF AMERICA, INC.
Attach the radiator lower cushions to holes on the vehicle.

Fig 2: Attaching Radiator Lower Cushions To Holes On Vehicle
Courtesy of SUBARU OF AMERICA, INC.
Install the radiator to vehicle.
NOTE: Fit pins on the lower side of radiator into cushions on body side.

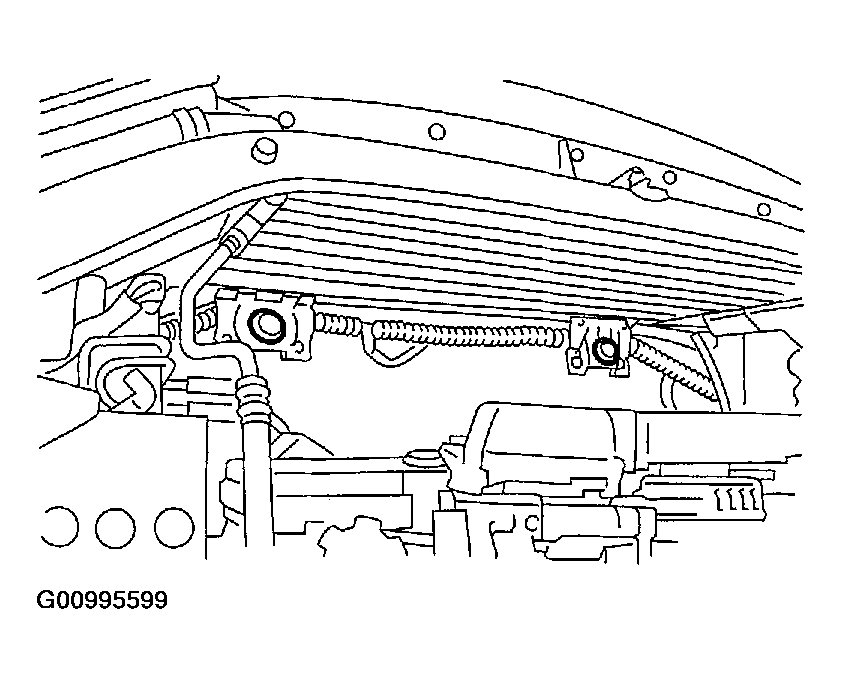

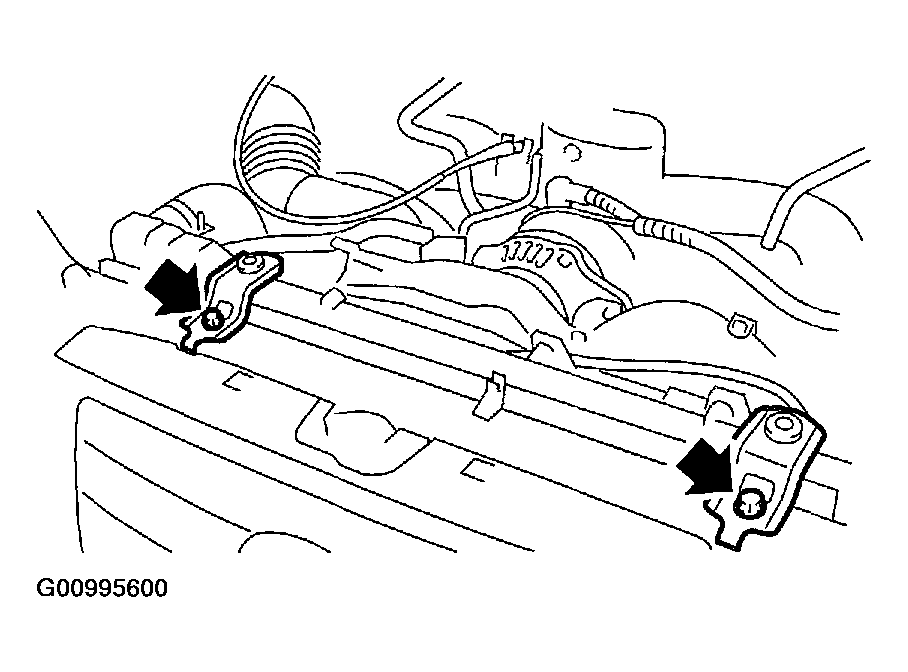

Install the radiator upper brackets, and then tighten the bolts.
Tightening torque: 18 N.m (1.8 kgf-m, 13.0 ft-lb)

Fig 3: Installing Radiator Upper Brackets & Tightening Bolts
Courtesy of SUBARU OF AMERICA, INC.

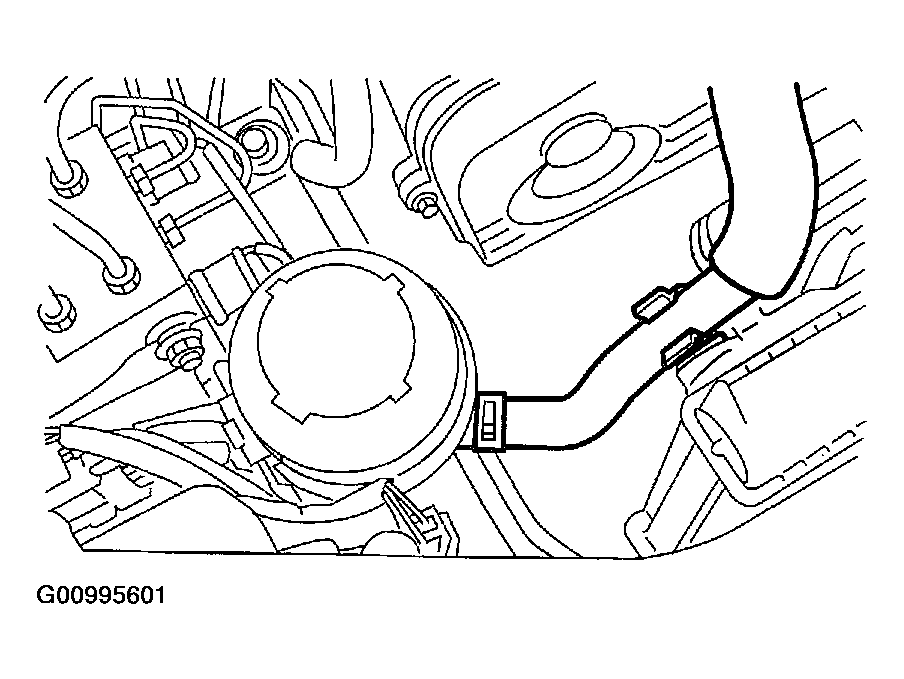

Connect the power steering hose to radiator.

Fig 4: Connecting Power Steering Hose To Radiator
Courtesy of SUBARU OF AMERICA, INC.

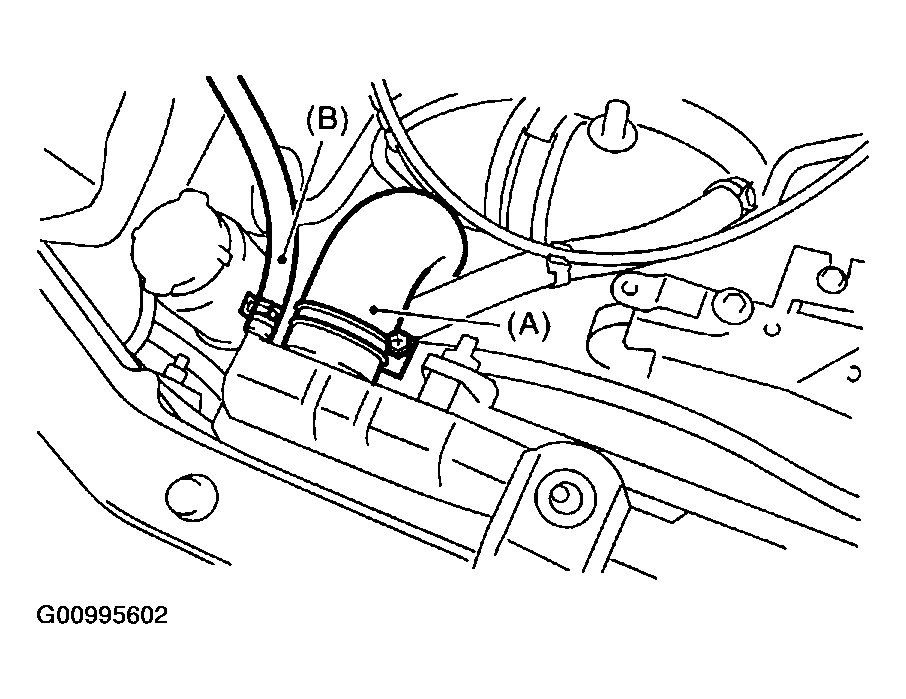

Connect the radiator inlet hose (A) and water tank hose (B).

Fig 5: Connecting Radiator Inlet Hose & Water Tank Hose
Courtesy of SUBARU OF AMERICA, INC.

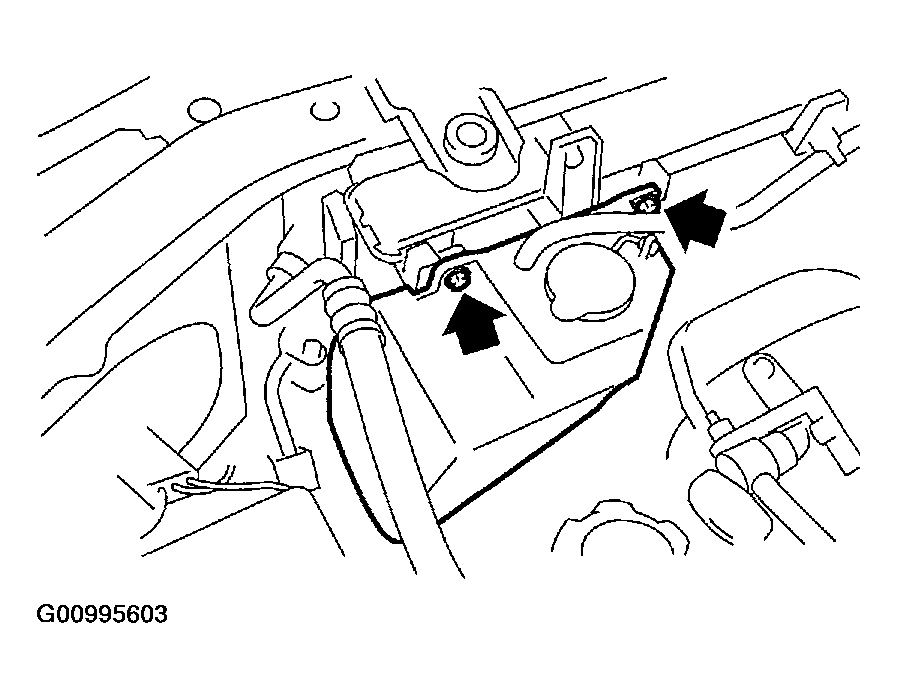

Install the reservoir tank.
Tightening torque: 4.9 N.m (0.50 kgf-m, 3.6 ft-lb)

Fig 6: Installing Reservoir Tank
Courtesy of SUBARU OF AMERICA, INC.
Connect the overflow hose.

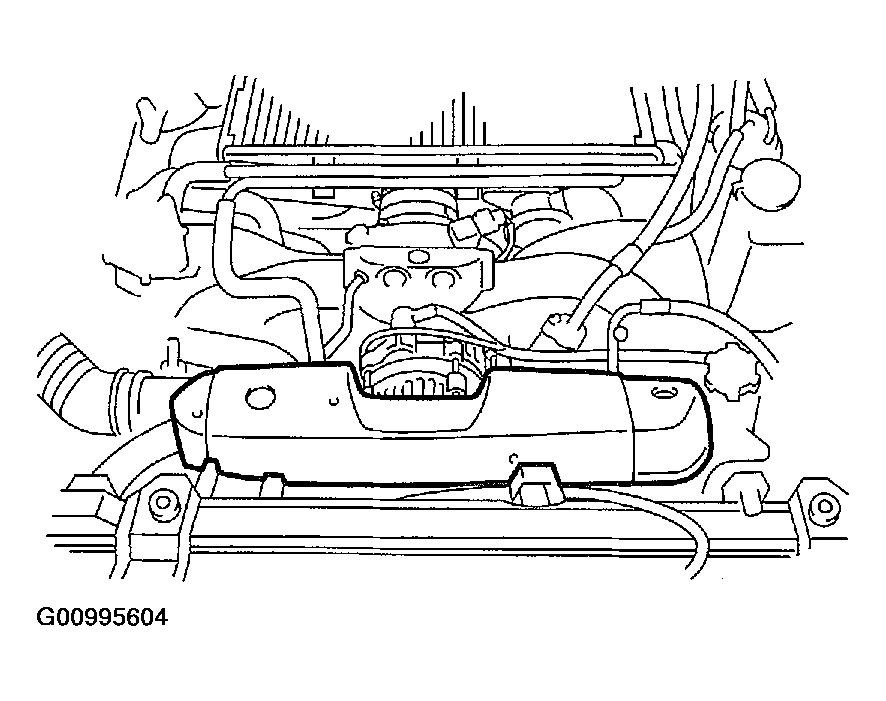

Install the V-belt cover.

Fig 7: Installing V-Belt Cover
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Connect the ATF cooler hoses. (AT model).
Connect the oil cooler hose. (MT model)

Fig 8: Connecting Oil Cooler Hose (MT Model)
Courtesy of SUBARU OF AMERICA, INC.

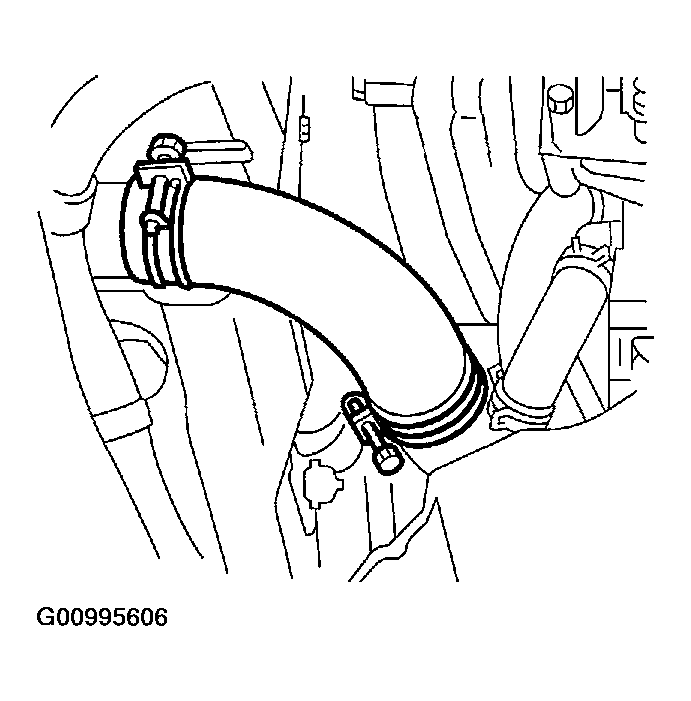

Connect the radiator outlet hose.

Fig 9: Connecting Radiator Outlet Hose
Courtesy of SUBARU OF AMERICA, INC.

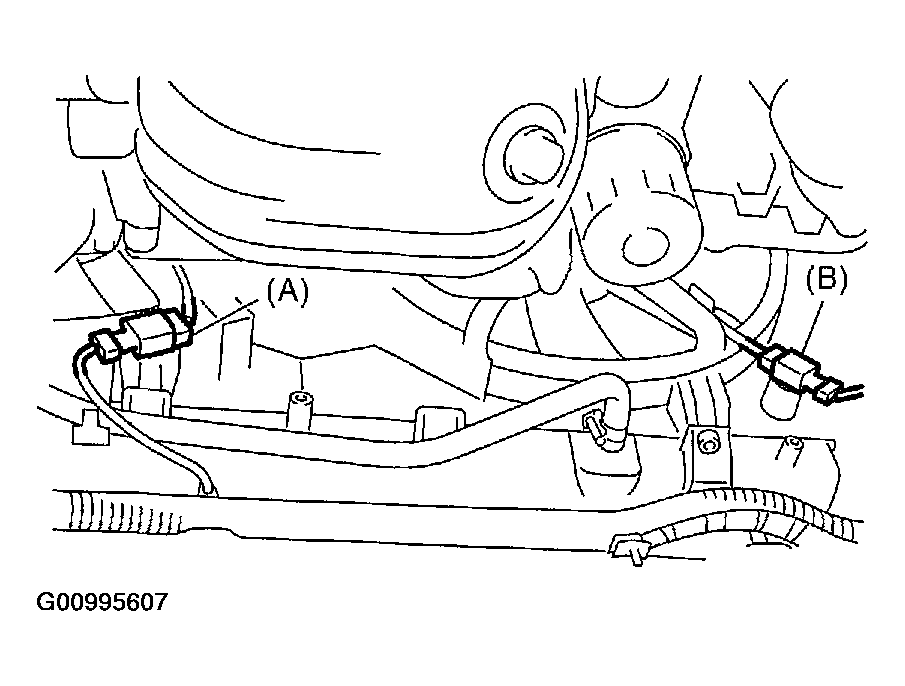

Connect the connectors to radiator main fan motor (A) and sub fan motor (B).

Fig 10: Connecting Connectors To Radiator Main & Sub Fan Motor
Courtesy of SUBARU OF AMERICA, INC.
Install the under cover.
Lower the vehicle.
Connect the battery ground cable to battery.

Fig 11: Connecting Battery Ground Cable To Battery
Courtesy of SUBARU OF AMERICA, INC.
Fill engine coolant. Refer to FILLING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant.
Check the ATF level. Refer to INSPECTION , Automatic Transmission Fluid.
