Exhaust Temperature Sensor: Installation

Before Identifying the exhaust temperature sensor, apply anti-seize compound only to the threaded portion of exhaust temperature sensor to make the next removal easier.
CAUTION: Never apply anti-seize compound to the protector of exhaust temperature sensor.
1. Anti-seize compound: JET LUBE SS-30
Install the exhaust temperature sensor.
NOTE: Align the harness (A) of exhaust temperature sensor to the marking (B) of joint pipe, and tighten the screws.
1. Tightening torque: 21 N.m (2.1 kgf-m, 15.2 ft-lb)

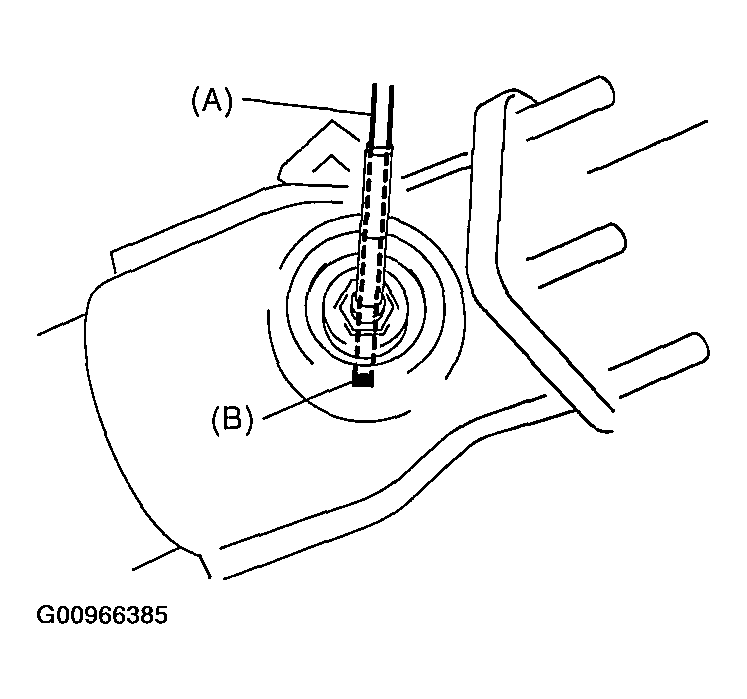

Fig 1: Aligning Harness Of Exhaust Temperature Sensor To Marking Of Joint Pipe
Courtesy of SUBARU OF AMERICA, INC.
Install the joint pipe. < Ref. to INSTALLATION , Joint Pipe . >
Connect the battery ground cable to battery.

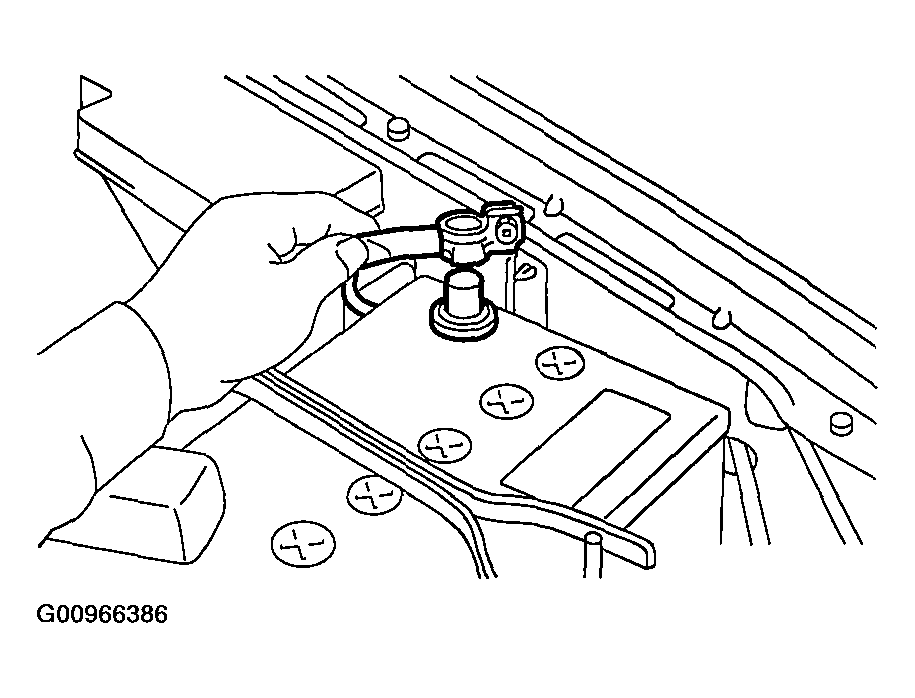

Fig 2: Connecting Battery Ground Cable To Battery
Courtesy of SUBARU OF AMERICA, INC.
