Fuel Tank: Installation

Support the fuel tank with transmission jack and push the fuel tank harness into access hole with grommet.
Set the fuel tank and temporarily tighten the bolts of fuel tank bands.
WARNING: A helper is required to perform this work.

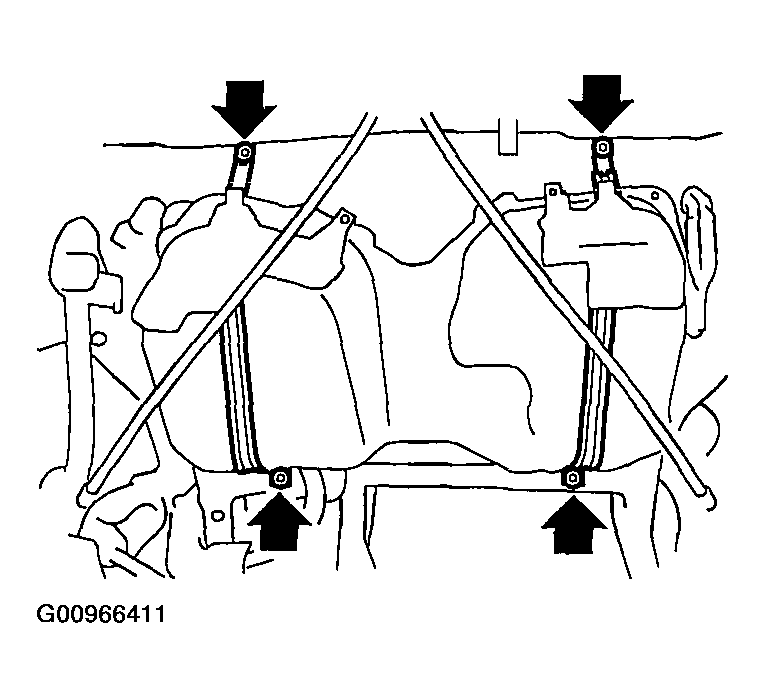

Fig 1: Identifying Fuel Tank
Courtesy of SUBARU OF AMERICA, INC.
Connect the fuel filler hose (A) and air vent hose (B).

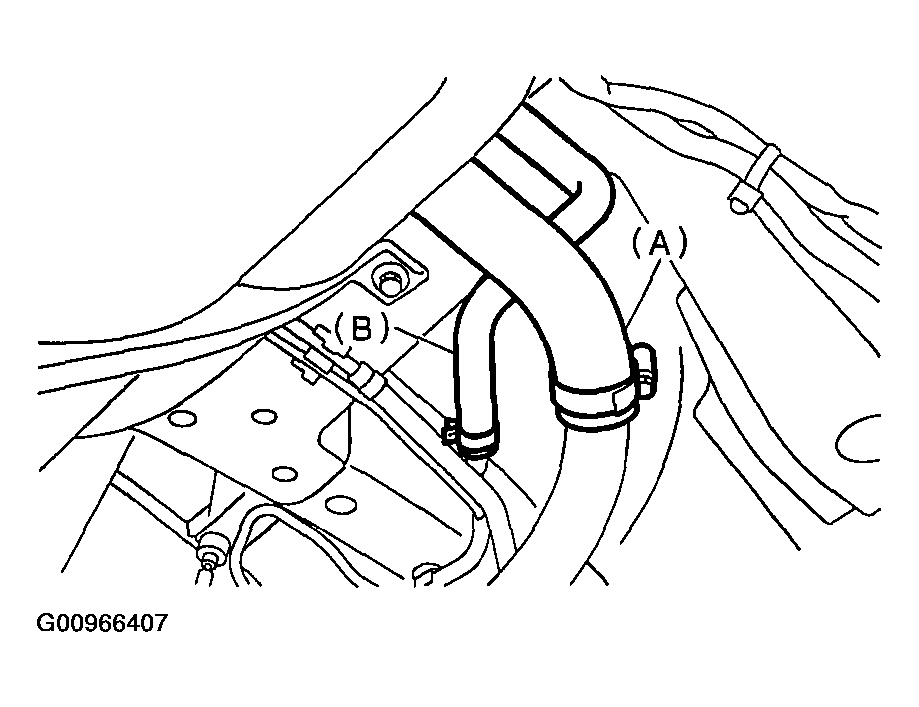

Fig 2: Identifying Fuel Filler Hose And Air Vent Hose
Courtesy of SUBARU OF AMERICA, INC.
Connect the fuel hoses, and hold them with clips and quick connector. < Ref. to REMOVAL , Fuel Delivery, Return and Evaporation Lines . >

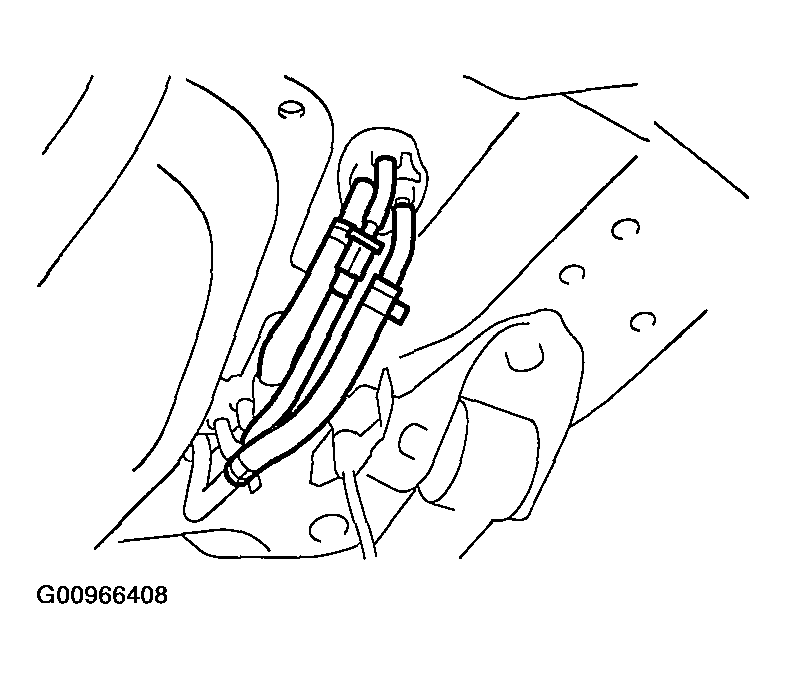

Fig 3: Identifying Fuel Hoses
Courtesy of SUBARU OF AMERICA, INC.
Connect the connectors to the drain valve.

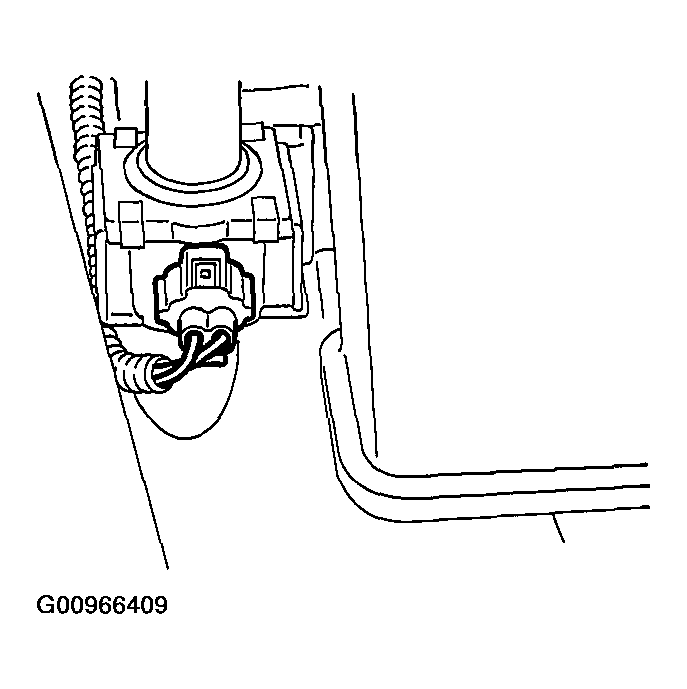

Fig 4: Identifying Drain Valve
Courtesy of SUBARU OF AMERICA, INC.
Connect the connectors to the pressure control solenoid valve.
Connect the evaporation hose to the canister, and hold them clamp.

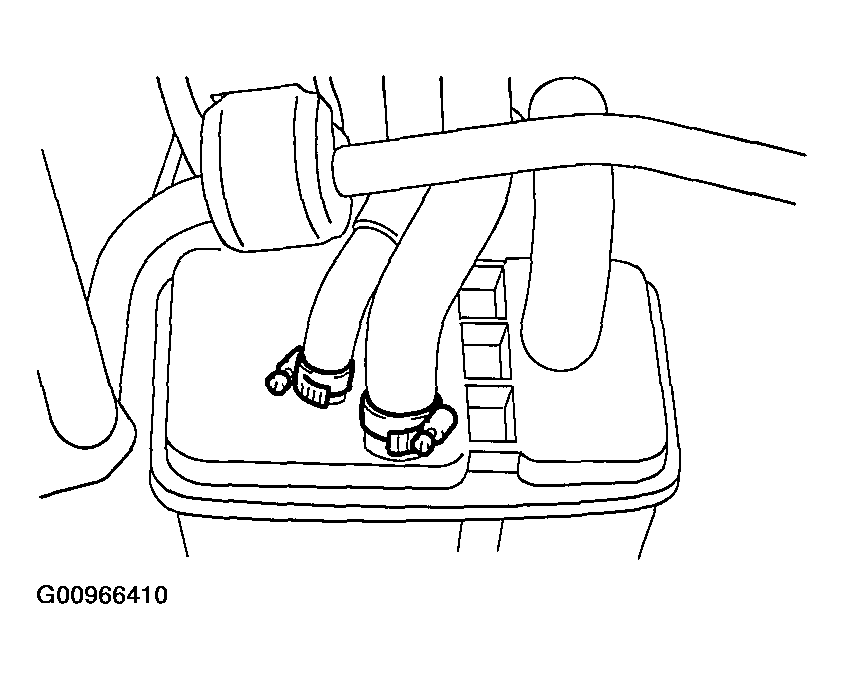

Fig 5: Identifying Evaporation Hose
Courtesy of SUBARU OF AMERICA, INC.
Tighten the band mounting bolts.
1. Tightening torque: 33 N.m (3.4 kgf-m, 25 ft-lb)

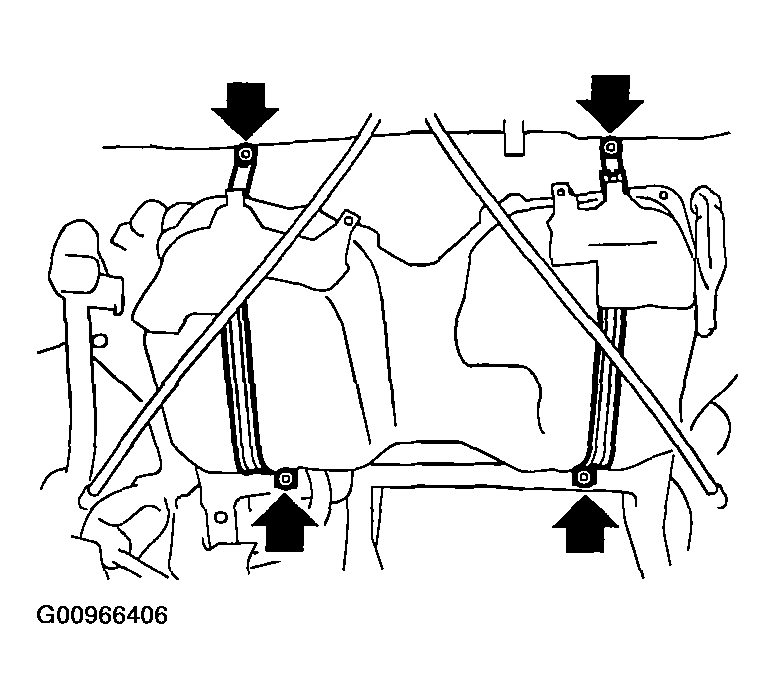

Fig 6: Tightening Band Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the rear crossmember. < Ref. to INSTALLATION , Rear Crossmember . >
Connect the connectors (A) to the fuel tank cord and plug the service hole with grommet (B).

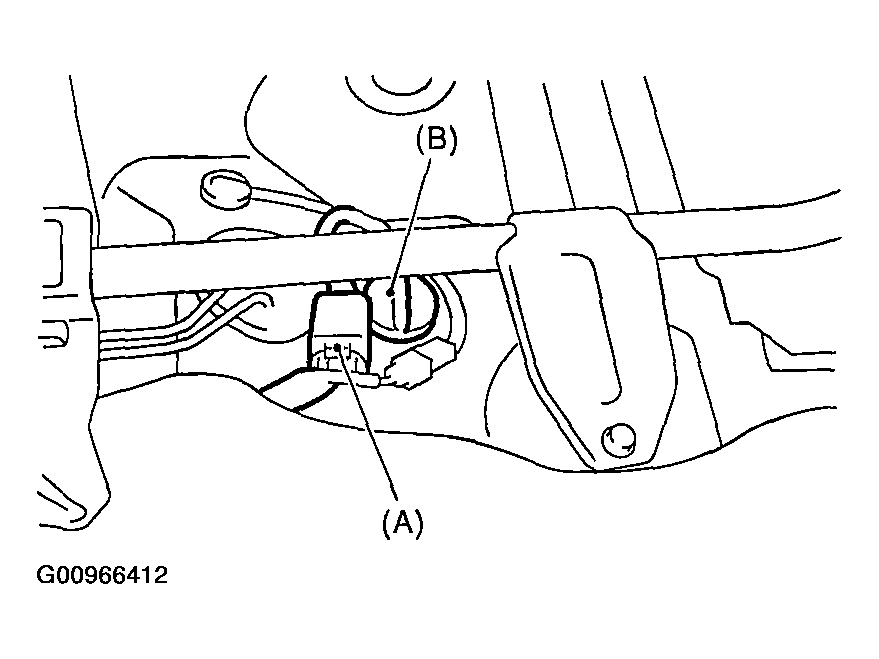

Fig 7: Identifying Fuel Tank Cord
Courtesy of SUBARU OF AMERICA, INC.
Set the rear seat and floor mat.
Connect the connectors to the fuel pump relay.

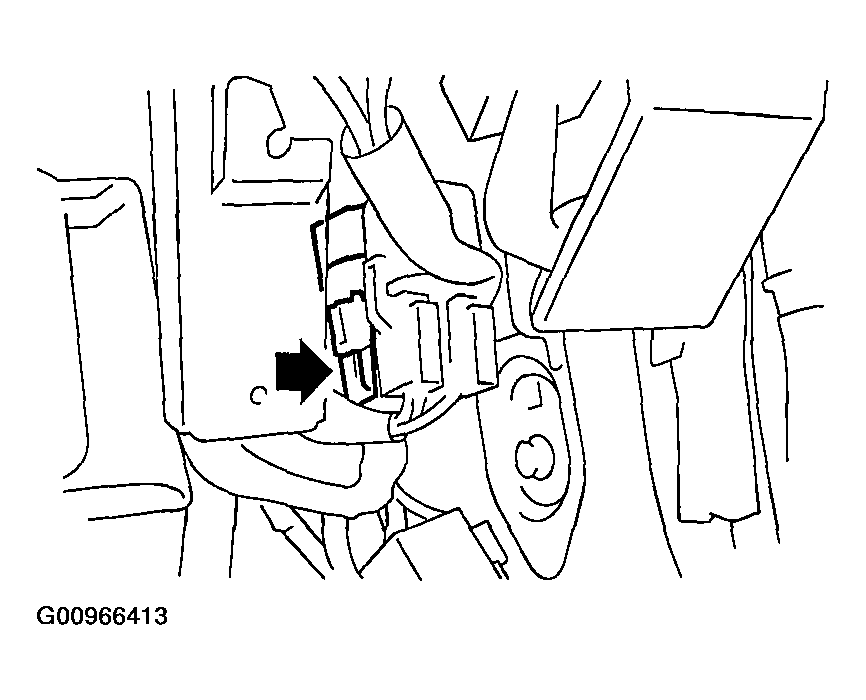

Fig 8: Identifying Fuel Pump Relay
Courtesy of SUBARU OF AMERICA, INC.
