Tumble Generator Valve Assembly: Installation

Install in the reverse order of removal.

NOTE: Always use new gaskets.
  1. Tightening torque: 8.25 N.m (0.84 kgf-m, 6.1 ft-lb)

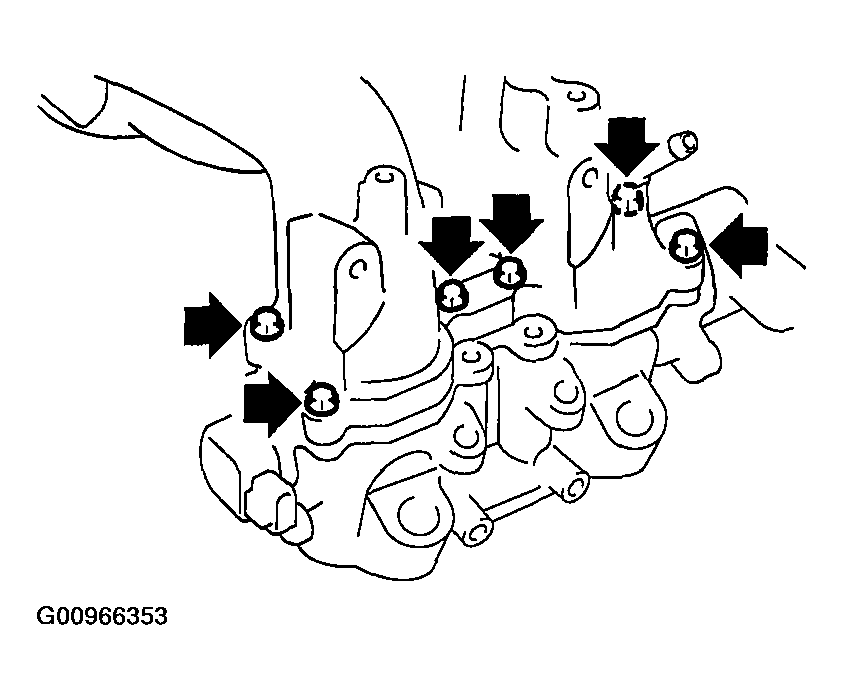

Fig 1: Identifying Tumble Generator Valve Body
G00966353Courtesy of SUBARU OF AMERICA, INC.
