Basic Diagnostic Procedure: Procedure
ENGINE

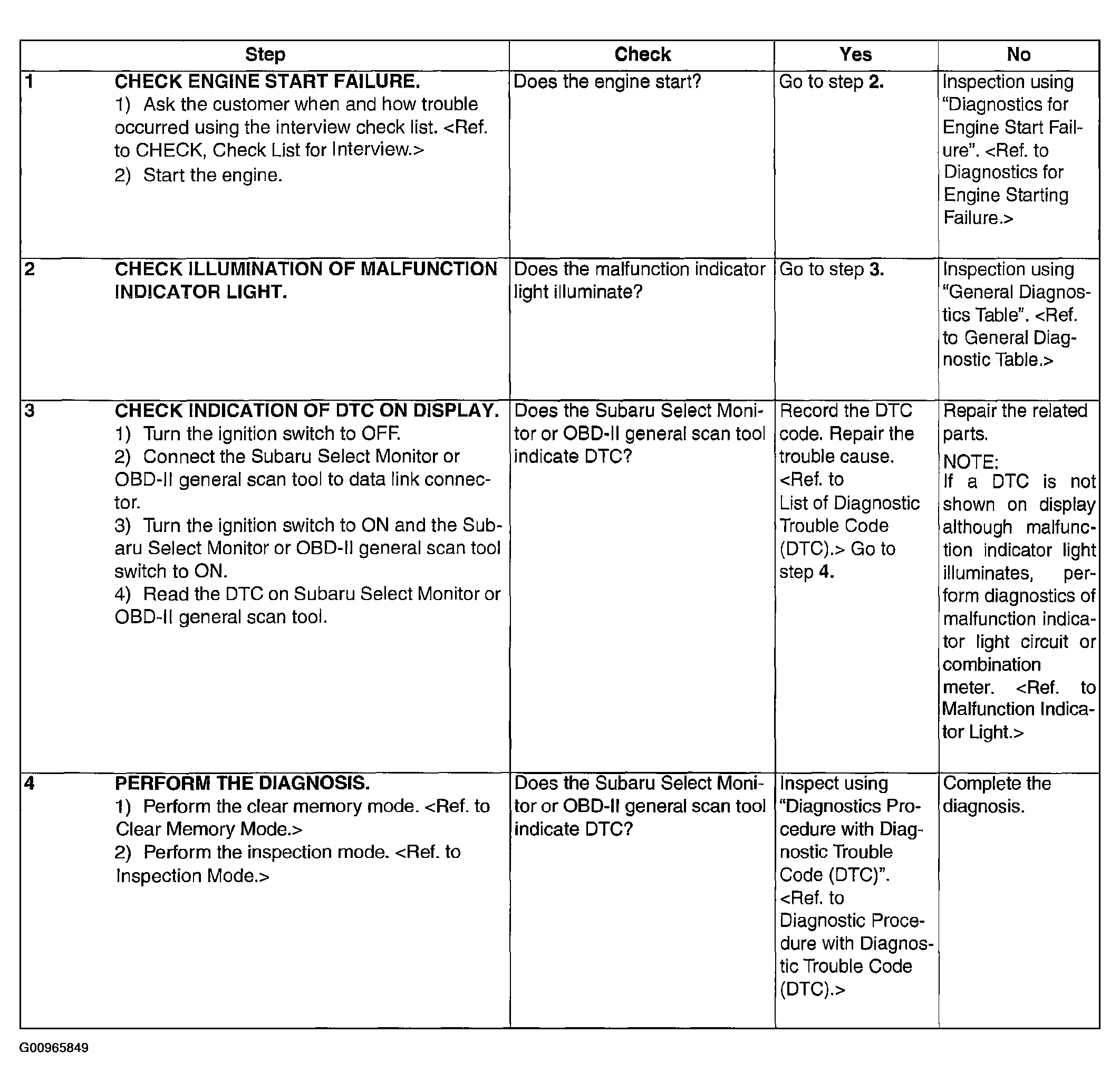

Fig 1: Basic Diagnostic Procedure
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
