Non-Turbo Model

WARNING: This page is about a different car, the 2005 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

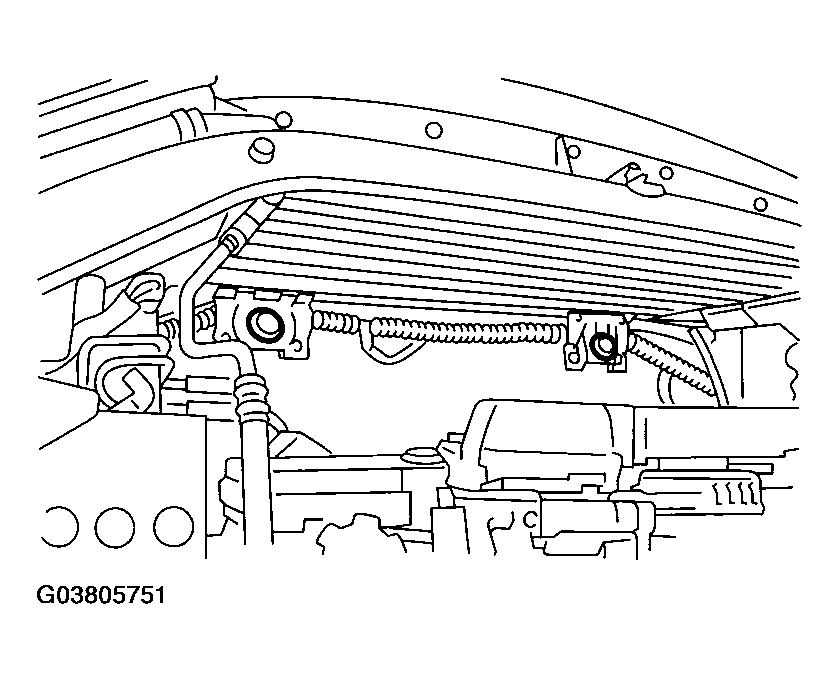

Attach the radiator lower cushions to holes on the vehicle.

Fig 1: Attaching Radiator Lower Cushions To Holes On Vehicle
Courtesy of SUBARU OF AMERICA, INC.
Install the radiator to vehicle.
NOTE: Fit pins on the lower side of radiator into cushions on the body side.

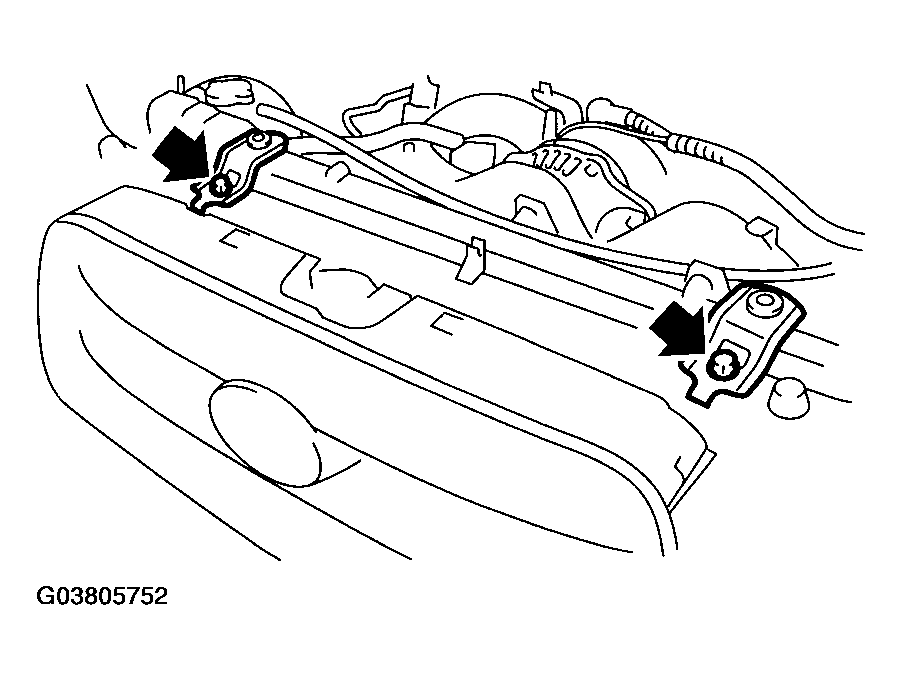

Install the radiator upper brackets and tighten bolts.
Tightening torque:

18 N.m (1.8 kgf-m, 13.0 ft-lb)

Fig 2: Installing Radiator Upper Brackets And Tightening Bolts
Courtesy of SUBARU OF AMERICA, INC.

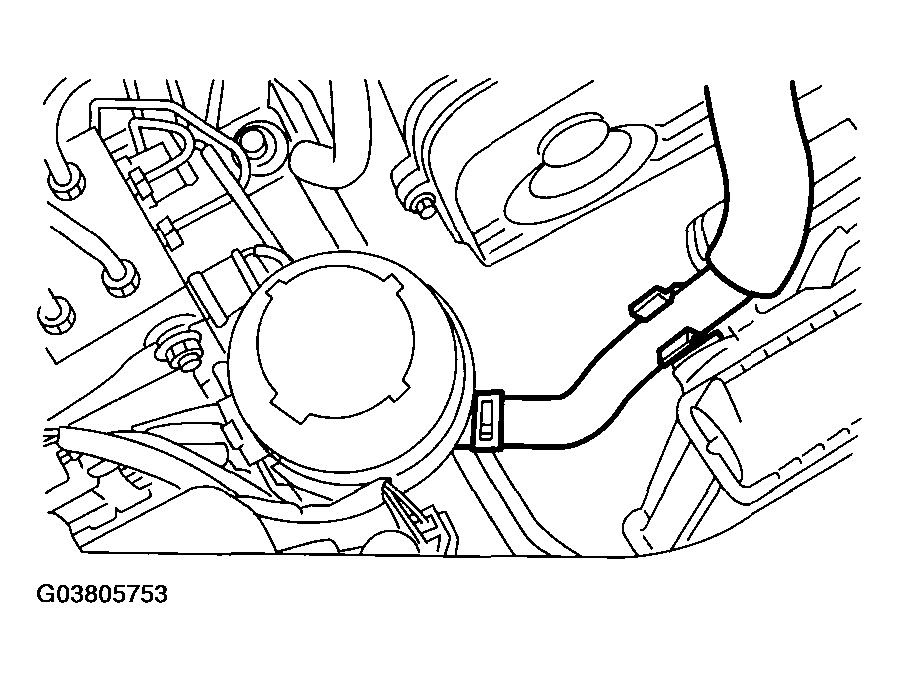

Connect the power steering hose to radiator.

Fig 3: Connecting Power Steering Hose To Radiator
Courtesy of SUBARU OF AMERICA, INC.

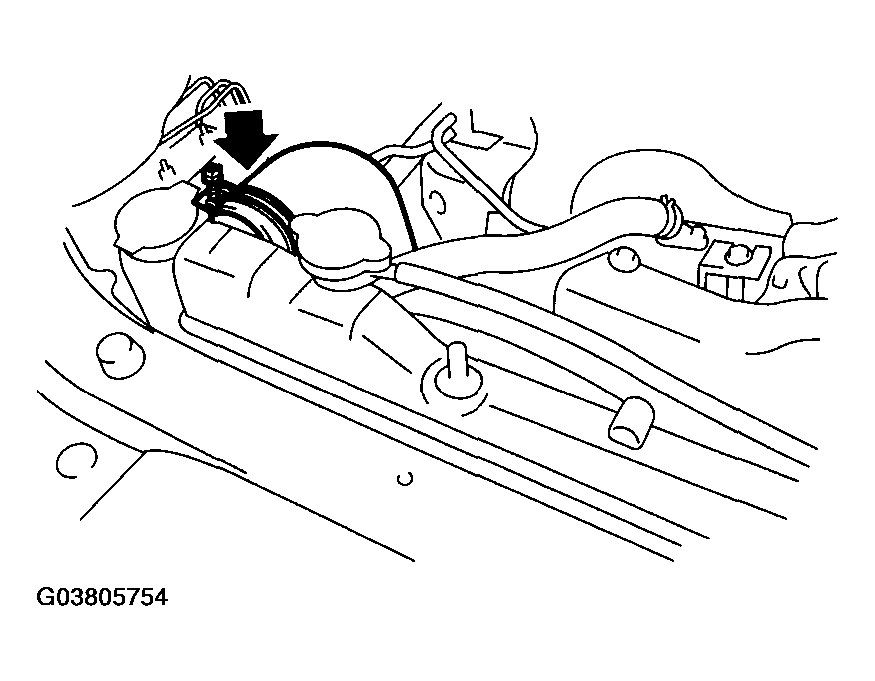

Connect the radiator inlet hose.

Fig 4: Connecting Radiator Inlet Hose
Courtesy of SUBARU OF AMERICA, INC.

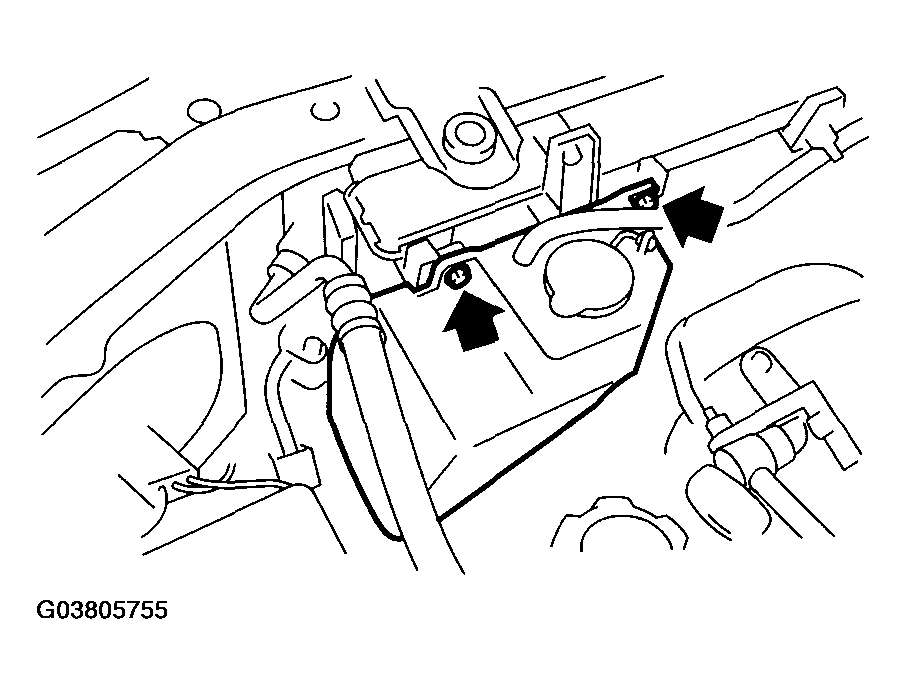

Install the reservoir tank.
Tightening torque:

7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

Fig 5: Installing Reservoir Tank
Courtesy of SUBARU OF AMERICA, INC.
Connect the overflow hose.
Lift-up the vehicle.
Connect the ATF cooler hoses. (AT model)

Fig 6: Connecting ATF Cooler Hoses
Courtesy of SUBARU OF AMERICA, INC.
Connect the radiator outlet hose.

Fig 7: Connecting Radiator Outlet Hose
Courtesy of SUBARU OF AMERICA, INC.

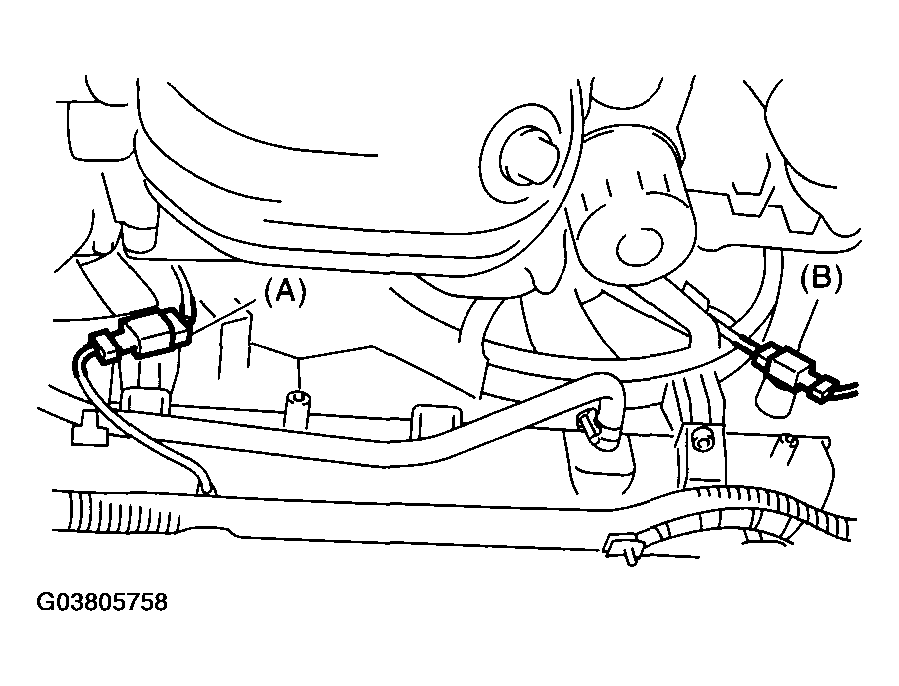

Connect the connectors to radiator main fan motor (A) and sub fan motor (B).

Fig 8: Connecting Connectors To Radiator Main Fan Motor
Courtesy of SUBARU OF AMERICA, INC.
Install the under cover.
Lower the vehicle.
Connect the battery ground cable to battery.

Fig 9: Connecting Battery Ground Cable To Battery
Courtesy of SUBARU OF AMERICA, INC.
Fill engine coolant. < Ref. to FILLING OF ENGINE COOLANT, REPLACEMENT , Engine Coolant. >
Check the ATF level. < Ref. to INSPECTION , Automatic Transmission Fluid. >
