Headlight Aiming
WARNING: This page is about a different car, the 2005 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
As this headlight is the "VISUAL AIMING TYPE", it is possible to adjust aiming only in the vertical direction. It cannot be adjusted in the horizontal direction.
CAUTION:
Turn off the light before adjusting headlight aiming. If the light is necessary to check aiming, do not turn on for more than two minutes.
NOTE:
Before checking the headlight aiming, be sure of the following:
- The area around the headlight has not sustained any accident, damage or other type of deformation.
- Vehicle is parked on level ground.
- The inflation pressure of tires is correct.
- Vehicle's gas tank is fully charged.
- Bounce the vehicle several times to normalize the suspension.
- Make certain that someone is seated in the driver's seat.
- Place a cloth over the headlight that does not require aiming adjustment.

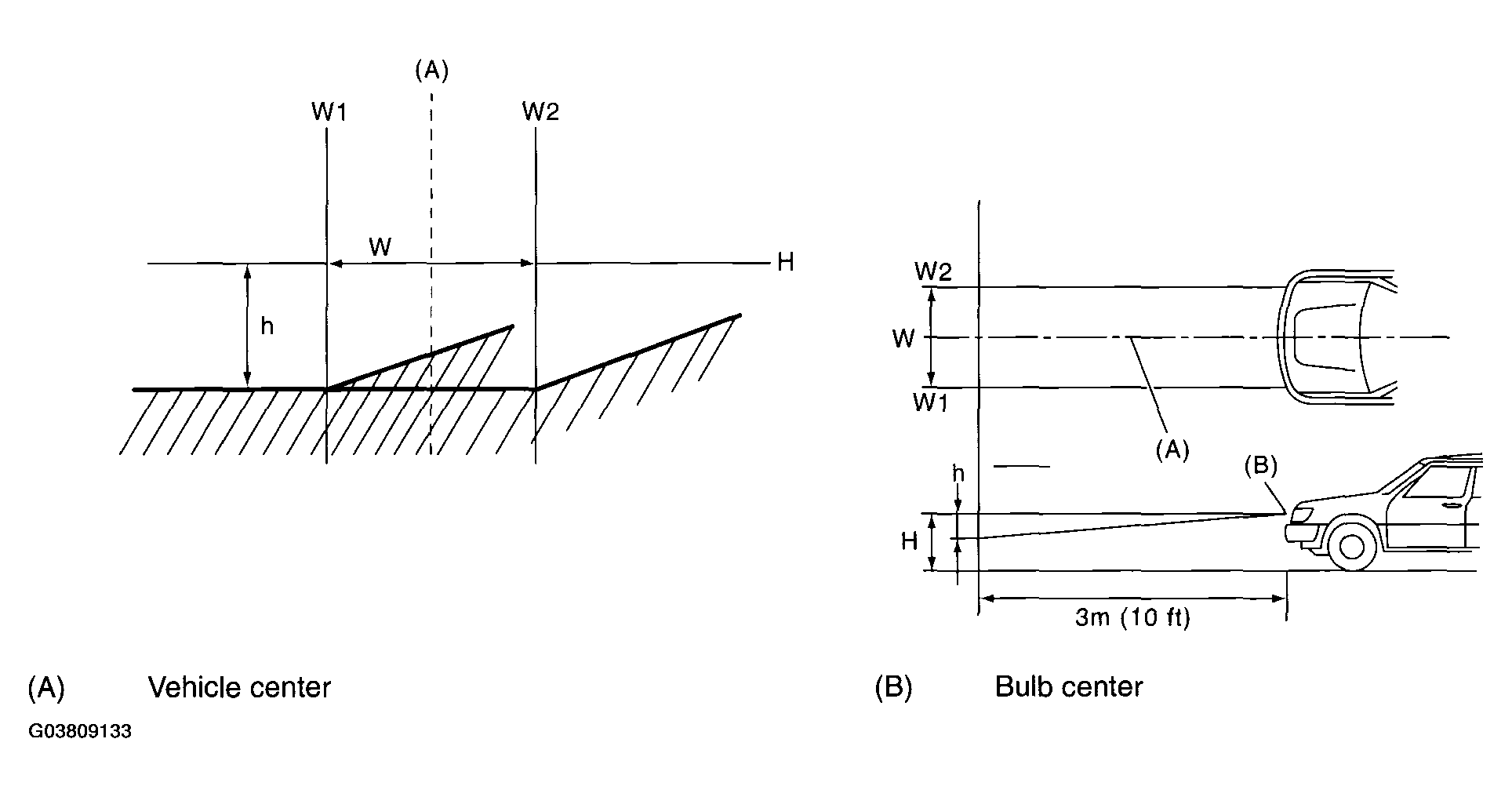

- Turn the headlight on and then adjust the low beam pattern to the following positions on the screen.
CAUTION:
Do not perform lateral headlight aiming adjustment.
NOTE:
Adjust the headlight aiming by turning the adjusting screw (A).
ADJUSTMENT DIMENSION
| W mm (in) | H mm (in) | h mm (in) at 3 m (10 ft) |
|---|---|---|
| 1,140(44.88) | 733 (28.9) | 21 (0.83) |
