Keyless Entry Control Module: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the instrument panel lower cover. Refer to REMOVAL .
  3. Remove the nut, and then remove the keyless entry control module while disconnecting connector.

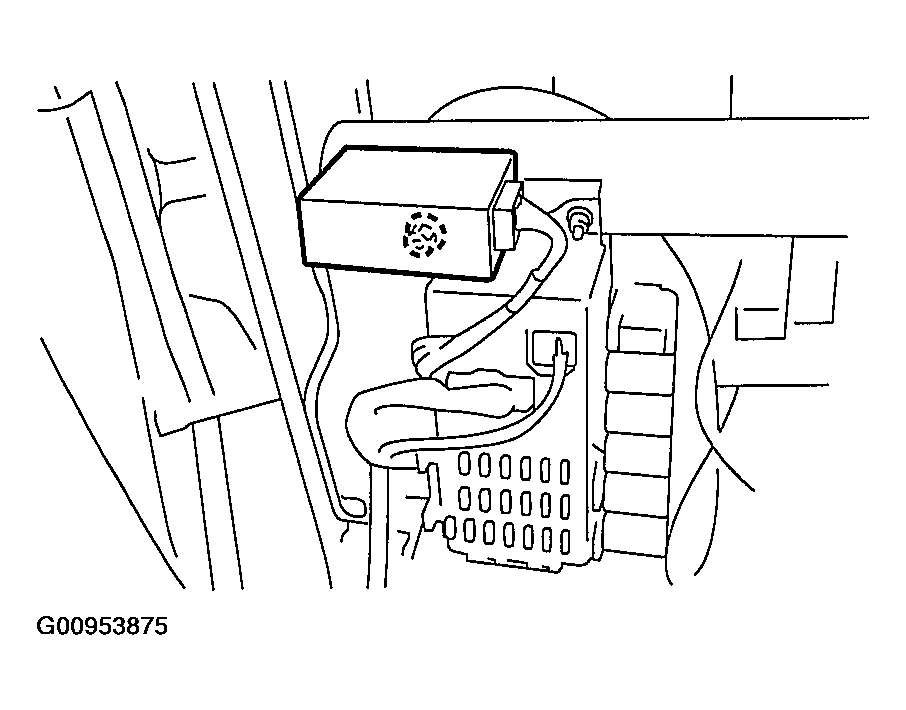

    Fig 1: Removing Keyless Entry Control Module
    G00953875Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the keyless entry control module and other electrical control module.
