Body Integrated Module

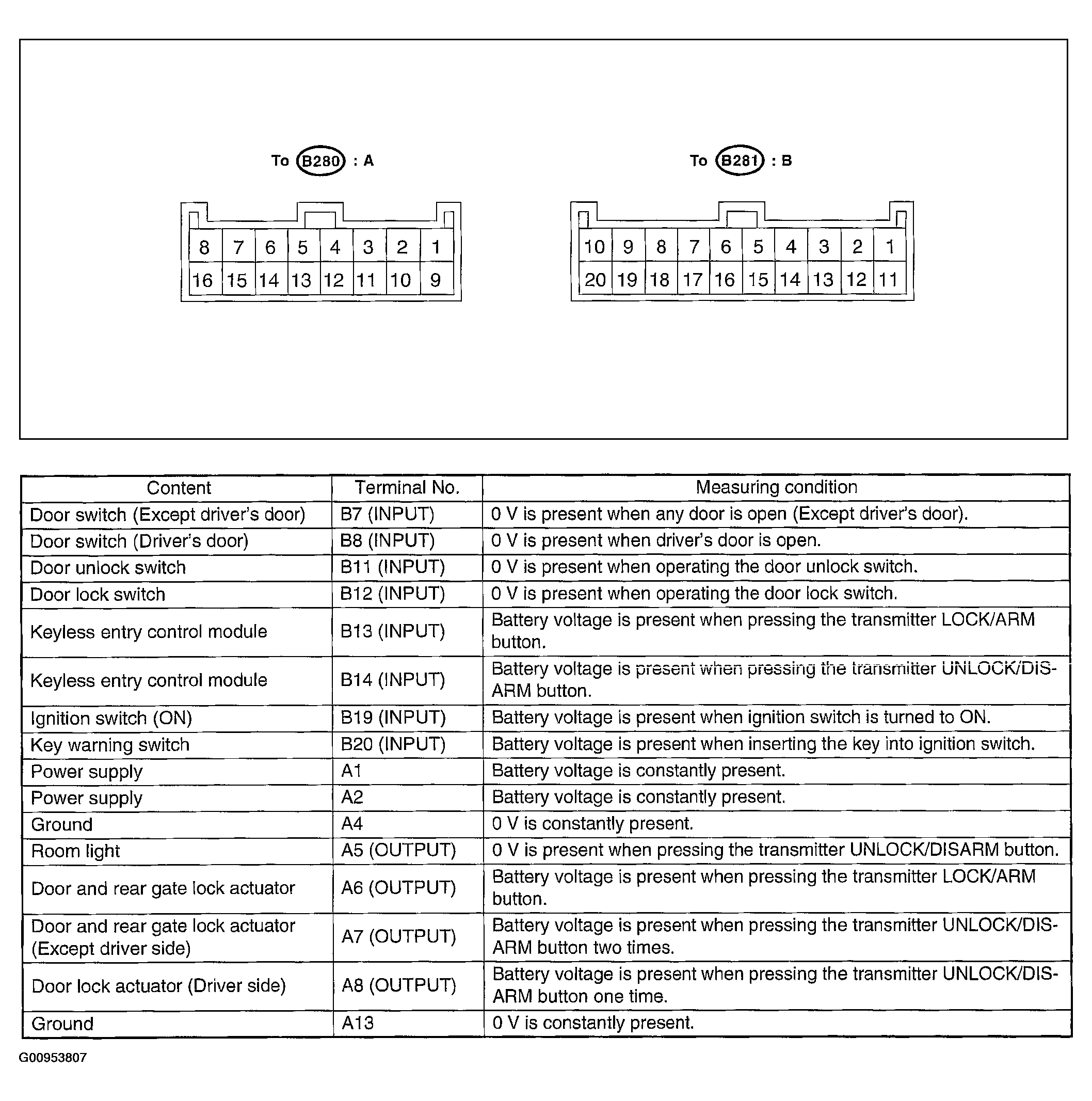

Fig 1: Identifying Body Integrated Module Terminals
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
