Check Output Signal To Body Integrated Module

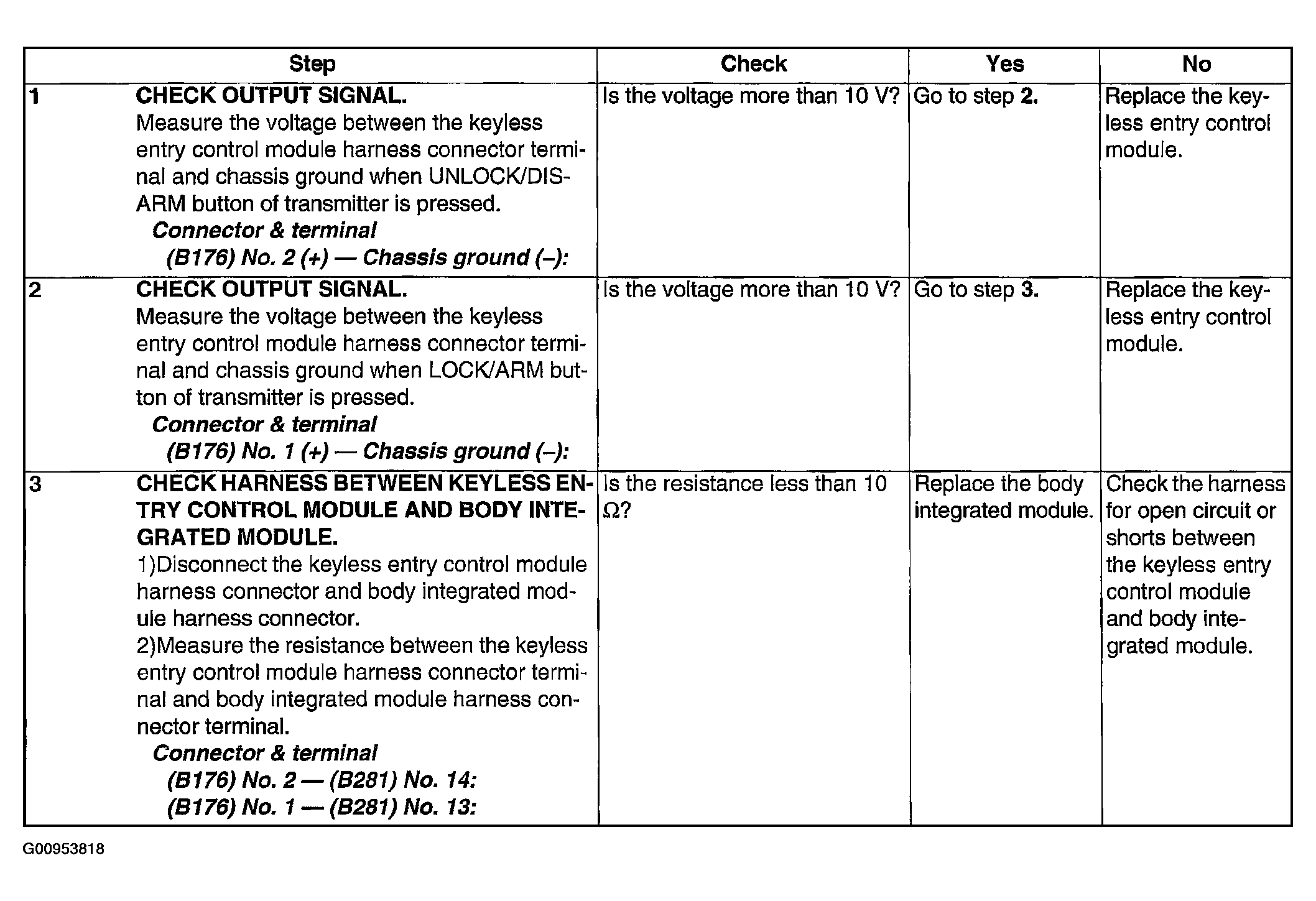

Fig 1: Identifying Output Signal To Body Integrated Module Chart
G00953818Courtesy of SUBARU OF AMERICA, INC.
