EXCEPT STi MODEL

  1. Disconnect the ground terminal from battery.
  2. Remove the console cover.

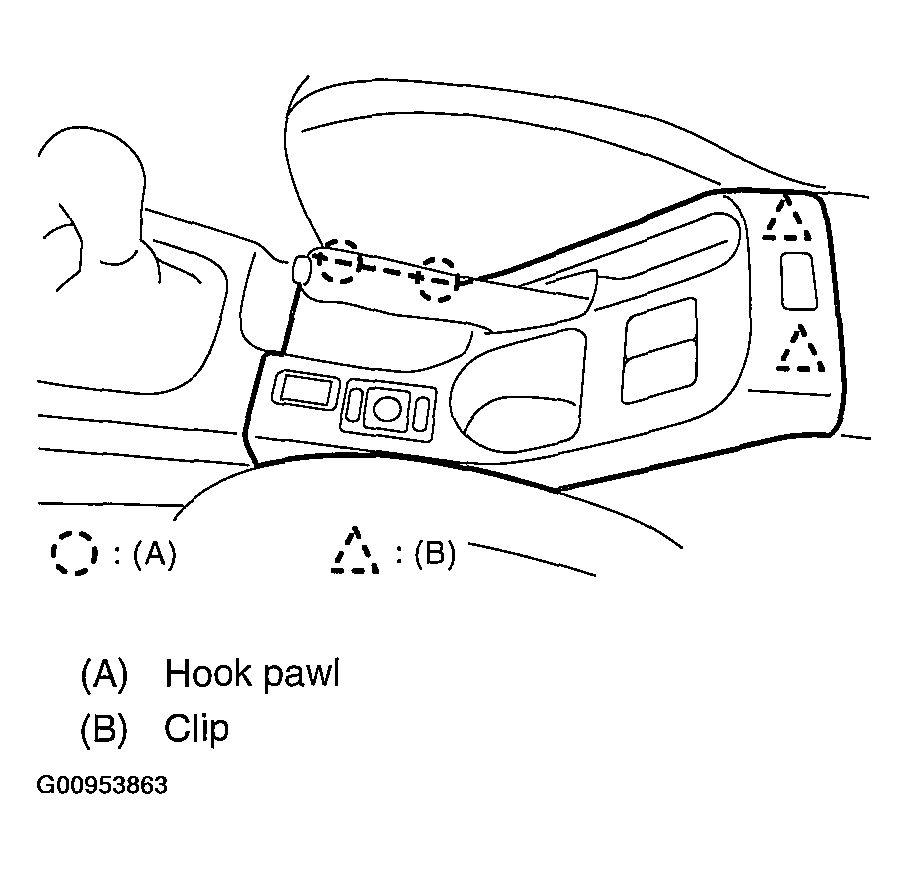

    Fig 1: Removing Console Cover
    G00953863Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect the connector from the security control module.
  4. Remove bolt (A) and loosen bolt (B).
    NOTE: Loosen bolt (B) without completely removing it.
    Fig 2: Removing Bolt
    G00953864Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the security control module.
