Electrical Specification

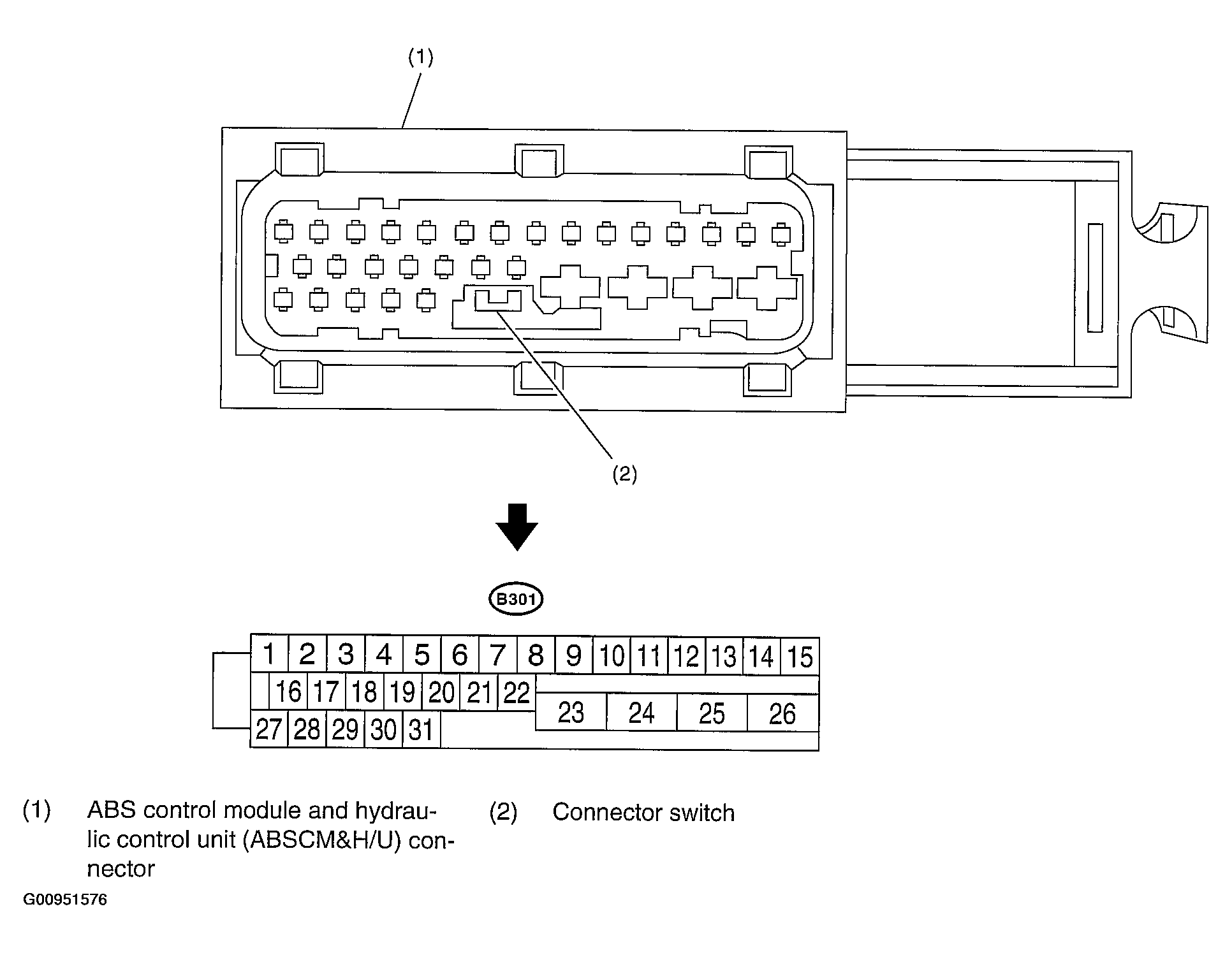

Fig 1: Identifying Control Module I/O Signal Connector
G00951576Courtesy of SUBARU OF AMERICA, INC.
NOTE:
  • The terminal numbers in ABS control module and hydraulic control unit connector are as shown in the figure.
  • When the connector is removed from ABSCM& H/U, the connector switch closes the circuit between terminal No. 22 and No. 23. The ABS warning light illuminates.

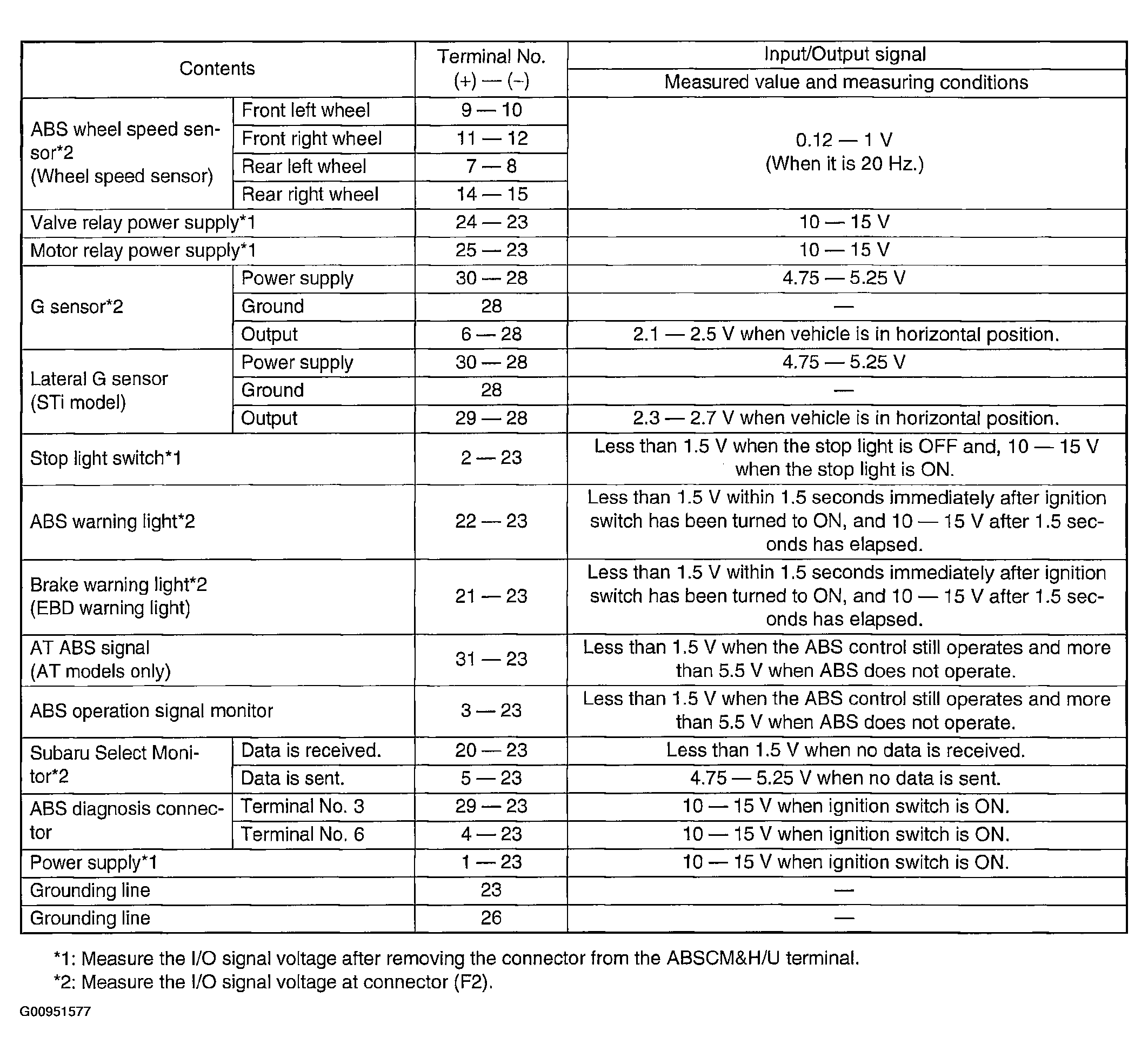

Fig 2: Terminal Table
G00951577Courtesy of SUBARU OF AMERICA, INC.
