AT Shift Lock System
>>
Inspection
>>
Shift Lock Operation
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Shift Lock Operation

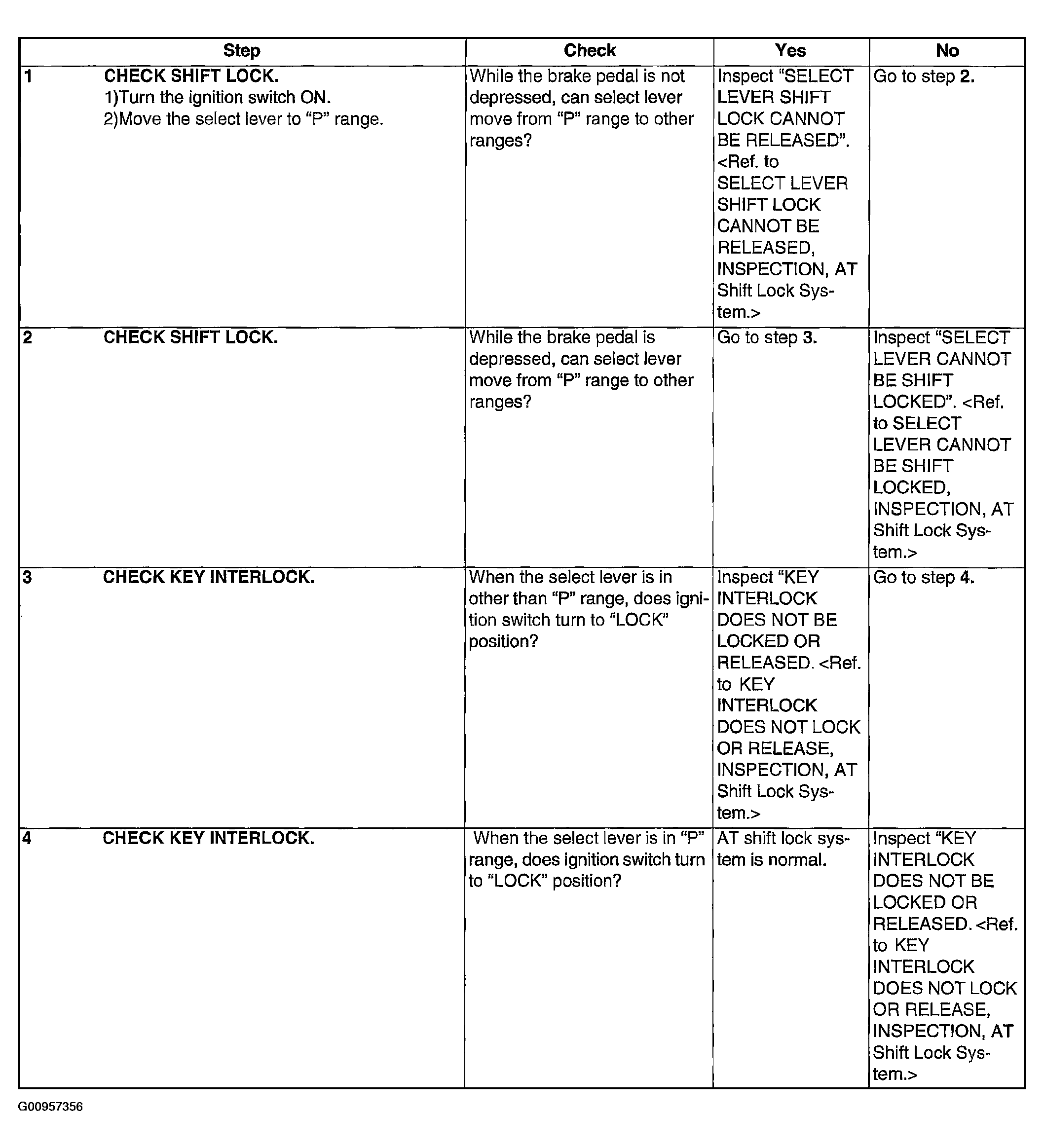

Fig 1: Shift Lock Operation Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
