Select Cable: Removal

Set the vehicle on a lift.
Set the select lever to "N" range.
Disconnect negative cable from battery.
Lift-up the vehicle.
Remove the front, center, rear exhaust pipe and muffler. (SOHC model) :
< Ref. to REMOVAL , Front Exhaust Pipe >,

< Ref. to REMOVAL , Center Exhaust Pipe >,

< Ref. to REMOVAL , Rear Exhaust Pipe > and

< Ref. to REMOVAL , Muffler >
Remove the center and rear exhaust pipes and muffler. (DOHC turbo model) :
< Ref. to REMOVAL , Center Exhaust Pipe >,

< Ref. to REMOVAL , Rear Exhaust Pipe > and

< Ref. to REMOVAL , Muffler >
Remove the heat shield cover. (If equipped)

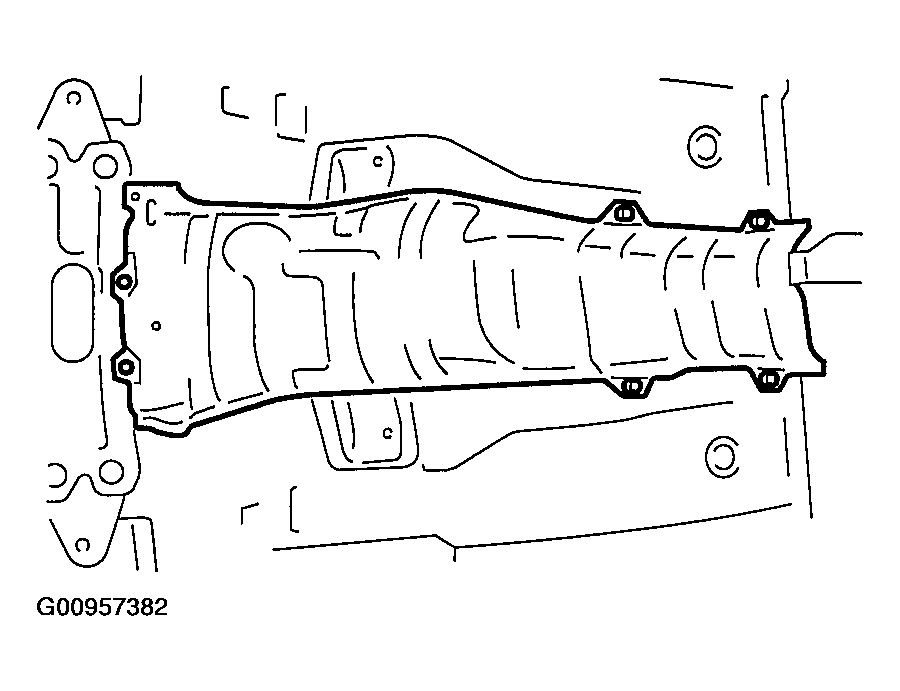

Fig 1: Removing Heat Shield Cover (If Equipped)
Courtesy of SUBARU OF AMERICA, INC.
Remove the snap pin and washer from range select lever.

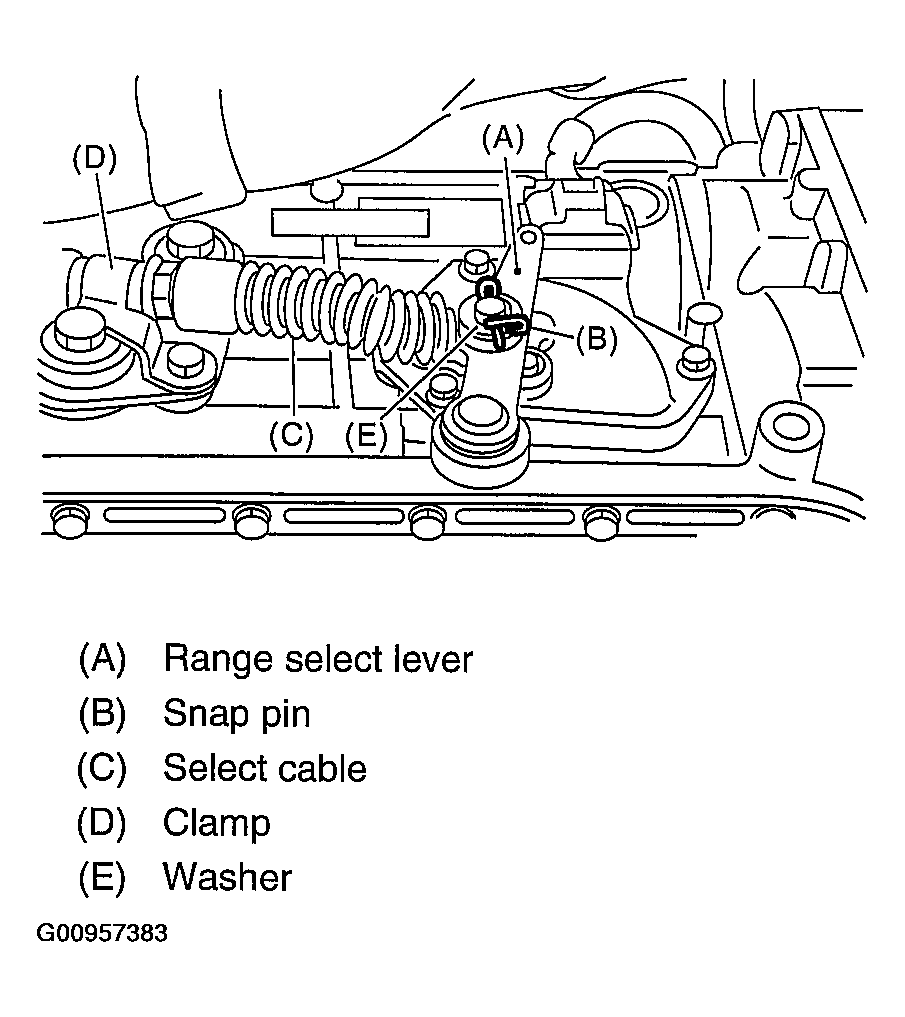

Fig 2: Removing Snap Pin & Washer From Range Select Lever
Courtesy of SUBARU OF AMERICA, INC.
Remove the plate assembly from transmission case.

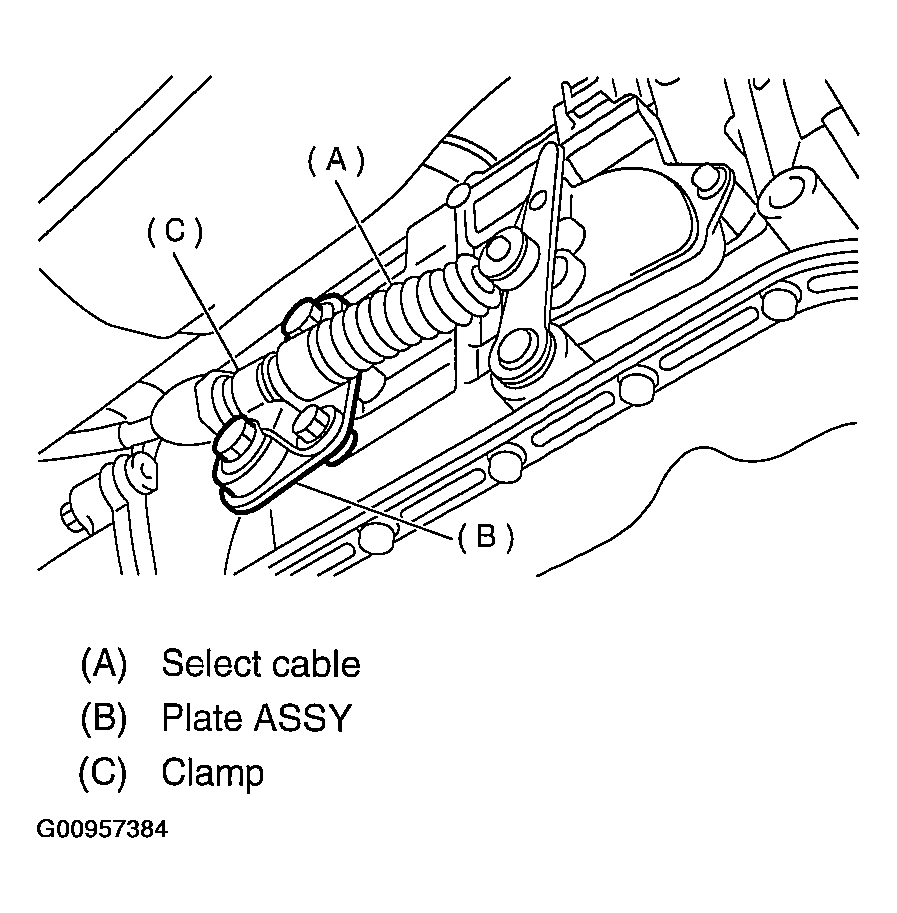

Fig 3: Removing Plate Assembly From Transmission Case
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the cable from select lever, and then remove the cable bracket.

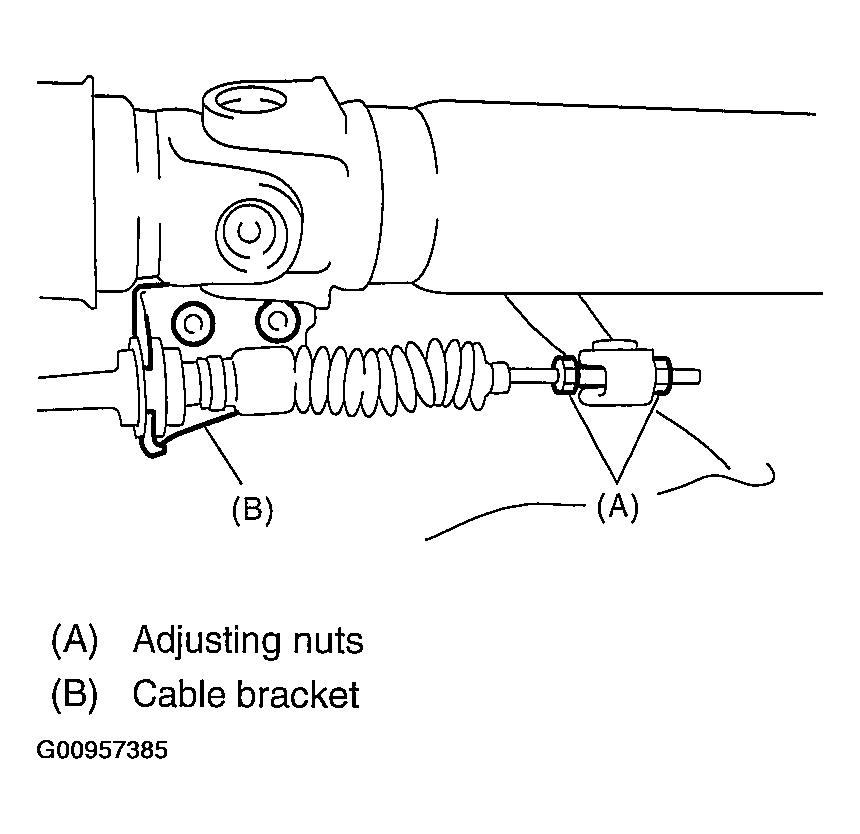

Fig 4: Disconnecting Cable From Select Lever & Remove Cable Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove the select cable from plate assembly.
