Select Lever: Disassembly

Remove the packing.

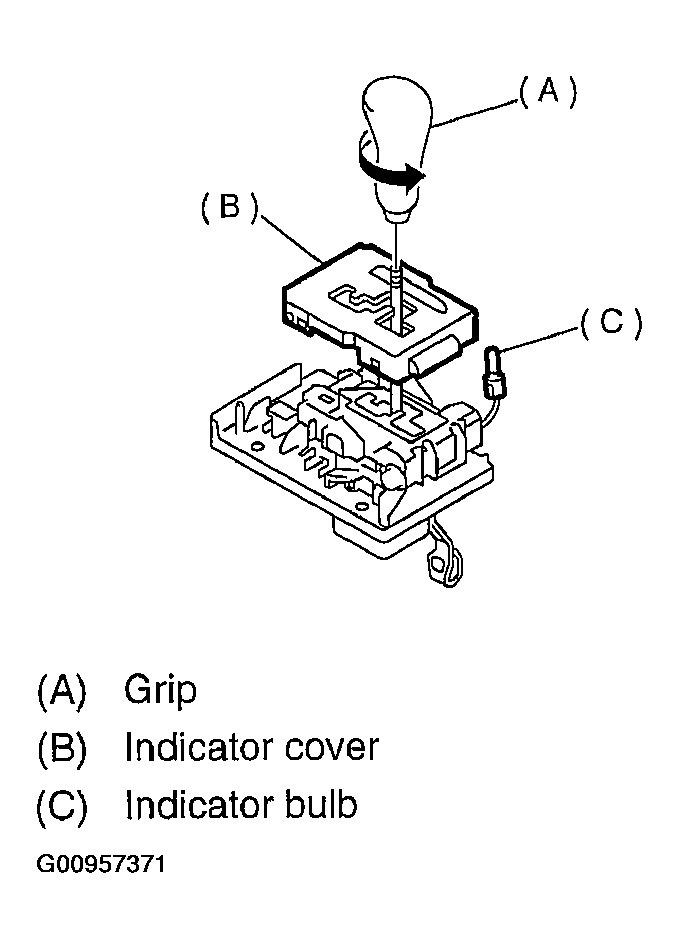

Remove the grip.
Remove the indicator bulb from indicator cover.
Remove the indicator cover.

Fig 1: Removing Indicator Bulb From Indicator Cover
Courtesy of SUBARU OF AMERICA, INC.

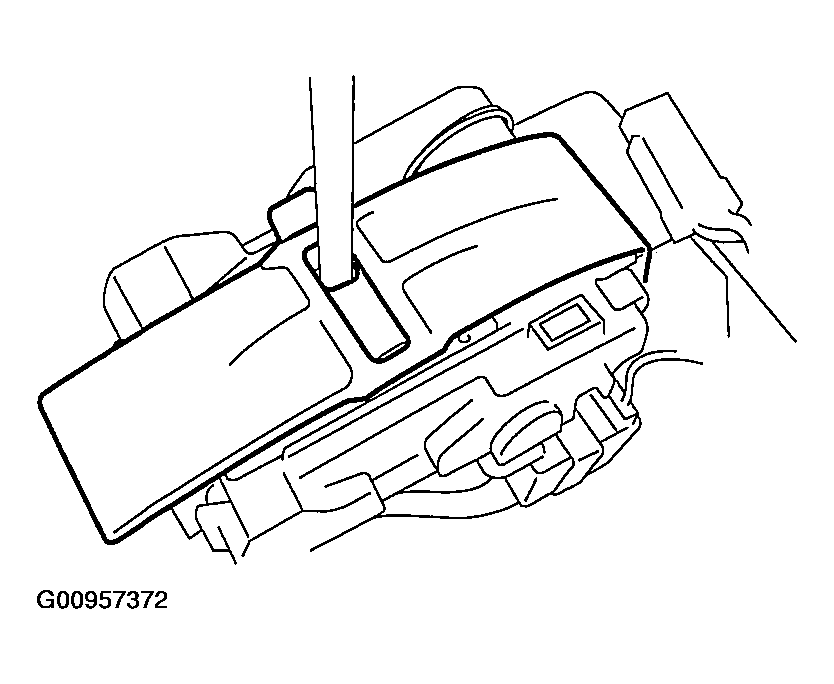

Remove the blind.

Fig 2: Removing Sift Level Blind
Courtesy of SUBARU OF AMERICA, INC.

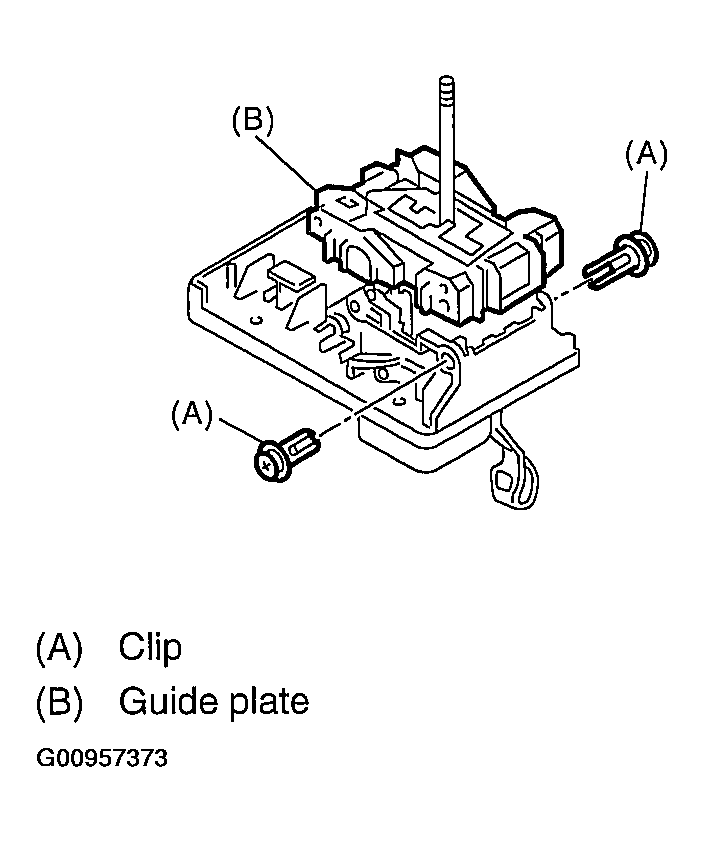

Remove the clip, and then remove the guide plate.

Fig 3: Removing Clip & Guide Plate
Courtesy of SUBARU OF AMERICA, INC.

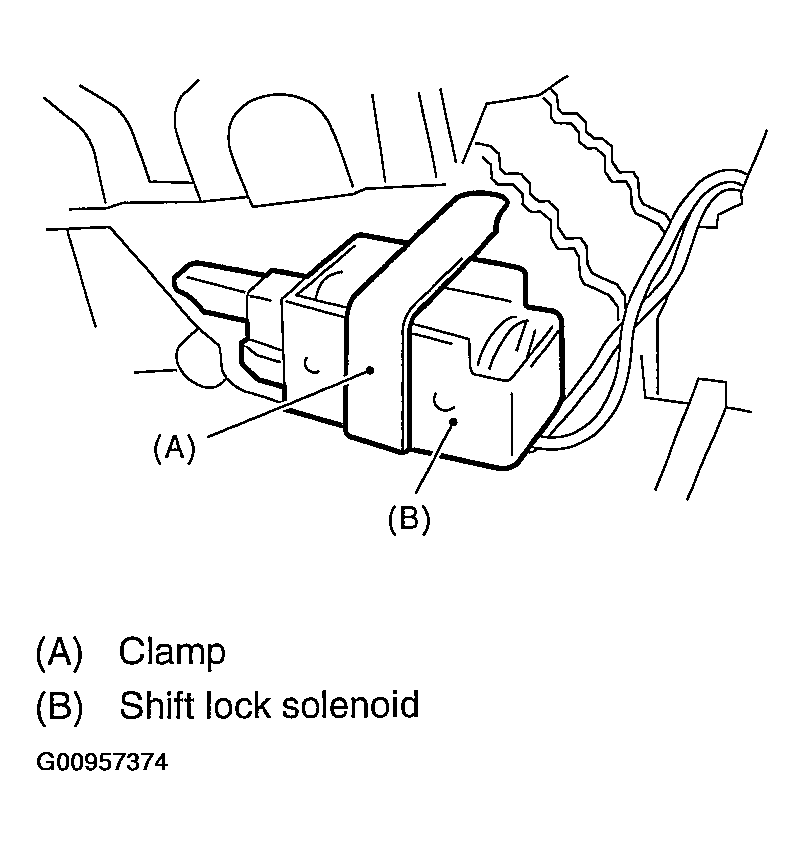

Remove the clamp, and then remove the shift lock solenoid.

Fig 4: Removing Clamp & Shift Lock Solenoid
Courtesy of SUBARU OF AMERICA, INC.

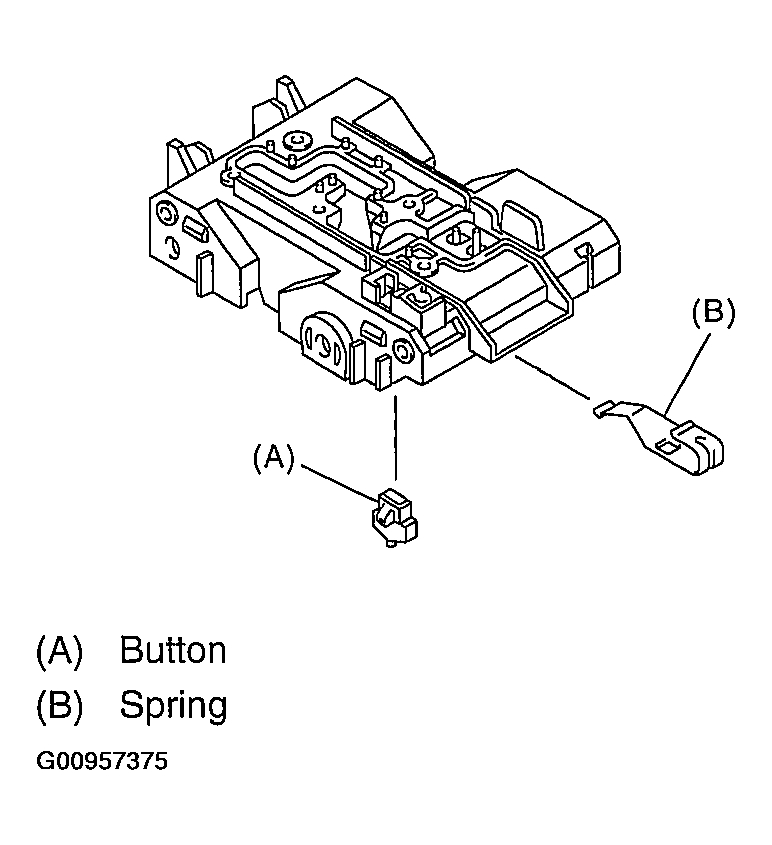

Remove the spring, and button.

Fig 5: Removing Spring, & Button
Courtesy of SUBARU OF AMERICA, INC.

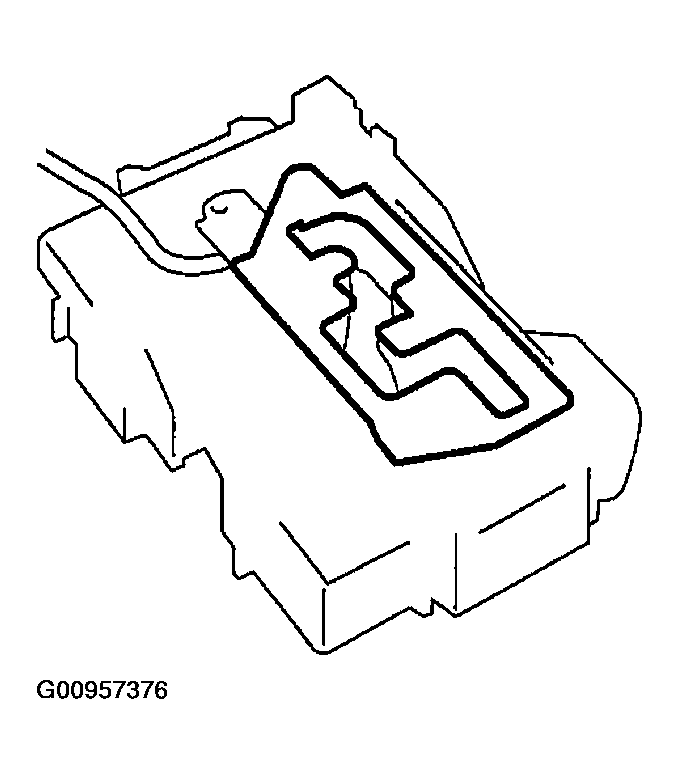

Remove the cushion plate.

Fig 6: Removing Cushion Plate
Courtesy of SUBARU OF AMERICA, INC.

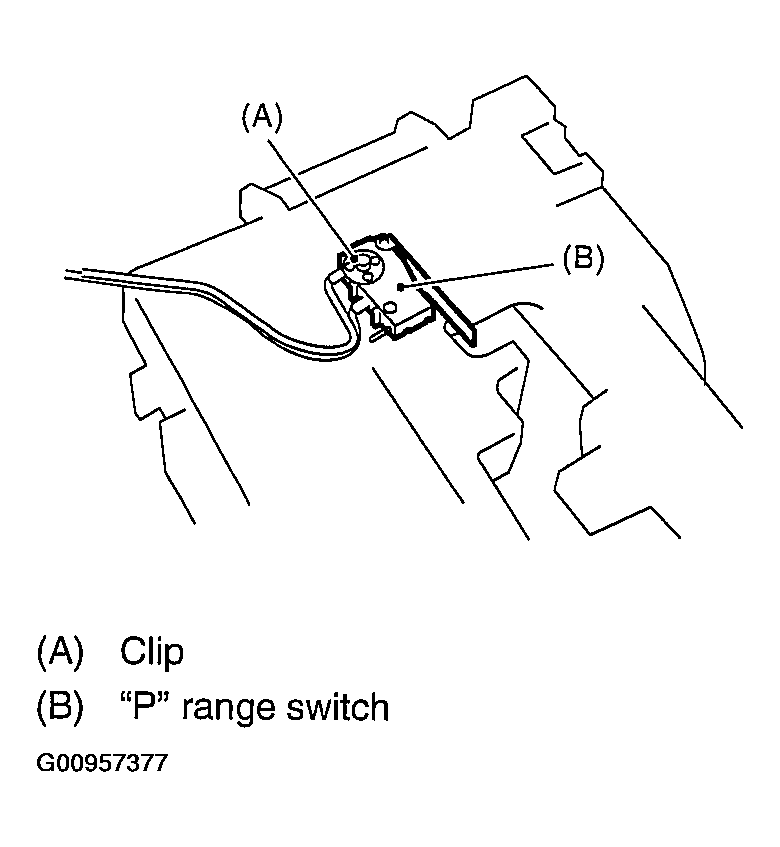

Remove the clip, and then remove the "P" range switch.

Fig 7: Removing Clip & Range Switch
Courtesy of SUBARU OF AMERICA, INC.

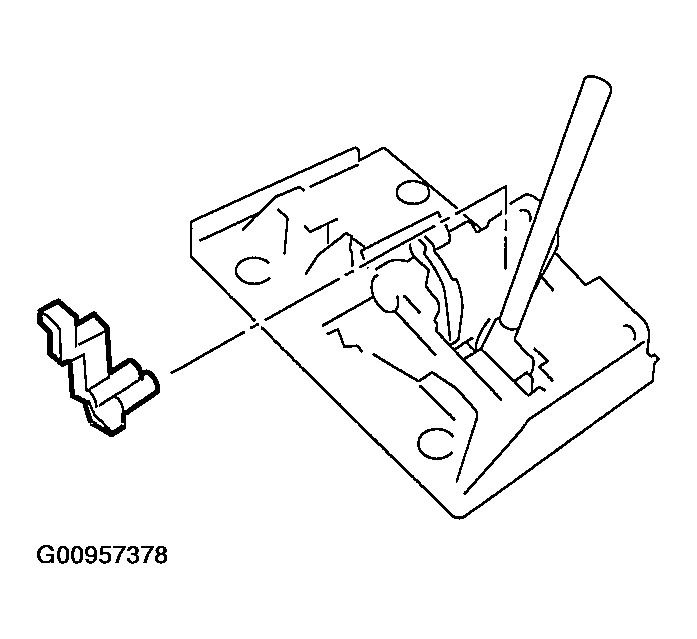

Remove the lock plate.

Fig 8: Removing Lock Plate
Courtesy of SUBARU OF AMERICA, INC.

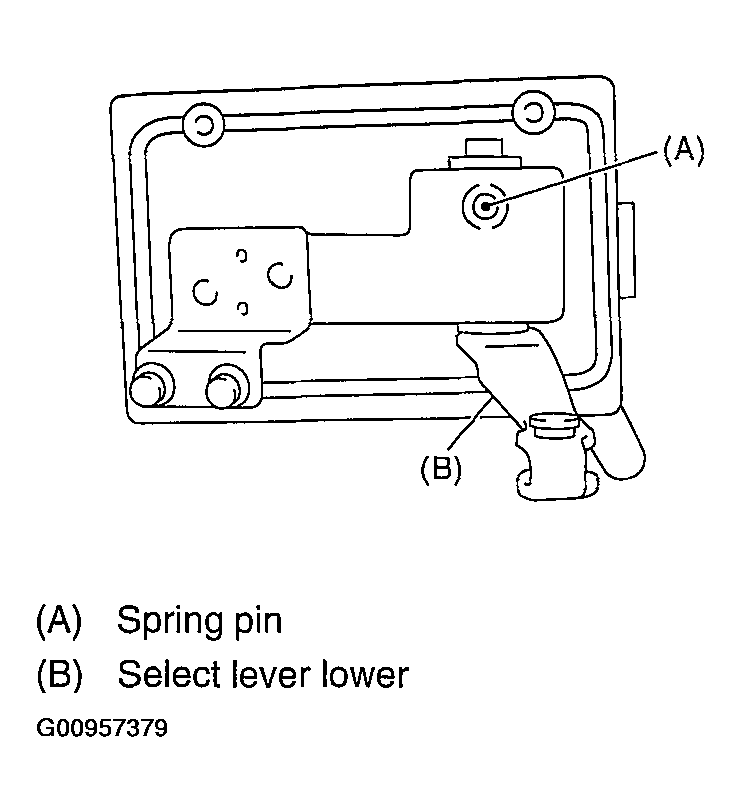

Remove the grommet, and then remove the spring pin.

Fig 9: Removing Grommet & Spring Pin
Courtesy of SUBARU OF AMERICA, INC.

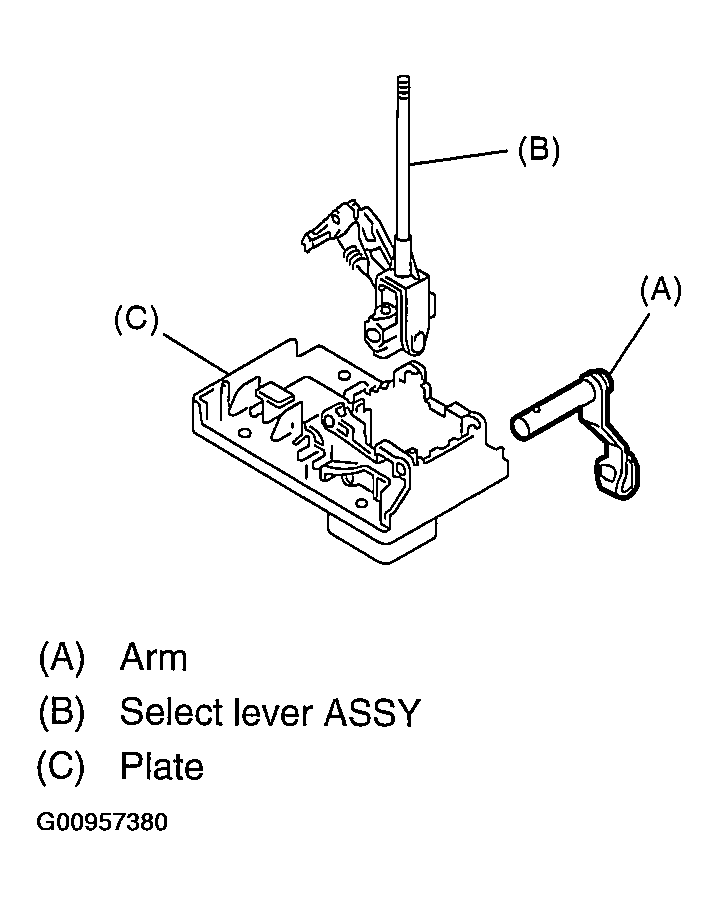

Remove the arm, and then remove the select lever assembly from guide plate.

Fig 10: Removing Arm, & Select Lever Assembly From Guide Plate
Courtesy of SUBARU OF AMERICA, INC.

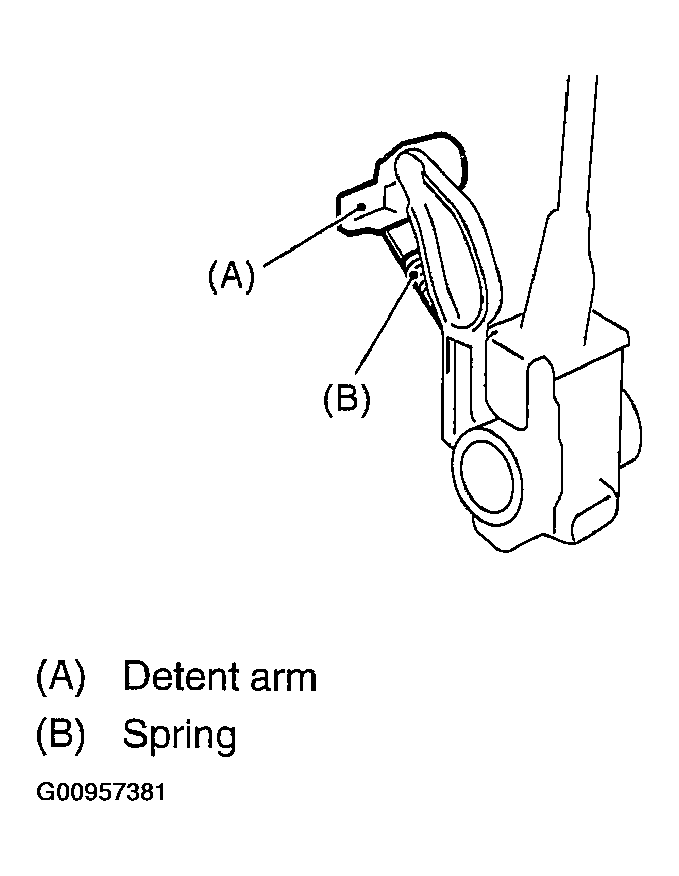

Remove the spring and detent arm.

Fig 11: Removing Spring & Detent Arm
Courtesy of SUBARU OF AMERICA, INC.
