Intake Air Temperature Sensor: Removal

  1. Disconnect the ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G00800561Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the connector from intake air temperature sensor.
  3. Remove the intake air temperature sensor from air cleaner case.

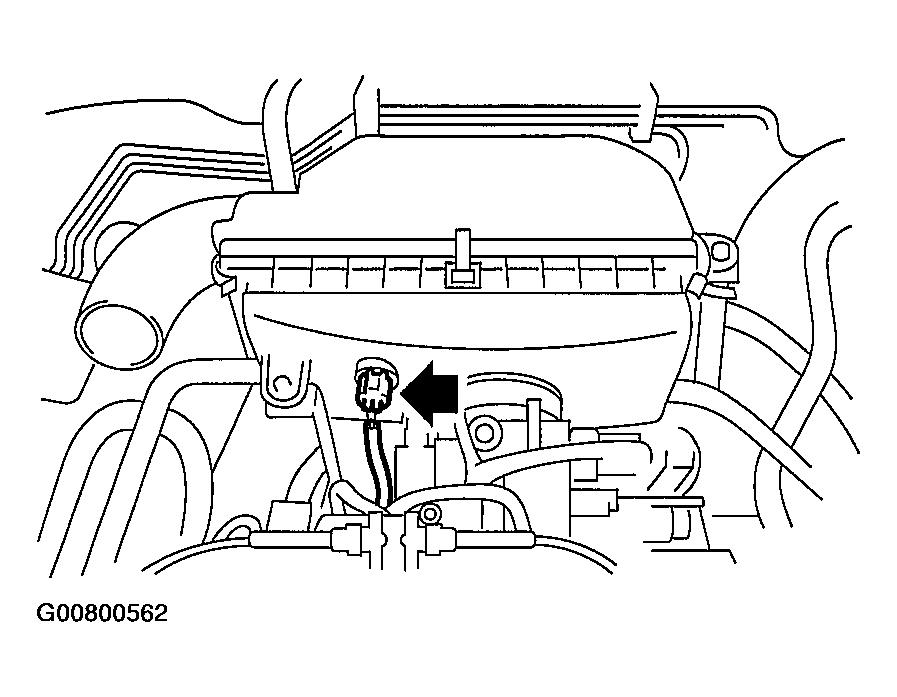

    Fig 2: Removing Intake Air Temperature Sensor From Air Cleaner Case
    G00800562Courtesy of SUBARU OF AMERICA, INC.
