Throttle Position Sensor: Removal

Disconnect the ground cable from battery.

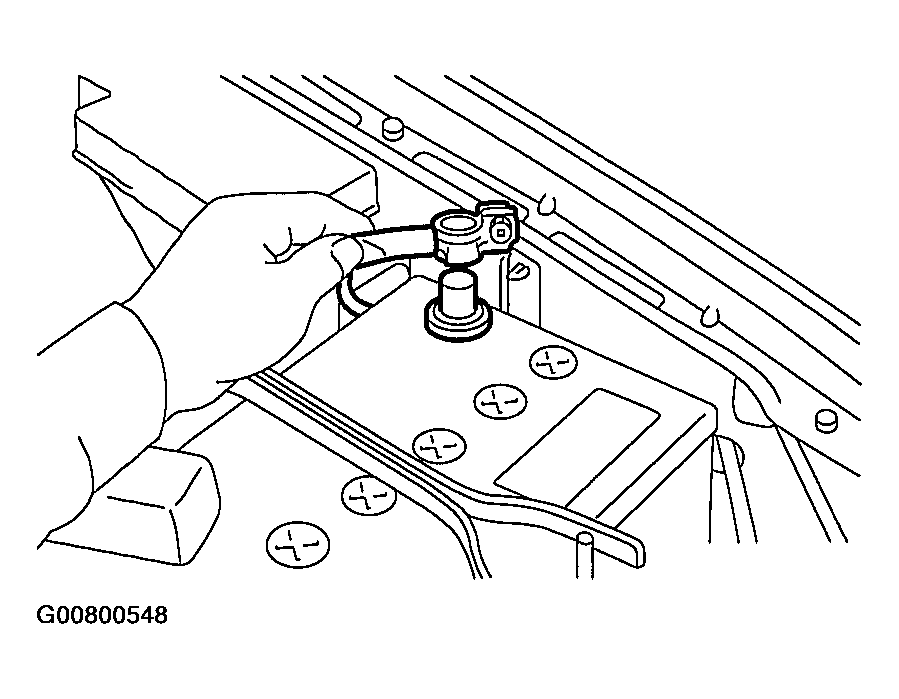

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connectors from throttle position sensor.

Fig 2: Disconnecting Connectors From Throttle Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove the throttle position sensor holding screws, and remove it.

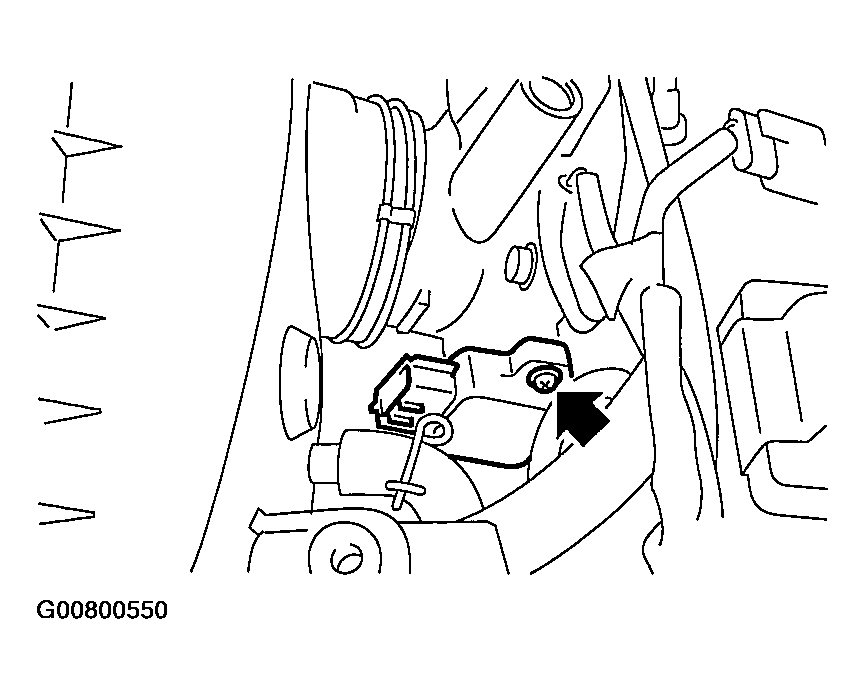

Fig 3: Identifying Throttle Position Sensor Holding Screws
Courtesy of SUBARU OF AMERICA, INC.
