Air Flow Meter/Sensor: Service and Repair

Air Flow Sensor

REMOVAL

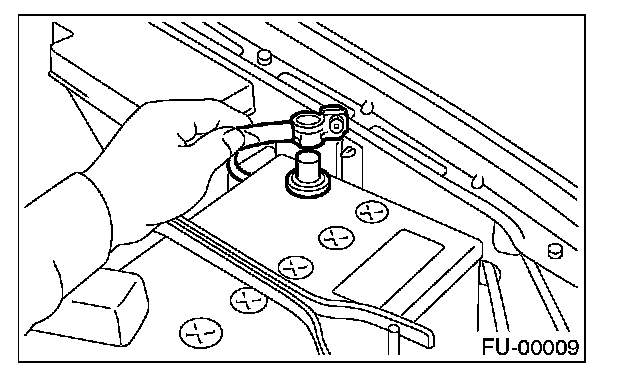

1. Disconnect the ground cable from battery.

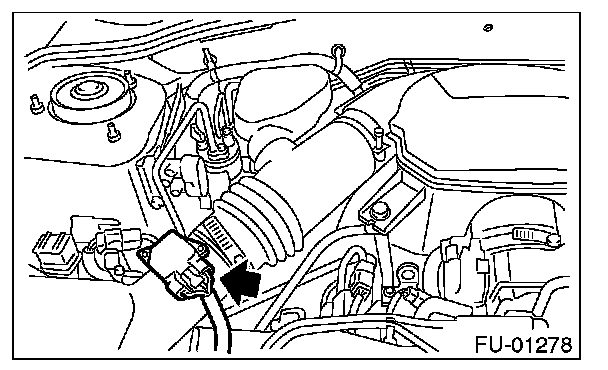

2. Disconnect the connector from the air flow and intake air temperature sensor.
3. Remove the air flow and intake air temperature sensor from air cleaner case.

INSTALLATION
Install in the reverse order of removal.
Tightening torque: 1.0 N.m (0.10 kgf.m, 0.7 ft.lb)
