Procedures (U5/Low Emissions)

REMOVAL

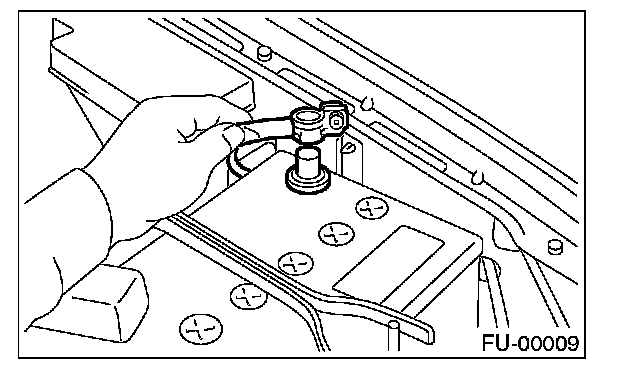

1. Disconnect battery ground cable.
2. Remove lower cover of driver side.




3. Disconnect connectors from main relay.
4. Remove main relay from bracket.

INSTALLATION
Install in the reverse order of removal.
