Cruise Control Command Switch: Inspection

Measure cruise control command switch resistance.

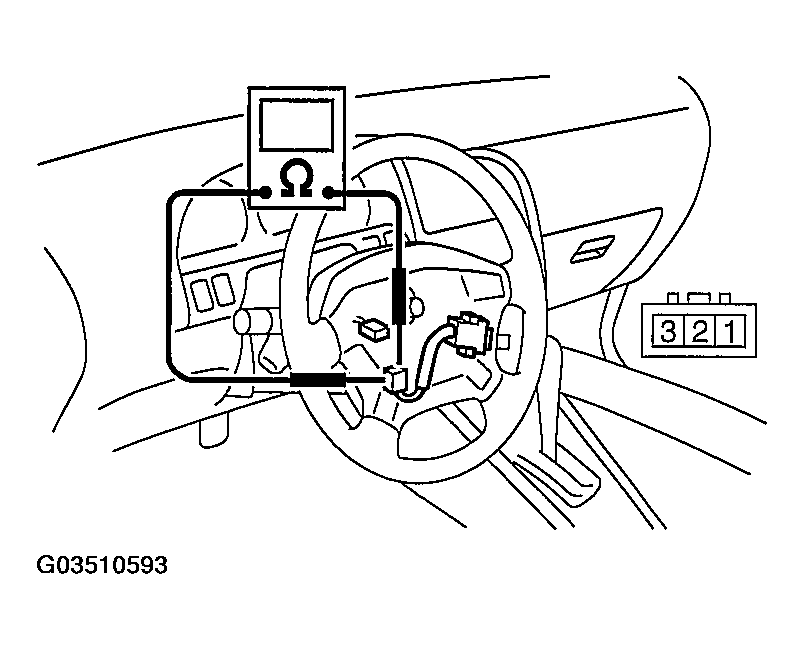

Fig 1: Measuring Cruise Control Command Switch Resistance

Courtesy of SUBARU OF AMERICA, INC.

Check continuity between cruise control command switch terminals.

TERMINAL SELECTOR POSITION CHART

Switch	Position	Terminal No.	Standard
CANCEL	ON	1 (+) and 2 (-)	Less than 1 ohm
CANCEL	ON	1 (+) and 3 (-)	Less than 1 ohm
SET/COAST	OFF	1 and 2	More than 1 ohm
SET/COAST	ON	1 and 2	Less than 1 ohm
RESUME/ACCEL	OFF	1 and 3	More than 1 ohm
RESUME/ACCEL	ON	1 and 3	Less than 1 ohm

If NG, replace cruise control command switch.
