Cruise Control Command Switch: Removal

WARNING: Before servicing, be sure to read the notes in the AB section for proper handling of the driver's airbag module. Refer to REMOVAL & INSTALLATION , General Description .

Set front wheels in straight ahead position.
Turn ignition switch OFF.
Disconnect ground cable from battery and wait for at least 20 seconds before starting work.
Using TORX(R) BIT T30 (Tamper resistant type), loosen two TORX(R) bolts which secure driver's air-bag module.

Fig 1: Disconnecting Ground Cable From Battery & Wait For At Least Seconds Before Starting Work
Courtesy of SUBARU OF AMERICA, INC.
Disconnect airbag module connector on back of airbag module.
Remove horn switch from steering wheel as shown.

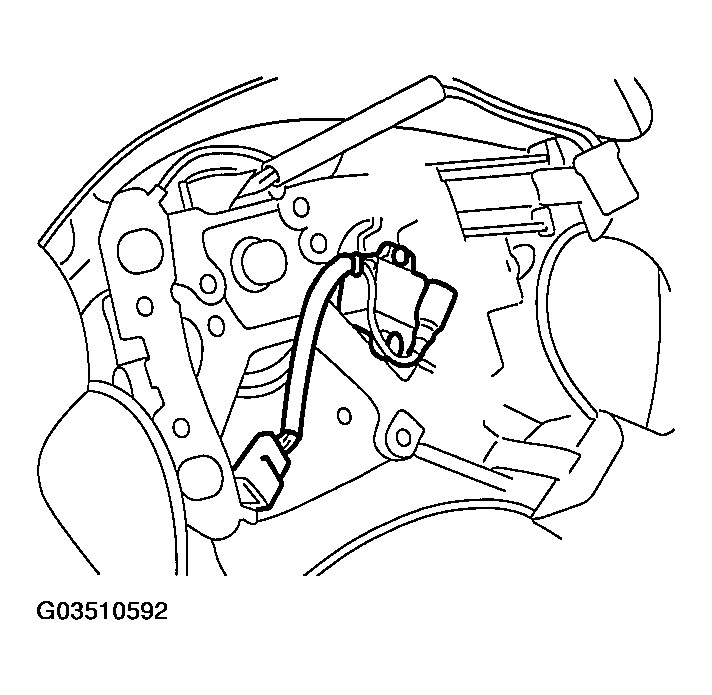

Fig 2: Disconnecting Airbag Module Connector On Back Of Airbag Module
Courtesy of SUBARU OF AMERICA, INC.
Disconnect horn and cruise control command switch connector, then remove cruise control command switch.

Fig 3: Disconnecting Horn & Cruise Control Command Switch Connector
Courtesy of SUBARU OF AMERICA, INC.
