Audio System: Description: Notes

The Mclntosh(tm) system consists of a head unit, a speaker amplifier, two tweeters, four mid-range speakers and a woofer. The speaker amplifier is located below the front passengers seat and the woofer at the right rear quarter trim (wagon models) or left rear shelf trim (sedan models).

The output power to each of the four channels is 24 W and that to the woofer is 60 W. The total harmonic distortion of the system is as low as 0.05% which is comparable to that of high-class home-use audio systems.

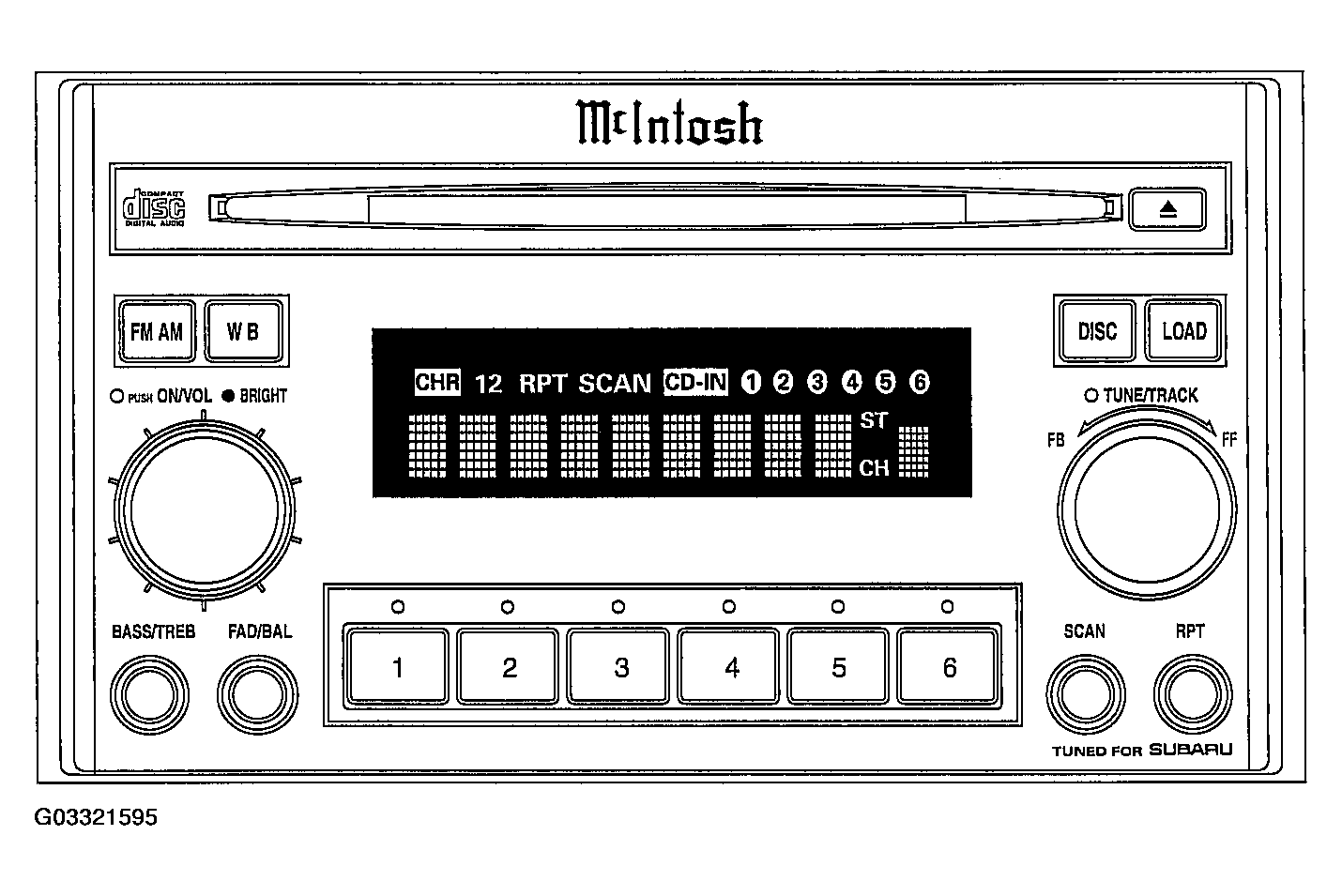

Fig 1: Displaying Audio System Control Panel
G03321595Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Identifying Speaker Amplifier
G03321596Courtesy of SUBARU OF AMERICA, INC.
Fig 3: Identifying Woofer
G03321597Courtesy of SUBARU OF AMERICA, INC.
