Switch Back Gate Lock

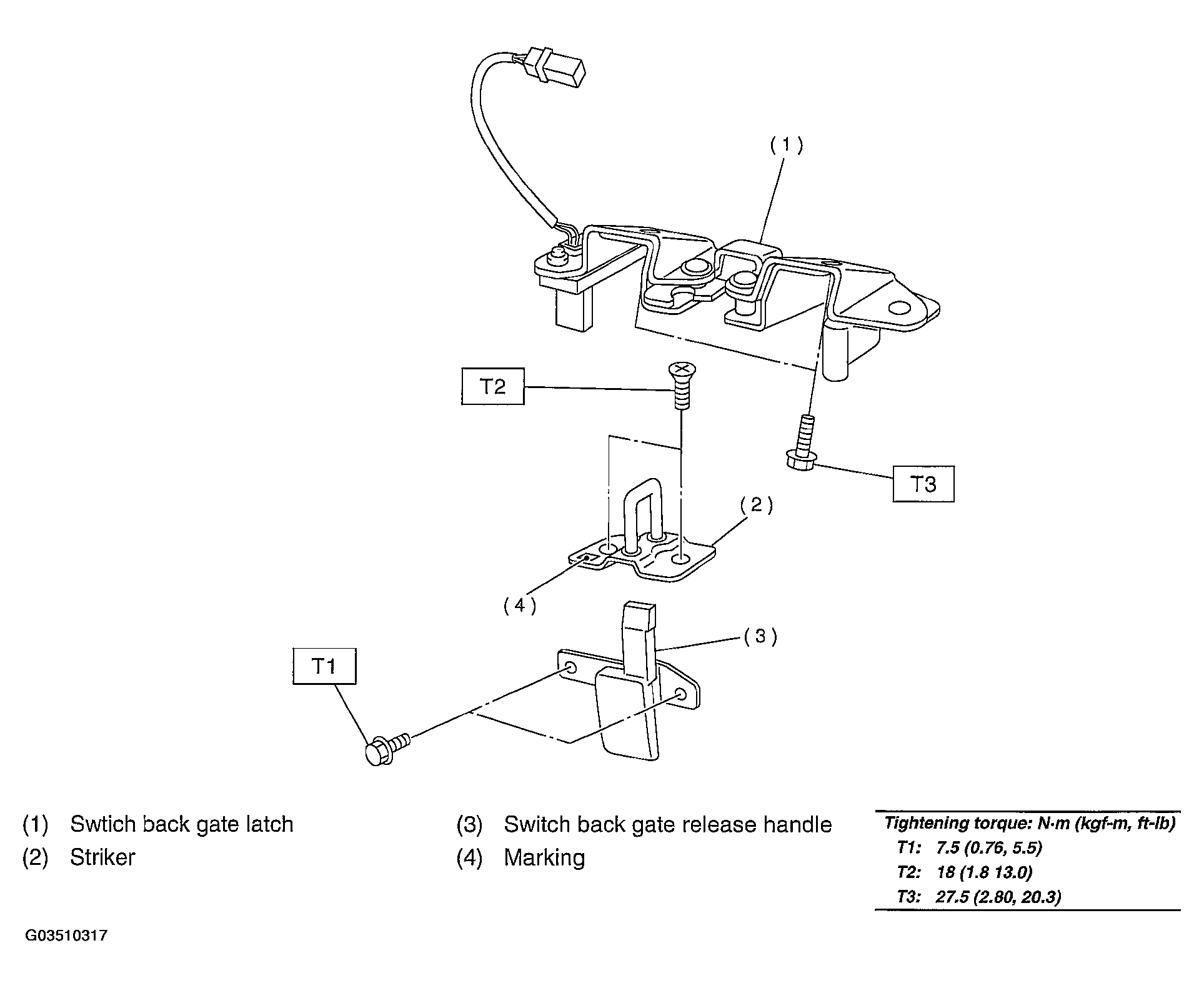

Fig 1: Identifying Switch Back Gate Lock Components
G03510317Courtesy of SUBARU OF AMERICA, INC.
NOTE: When installing striker, mount with marked portion facing the vehicle front.
