Rear Gate

  1. Remove the rear gate lower trim. Refer to REMOVAL , Rear Gate Trim.
  2. Remove the rod clamp. Remove the nut. Replace the key cylinder.

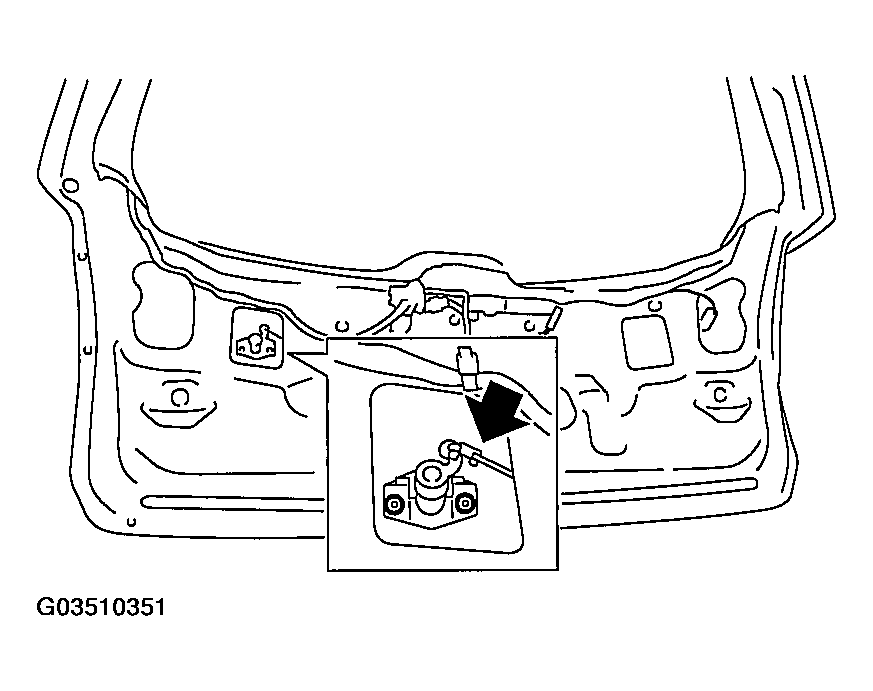

    Fig 1: Removing Nut
    G03510351Courtesy of SUBARU OF AMERICA, INC.
