DTC 41: Abnormal Abs Control Module
DIAGNOSIS:
Faulty ABSCM & H/U.
TROUBLE SYMPTOM:
ABS does not operate.
WIRING DIAGRAM:

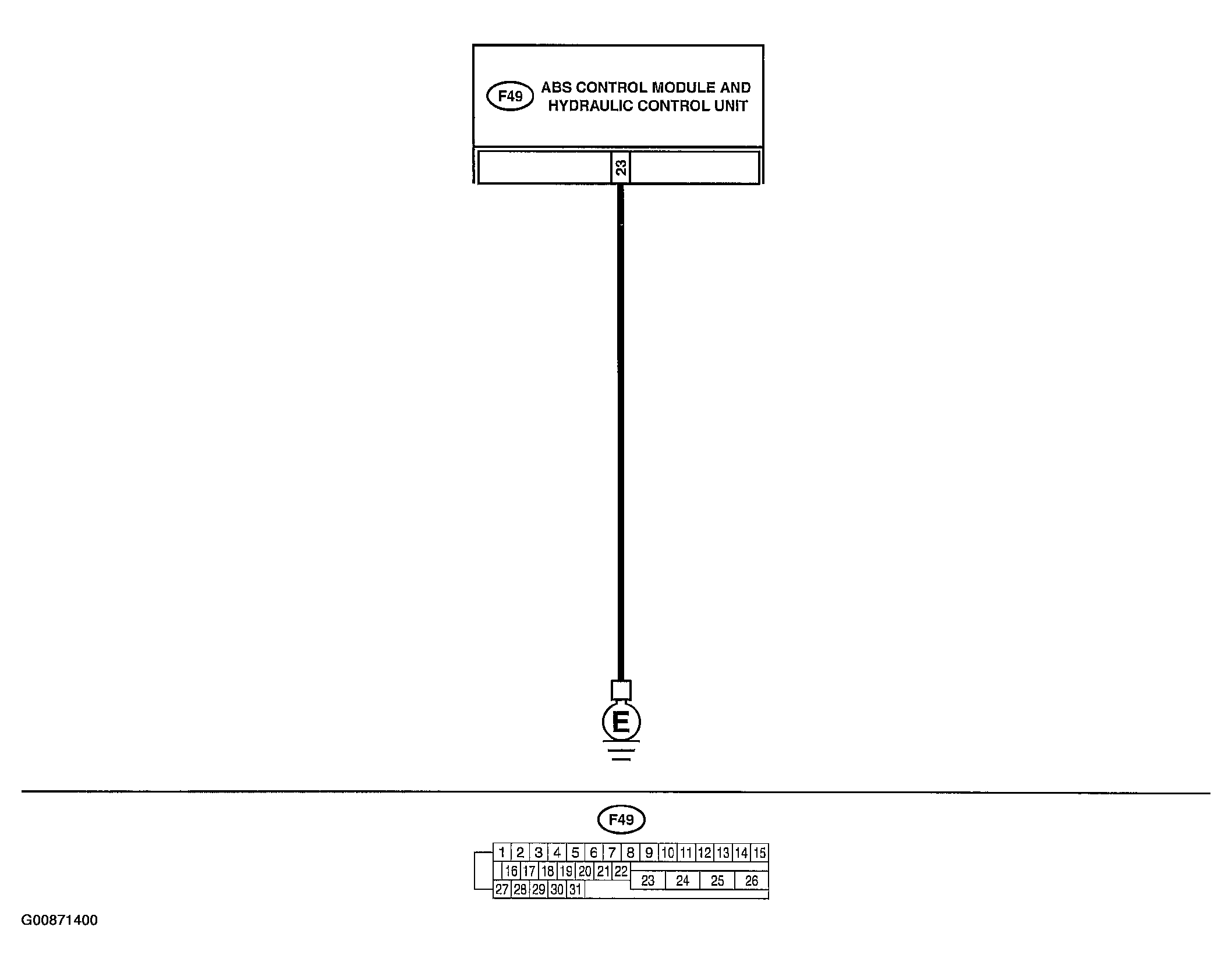

Fig 1: DTC 41 Abnormal ABS Control Module Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.

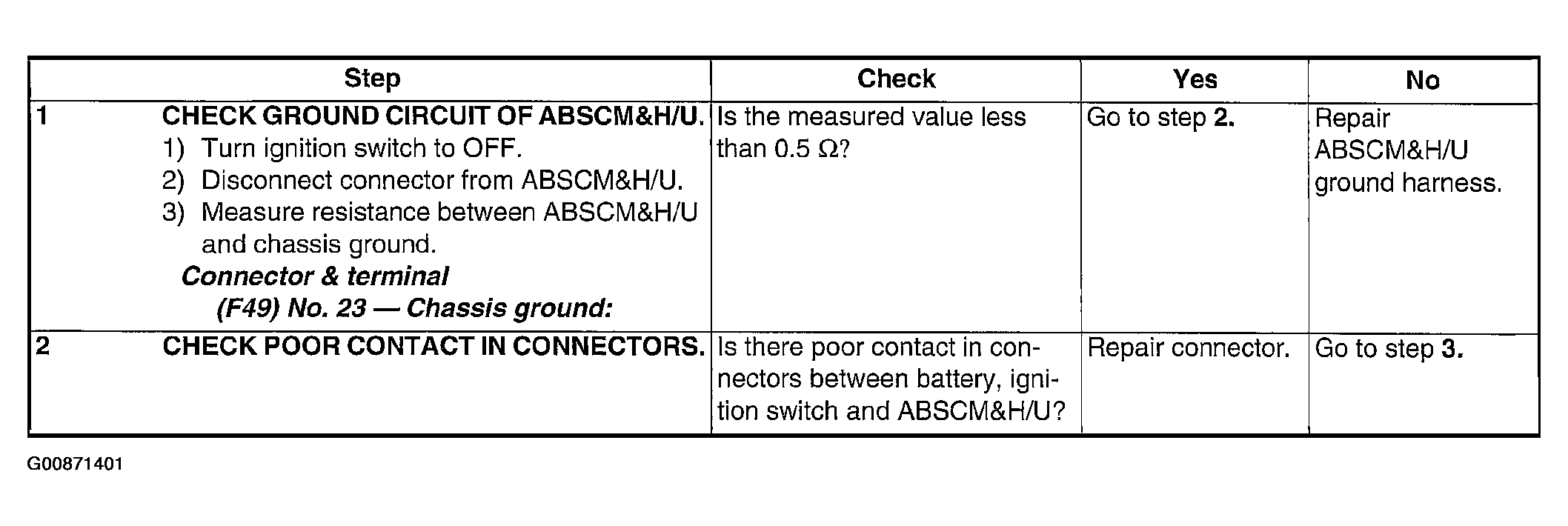

Fig 2: DTC 41 Abnormal ABS Control Module Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

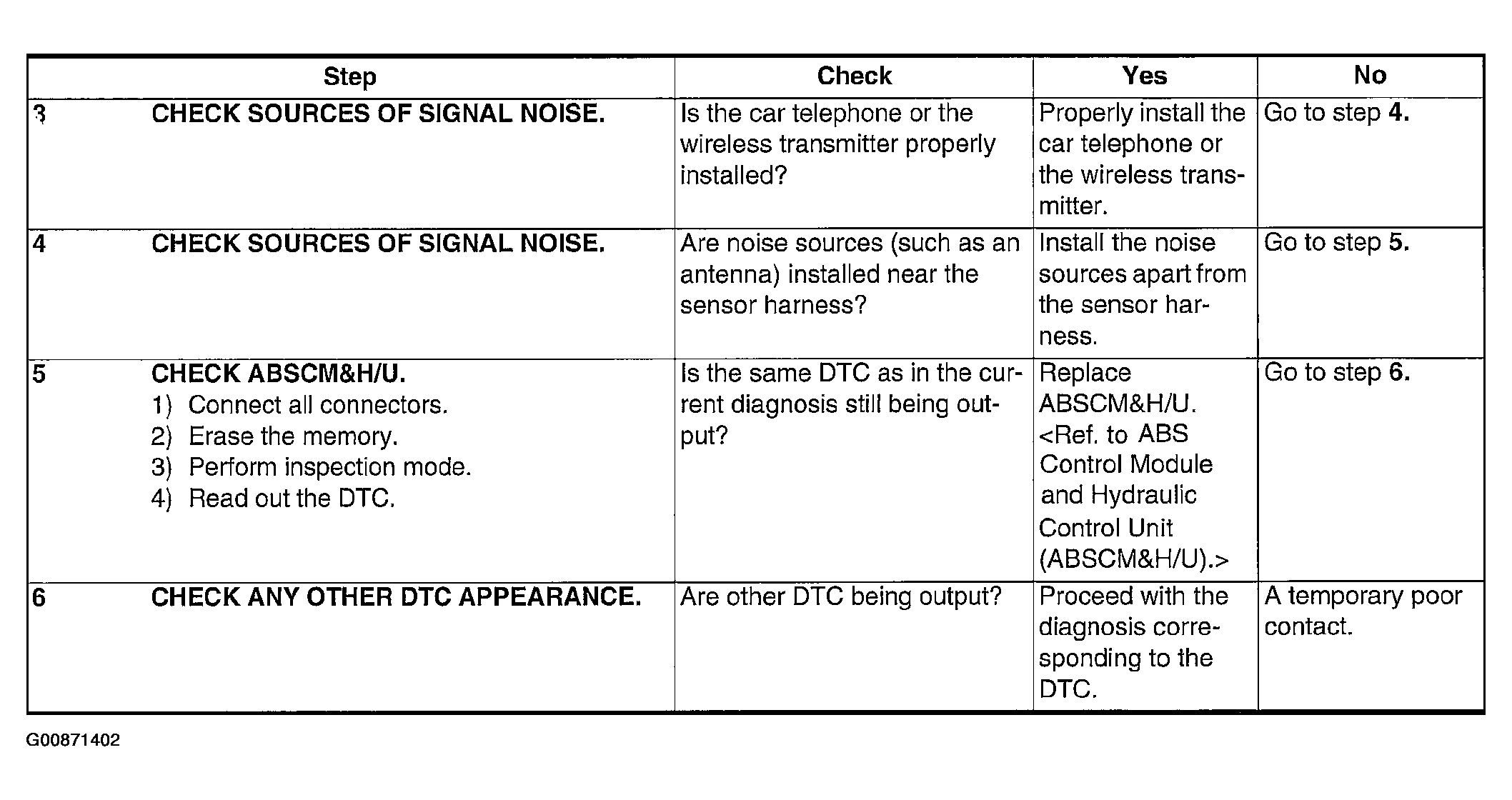

Fig 3: DTC 41 Abnormal ABS Control Module Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
