Anti-Lock Brake Control System - Vehicle Dynamics Control (VDC) (Diagnostics)
>>
Diagnostics Chart with Select Monitor
>>
DTC 45: Incorrect VDC Control Module
>>
Diagnostic Charts
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Charts

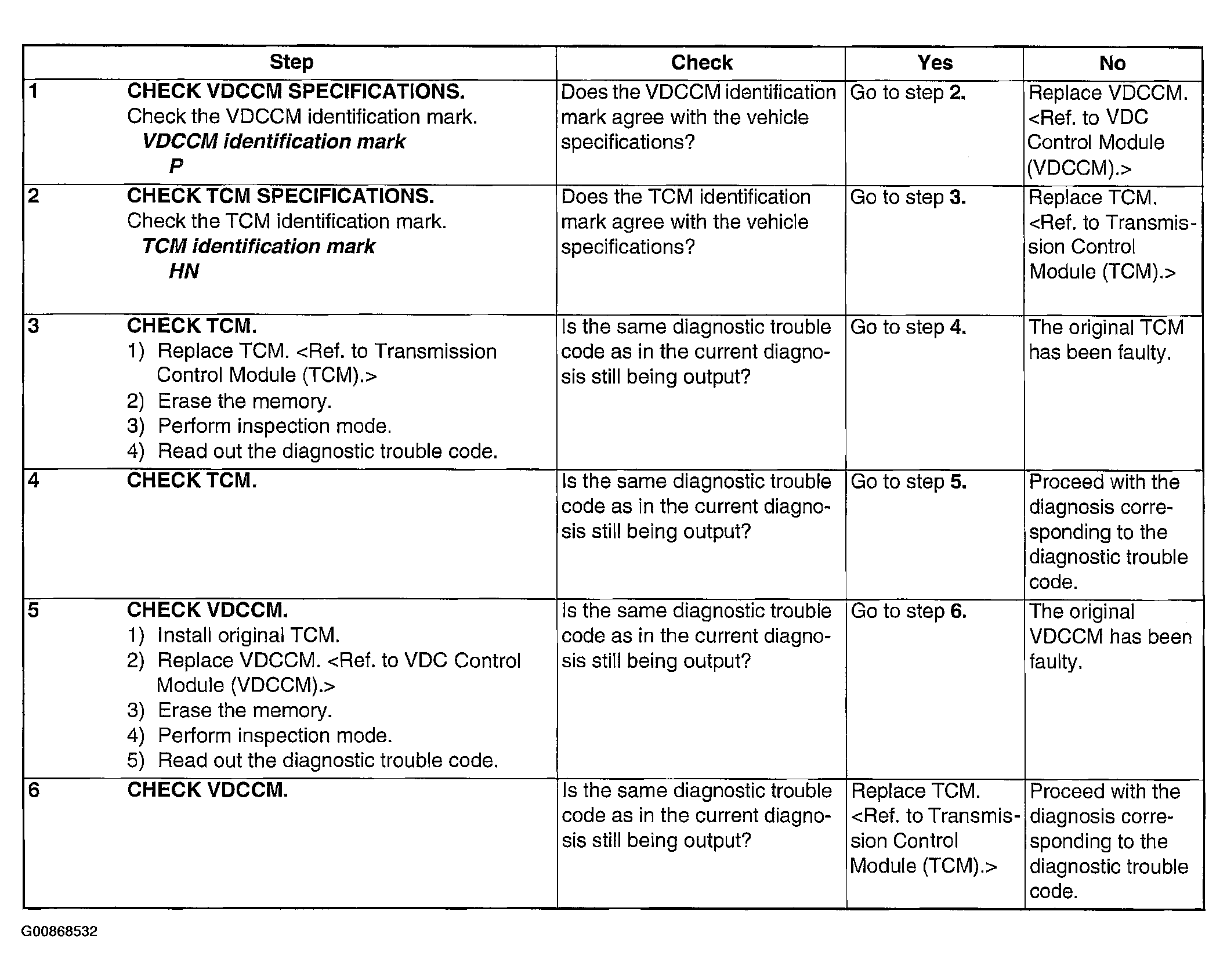

Fig 1: DTC 45 Incorrect VDC Control Module Diagnostic Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
