RH Side

Install in the reverse order of removal.

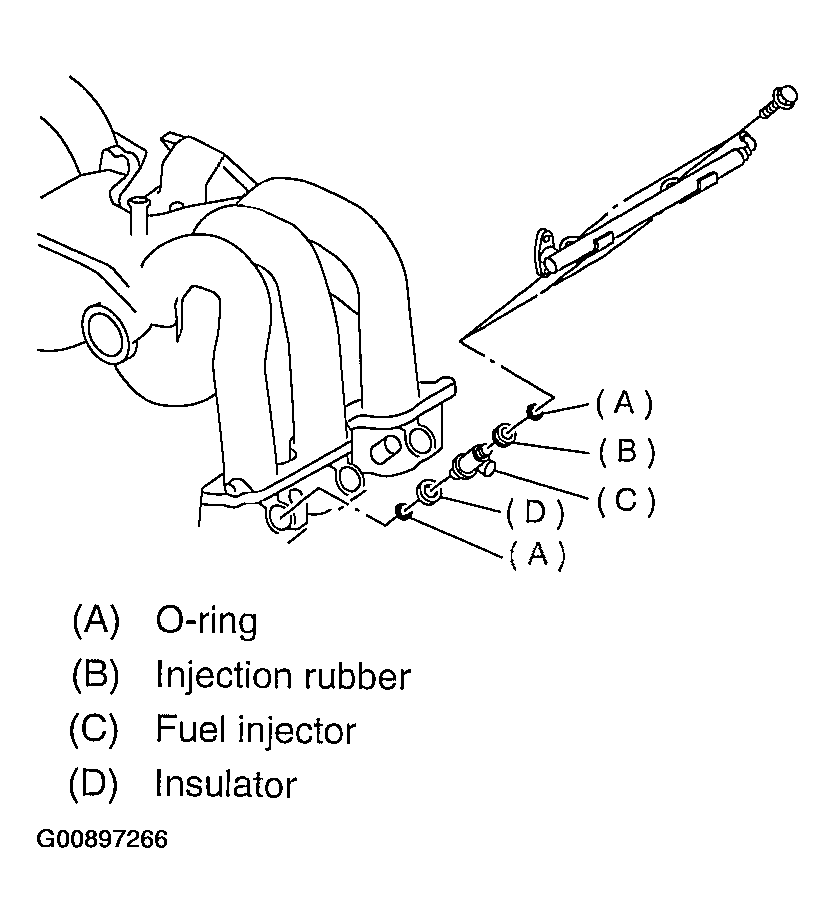

Fig 1: Replacing O-rings

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

1. 19 N.m (1.9 kgf-m, 14 ft-lb)

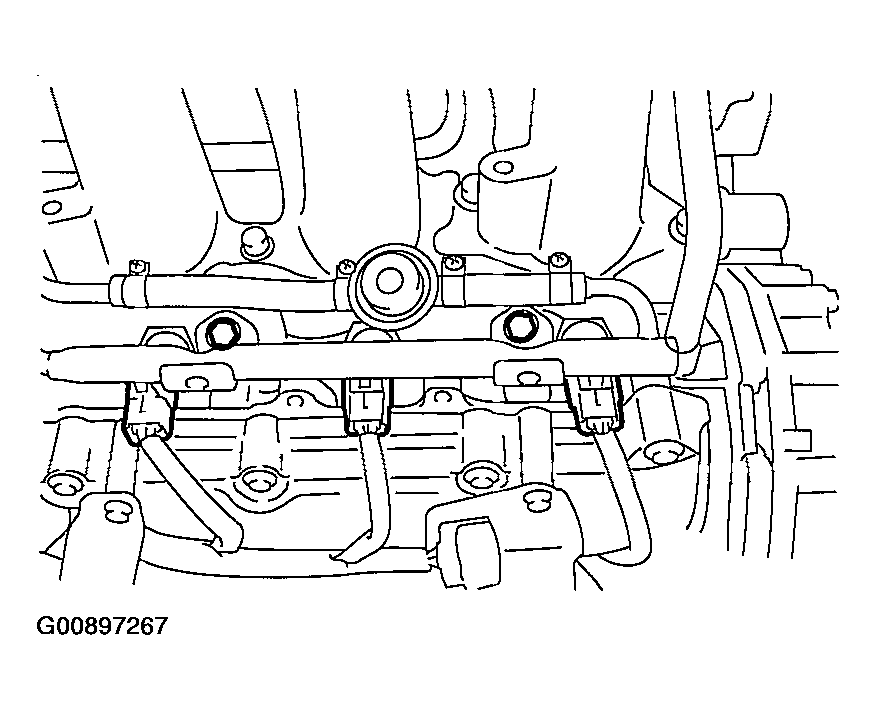

Fig 2: Installing RH Fuel Injector

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

1. 19 N.m (1.9 kgf-m, 14 ft-lb)

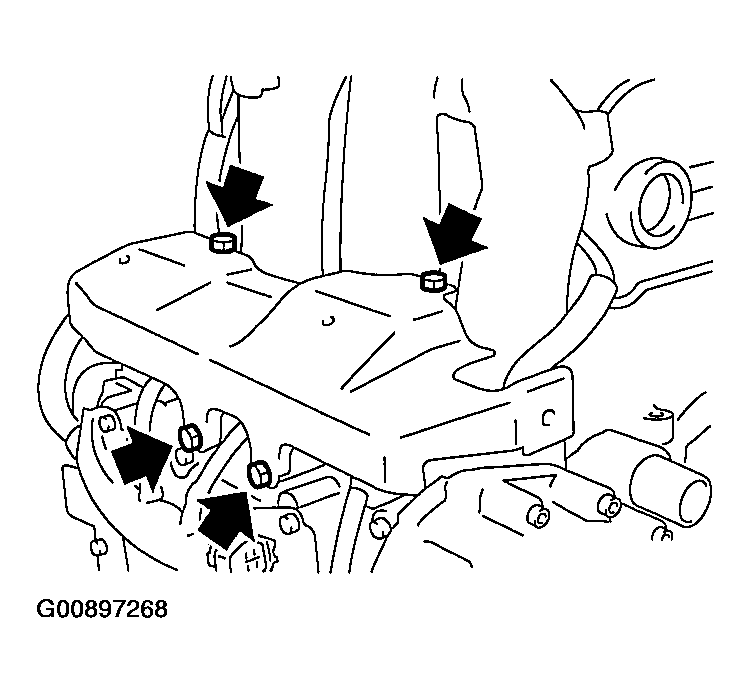

Fig 3: Installing Fuel Pipe Protector

Courtesy of SUBARU OF AMERICA, INC.
